RT22QV011A

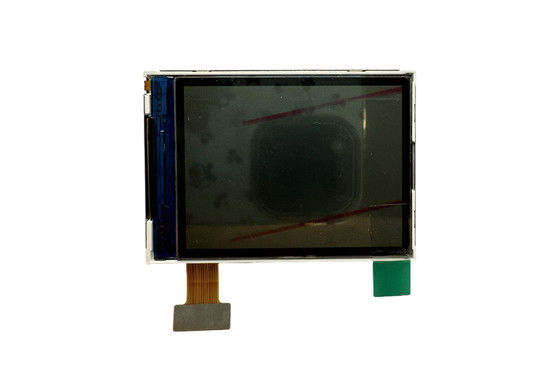

2.2" TFT LCD module with 240x320 resolution for standard supply or customized display assemblies.

Format 2.2" TFT LCD module

Form Portrait rectangle

Resolution 240x320

Interface MCU 16BIT

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT22QV011A
Screen size: 2.2"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: Transreflective TFT
Interface: MCU 16BIT
Brightness: 160cd/㎡
Temperature: -20℃~70℃
Viewing direction: 6:00o'clock
Outline dimension: 40.40(H)×56.48(V)×2.5(T)mm
Active area: 33.84(H)×45.12(V)mm
Driver IC: ST7789V
Response time: 35ms
Contrast ratio: 42
Backlight: 4LEDS
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.4V~3.3V
Power: 280mW

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
