Manufacturing
Automated production for LCD modules and touch display assemblies.

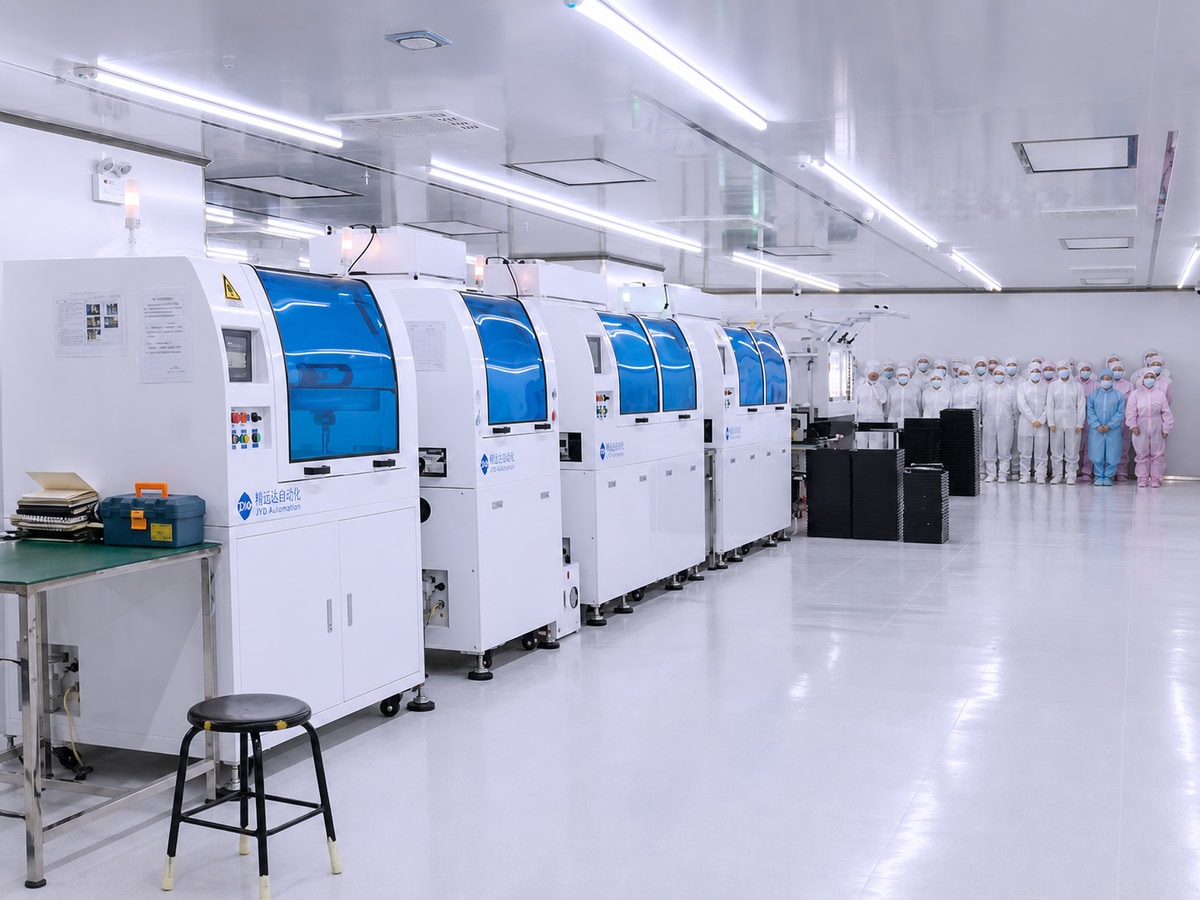

RGH operates a 5,000 m² Class 10,000 clean room facility with dedicated production lines for LCD cutting, cleaning, polarizer pasting, AOI inspection, bonding, backlight assembly, touch-panel lamination, and final testing.
Production lines
The core operations needed for display-module production.
RGH covers the process steps that usually matter in a custom module project: LCD preparation, touch-panel work, bonding, assembly, inspection, and final test.
- Fully automatic LCM lines: two production lines
- Semi-automatic LCM line: one production line
- LCD cutting: two production lines
- LCD cleaning: two production lines
- Polarizer pasting: two production lines
- TP/full lamination: two production lines
- Assembly: three full production lines
- AOI inspection: two production lines

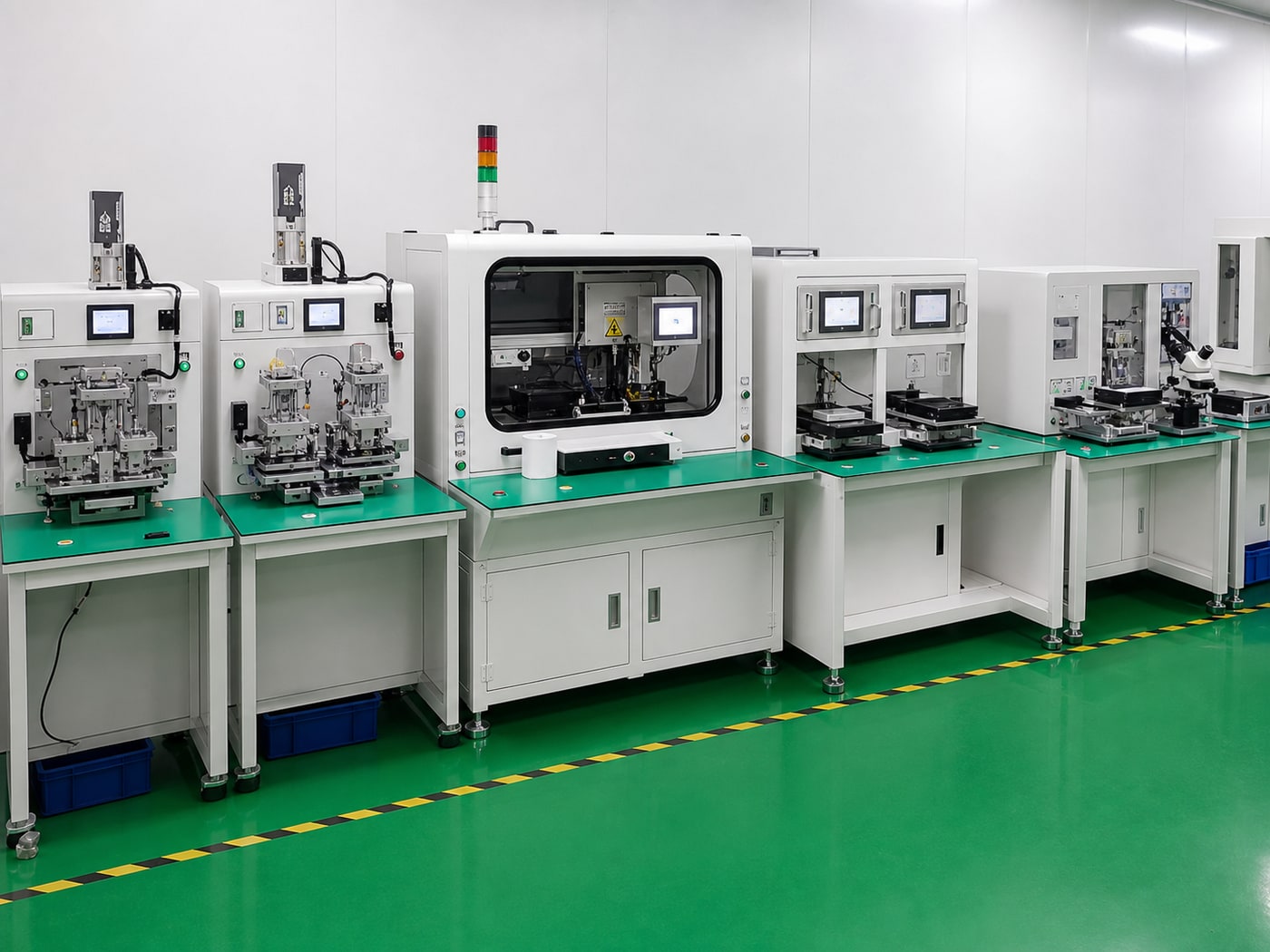

- Bonding: four full production lines
OEM / ODM
Custom display programs from sample build to repeat production.
Production capacity
Modern automatic and semi-automatic production lines support LCD module and touch-display programs.
OEM manufacturing
Custom LCD screens can be produced for customer brands and product platforms.
ODM design
Engineering teams support customized LCD design, circuit design, and prototype production.
Engineering support
R&D covers structural design, software design, hardware design, sample builds, and test-program design.
Process management
Quality and environmental systems support controlled project execution from sampling through mass production.
Core equipment
Machine capabilities, cycle targets, and capacity references.
| Equipment | Applicable size | Cycle time | Capacity | Accuracy / note |
|---|---|---|---|---|
| LCD cutting machine | 0.96-15 inches | <=3.5 seconds per piece | 3,000 pcs/hour | Conveyance accuracy +/-0.5um |
| LCD cleaning machine | 0.96-15 inches | <=3.5 seconds per piece | 3,000 pcs/hour | Water drop contact angle <=15 degrees |
| LCD pasting machine | 0.96-7 inches | <=1.5 seconds per piece | 1,200-1,500 pcs/hour | Automated polarizer pasting process |
| AOI inspection machine | 1.44-7 inches | <=1.5 seconds per piece | 1,200-1,500 pcs/hour | Automatic inspection after pasting |
| LCD feeder | 0.96-15 inches | <=3.5 seconds per piece | 1,000 pcs/hour | Automatic feeding and positioning |
| LCD terminal washer | 0.96-15 inches | <=3.5 seconds per piece | 1,000 pcs/hour | Terminal cleaning process |

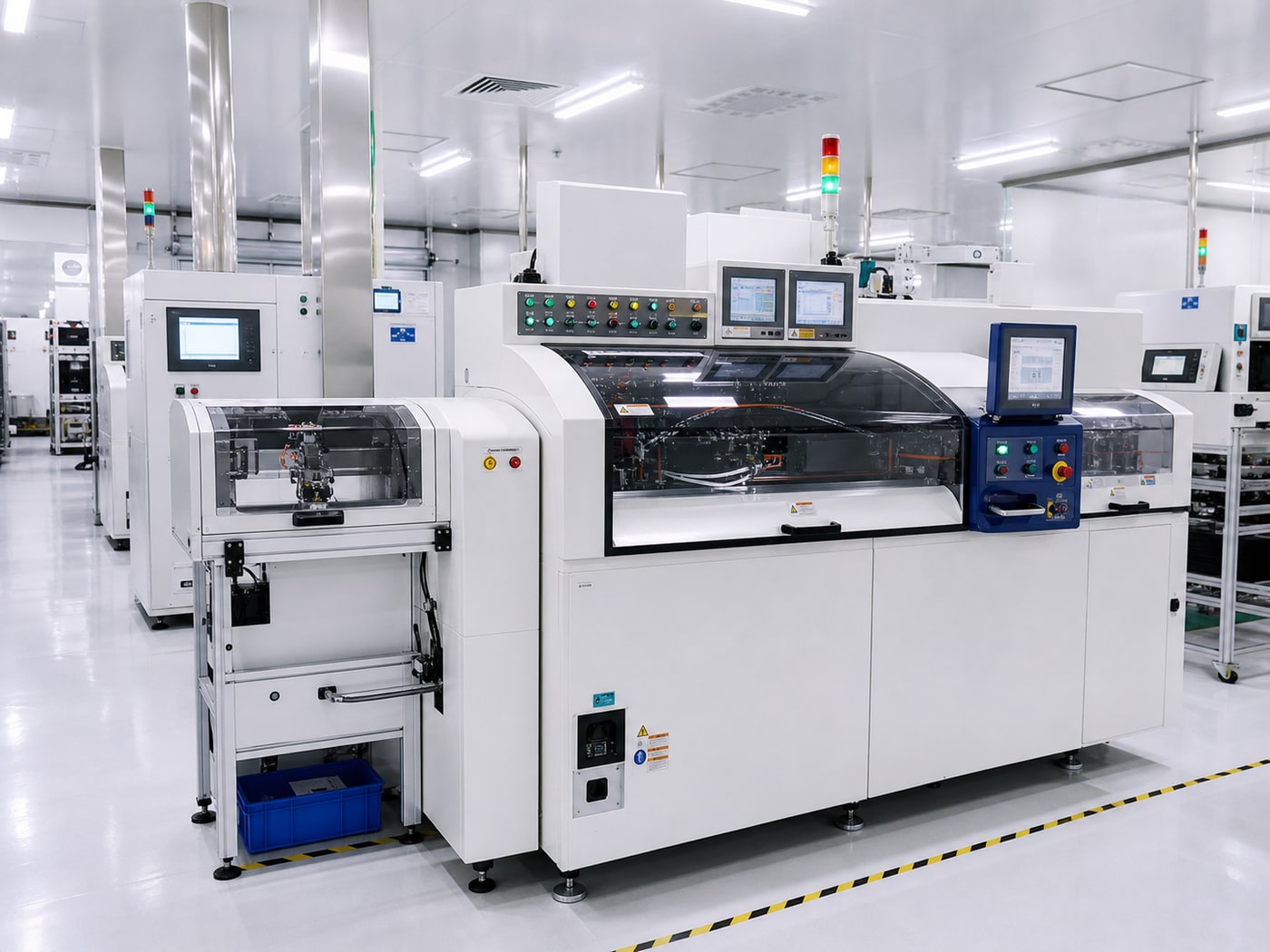

| COG equipment | 0.96-7 inches | <=3.5 seconds per piece | 1,000 pcs/hour | Press precision +/-4um |
| FOG equipment | 0.96-7 inches | <=3.5 seconds per piece | 1,000 pcs/hour | X +/-15um, Y +/-10um |
| FPC feeder | W 5mm x L 8mm to W 60mm x L 150mm | <=3.5 seconds per piece | 1,000 pcs/hour | +/-1um |
| Backlight assembly machine | 0.96-7 inches | <=3.5 seconds per piece | 1,100 pcs/hour | +/-20um |
| Soldering machine | 0.96-8 inches | Process dependent | 1,000 pcs/hour | Alignment +/-0.1mm, welding yield 99.5% |
| Dispensing machine | 0.96-7 inches | <=4 seconds per piece | 1,000 pcs/hour | Adhesive thickness +/-0.05mm |
| TP FPC/function piece binding | 0.96-7 inches | <=3.5 seconds per piece | 1,000 pcs/hour | X +/-15um, Y +/-10um |
| TP full lamination | 0.96-7 inches | <=5 seconds per piece | 600 pcs/hour | X/Y +/-0.05um |
| Protective film attaching machine | 0.96-7 inches | <=4 seconds per piece | 800 pcs/hour | X/Y +/-0.2mm |
Process flow
From glass processing to final test and packaging.
Core process flow
- Cutting
- Bonding
- Assembling
- Pasting
- Plying-up
LCD cutting flow
- Large board appearance inspection
- Large plate cutting
- Cutting segment
- Sonic cleaning
- Glass drying
- Electrical inspection
- Appearance inspection
- Package inspection
- Storage
Patch and bond flow
- Automatic loading
- COG binding
- FOG binding
- FOG electrical test
- Deaeration
- Appearance inspection
- 3-in-1 automatic dispensing
- Receiving material
Backlight assembly flow
- BL automatic loading
- FOG/BL automatic assembly
- BL solder
- OQC electrical test
- Visual inspection

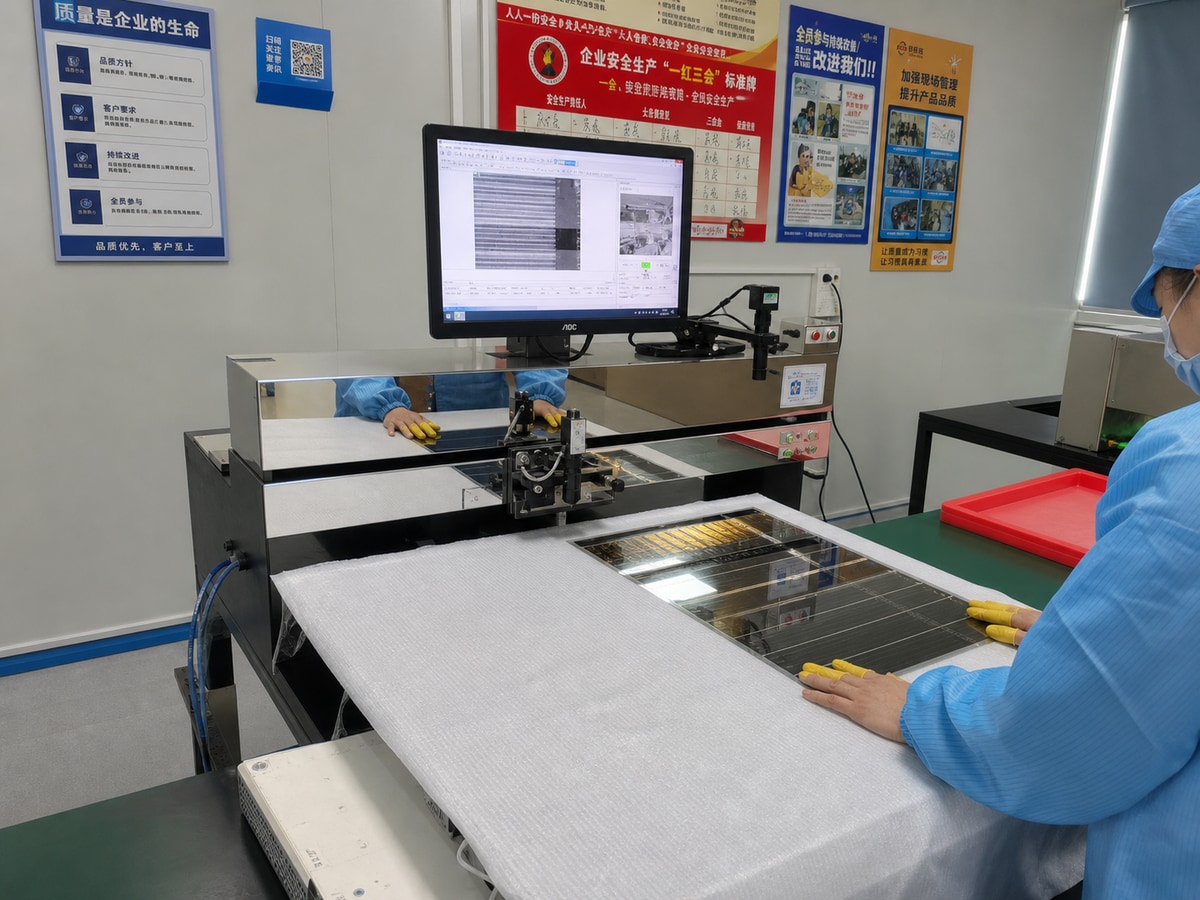

- Product packaging
- Finished product storage
Full fit process
- Function piece binding
- Cover fit
- TP visual inspection
- UV photo curing
- OQC visual inspection
- Finished function test
R&D process
Engineering workflow for custom module development.
- Customer requirements and application conditions
- Design evaluation form and drawing confirmation
- Project approval and sourcing review for LCD, backlight, touch panel, and FPC
- Sample material application and prototype production
- Sample debugging, inspection, and customer acknowledgement
- BOM, production documents, and mass-production test data release
Facility & Equipment
Production evidence without the brochure wall.
