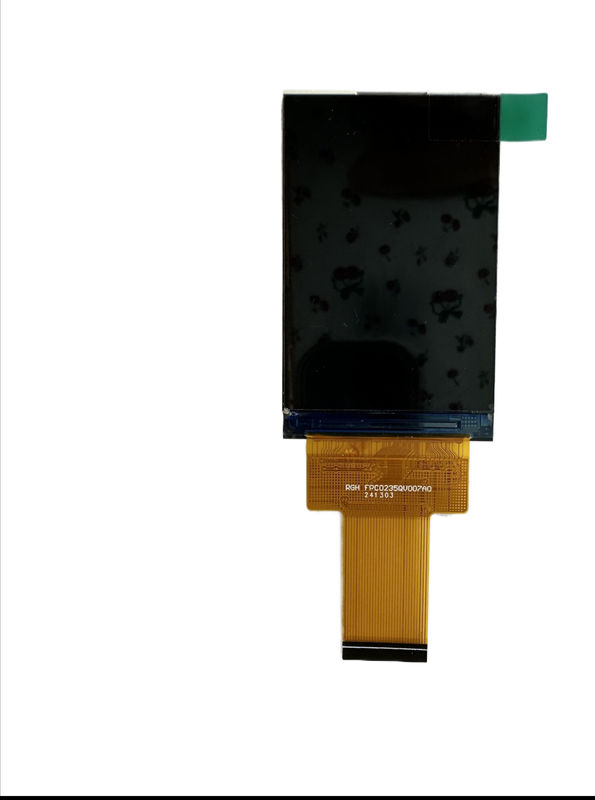

RT235QV007A 2.35" TFT LCD module

2.35" TFT LCD module with 320x480 resolution for standard supply or customized display assemblies.

Format 2.35" TFT LCD module

Form Portrait rectangle

Resolution 320x480

Interface RGB + SPI

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT235QV007A
Screen size: 2.35"
Display form: Portrait rectangle
Resolution: 320x480
Display mode: Transmissive TFT
Interface: RGB + SPI
Brightness: 700cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 37.52(H)×59.78(W)×2.18(T)mm
Active area: 33.12(W)×49.68(H)mm
Driver IC: ST7701S
Response time: 45ms
Contrast ratio: 1500
Backlight: 5LEDs
Pixel pitch: 320(RGB)×48
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.3V

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
