RT24QV129A

2.4" TFT LCD module with 204x240 resolution for standard supply or customized display assemblies.

Format 2.4" TFT LCD module

Form Portrait rectangle

Resolution 204x240

Interface MCU 16bit

Compare catalog

RT24QV129A display module

Core specification

Engineering snapshot.

Model: RT24QV129A
Screen size: 2.4"
Display form: Portrait rectangle
Resolution: 204x240
Display mode: Transreflective TFT
Interface: MCU 16bit
Brightness: 160 cd/m²
Temperature: -30°C to 80°C operating; -30°C to 80°C storage
Viewing direction: 10:00 o'clock
Outline dimension: 42.72(H) X 60.16(V) X2.55 (T)
Active area: 36.72(H) X48.96 (V)
Response time: 25ms
Backlight: 4LEDS
Logic voltage: 2.5V-3.3V

Product views

Front and back module views.

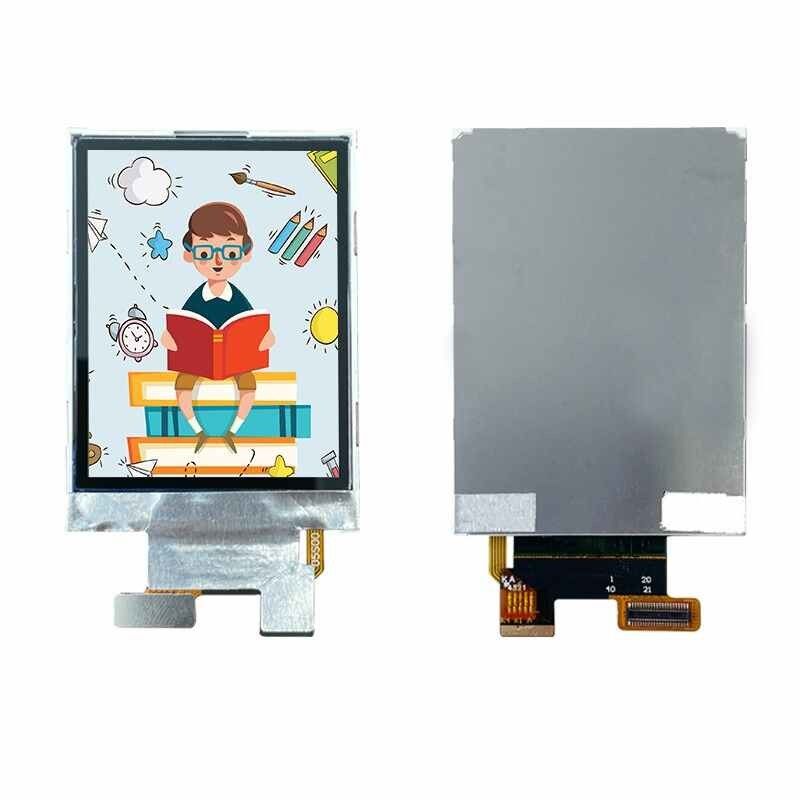

RT24QV129A Front view

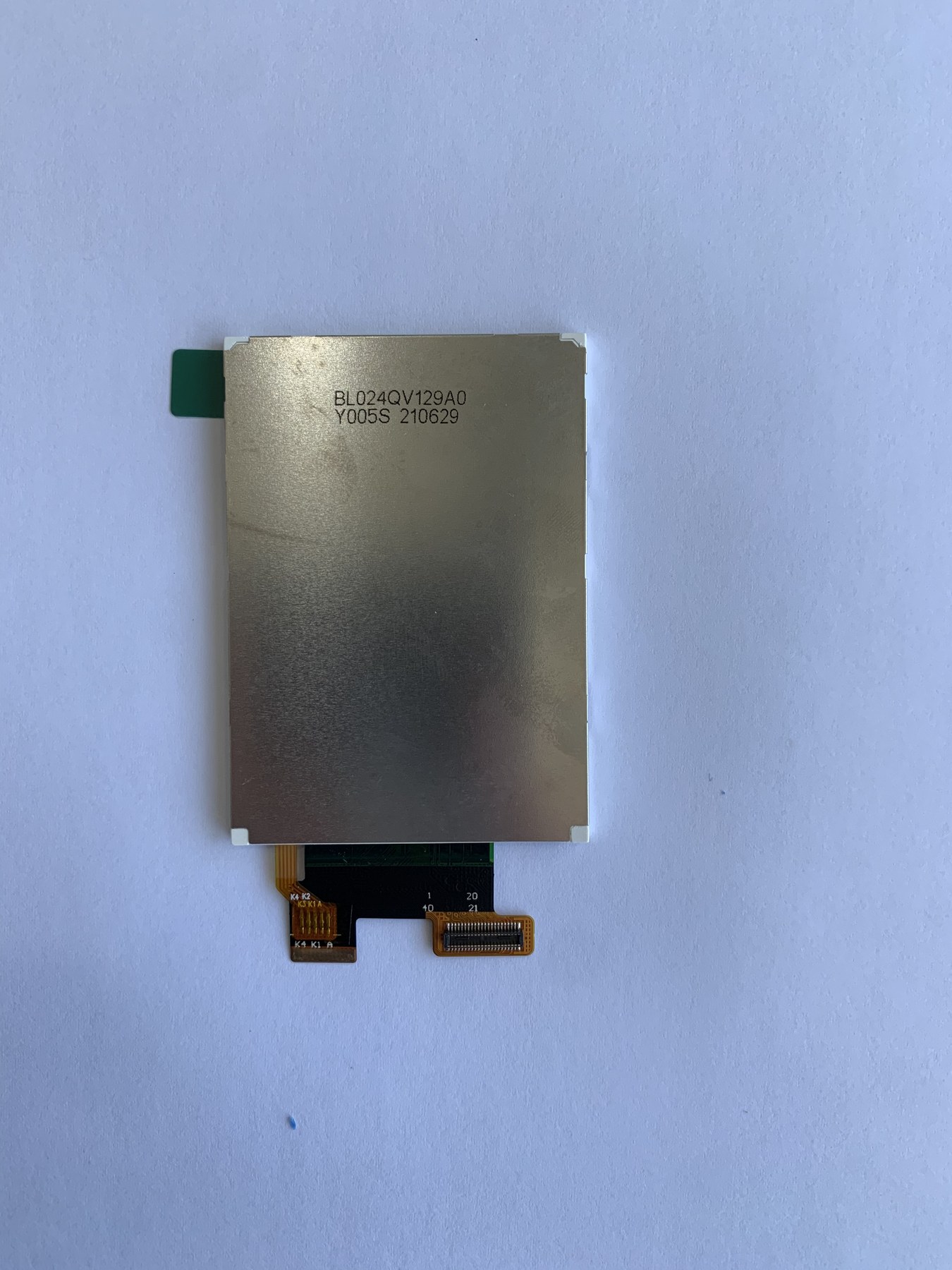

RT24QV129A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
