RT24QV197B

2.4" TFT LCD module with 240x320 resolution for standard supply or customized display assemblies.

Format 2.4" TFT LCD module

Form Portrait rectangle

Resolution 240x320

Interface MCU 8BIT

Compare catalog

RT24QV197B display module

Core specification

Engineering snapshot.

Model: RT24QV197B
Screen size: 2.4"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: Transmissive TFT
Interface: MCU 8BIT
Brightness: 280cd/㎡
Temperature: -10℃~60℃
Viewing direction: All o'clock
Outline dimension: 40.44(H)×57.00(V)×2.1(T)mm
Active area: 36.72(H)×48.96(V)mm
Driver IC: NV3030B
Response time: 35ms
Contrast ratio: 1200
Backlight: 4LEDS
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 24pins
Logic voltage: 2.5V~3.3V
Power: 280mW

Product views

Front and back module views.

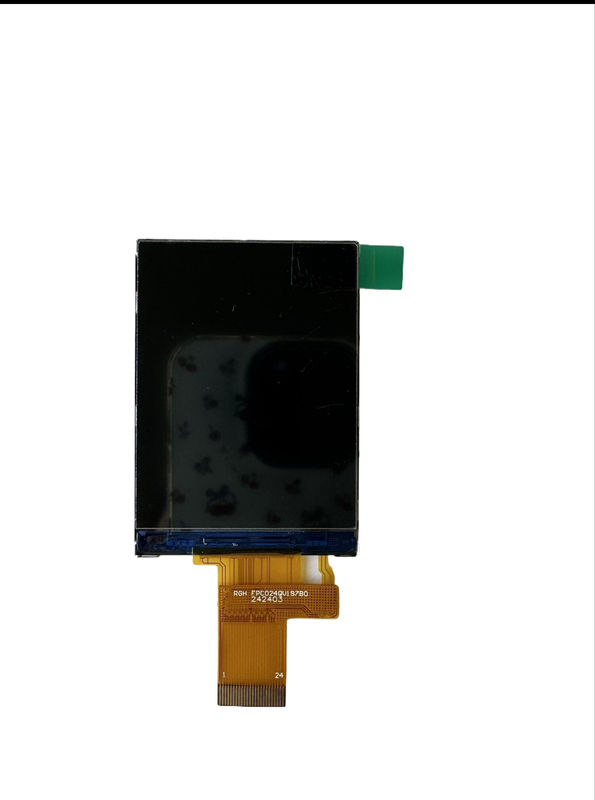

RT24QV197B Front view

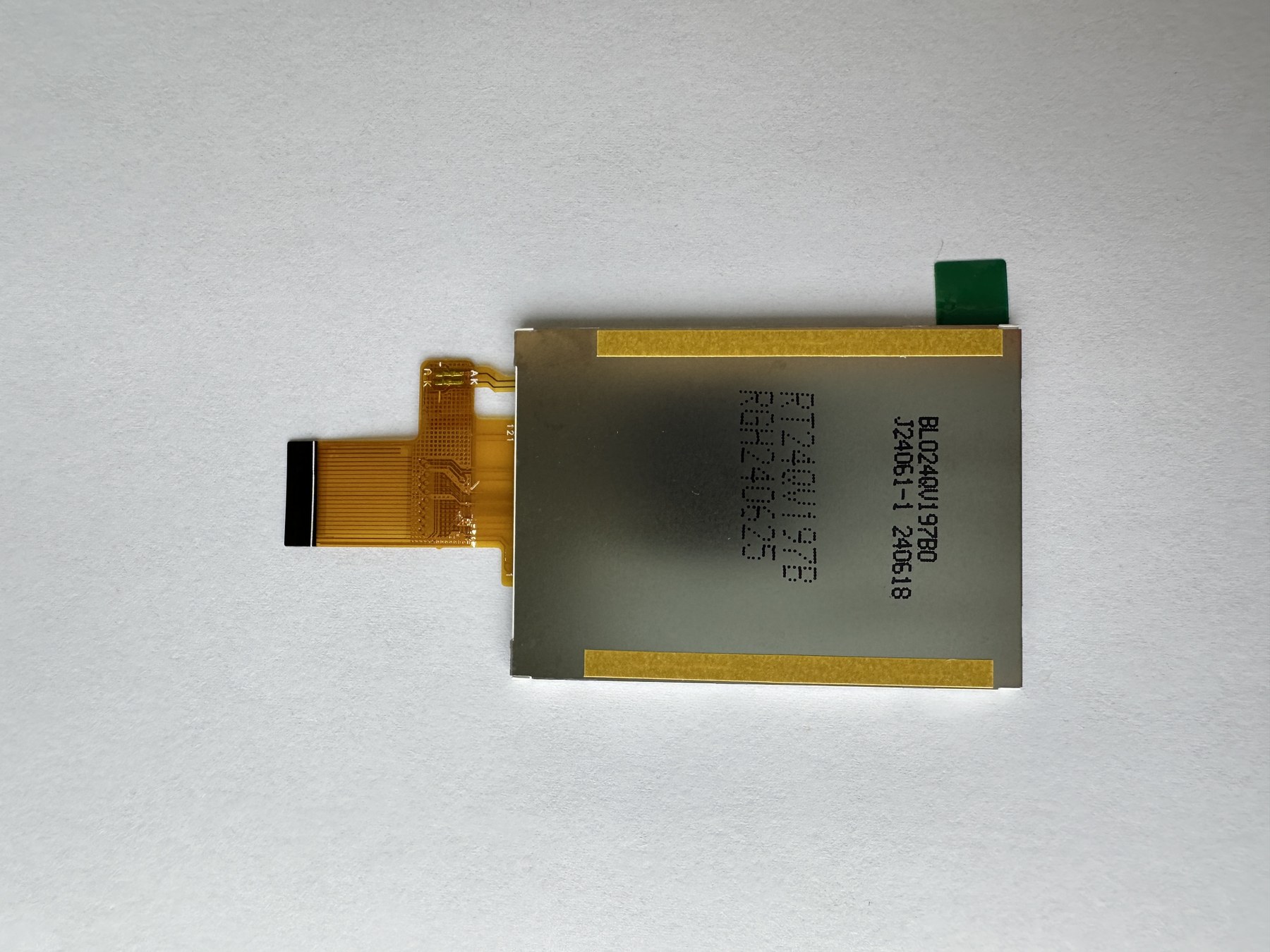

RT24QV197B Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
