RT34WV003A

3.4" TFT LCD module with 480x480 resolution for standard supply or customized display assemblies.

Format 3.4" TFT LCD module

Form Compact rectangle

Resolution 480x480

Interface MIPI

Touch No

Compare catalog

RT34WV003A display module

Core specification

Engineering snapshot.

Model: RT34WV003A
Screen size: 3.4"
Display form: Compact rectangle
Resolution: 480x480
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 550cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 64.62(H)×68.19(V)×2.1(T)mm
Active area: 60.48(H)×60.48(V)mm
Driver IC: ST7701SN-G5-1
Response time: 30ms
Contrast ratio: 1000
Backlight: 8LEDs
Pixel pitch: 480(RGB)×480
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 20pins
Logic voltage: 2.5V~3.6V
Power: 560mW

Product views

Front and back module views.

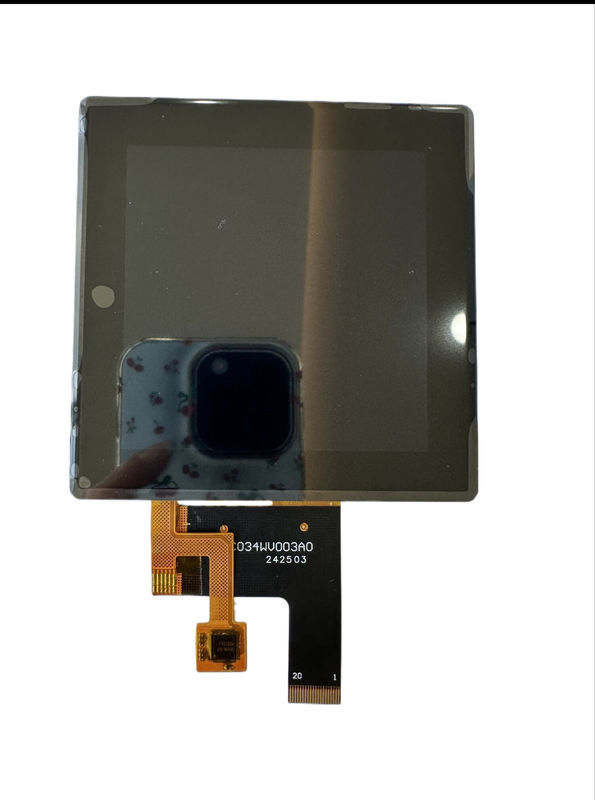

RT34WV003A Front view

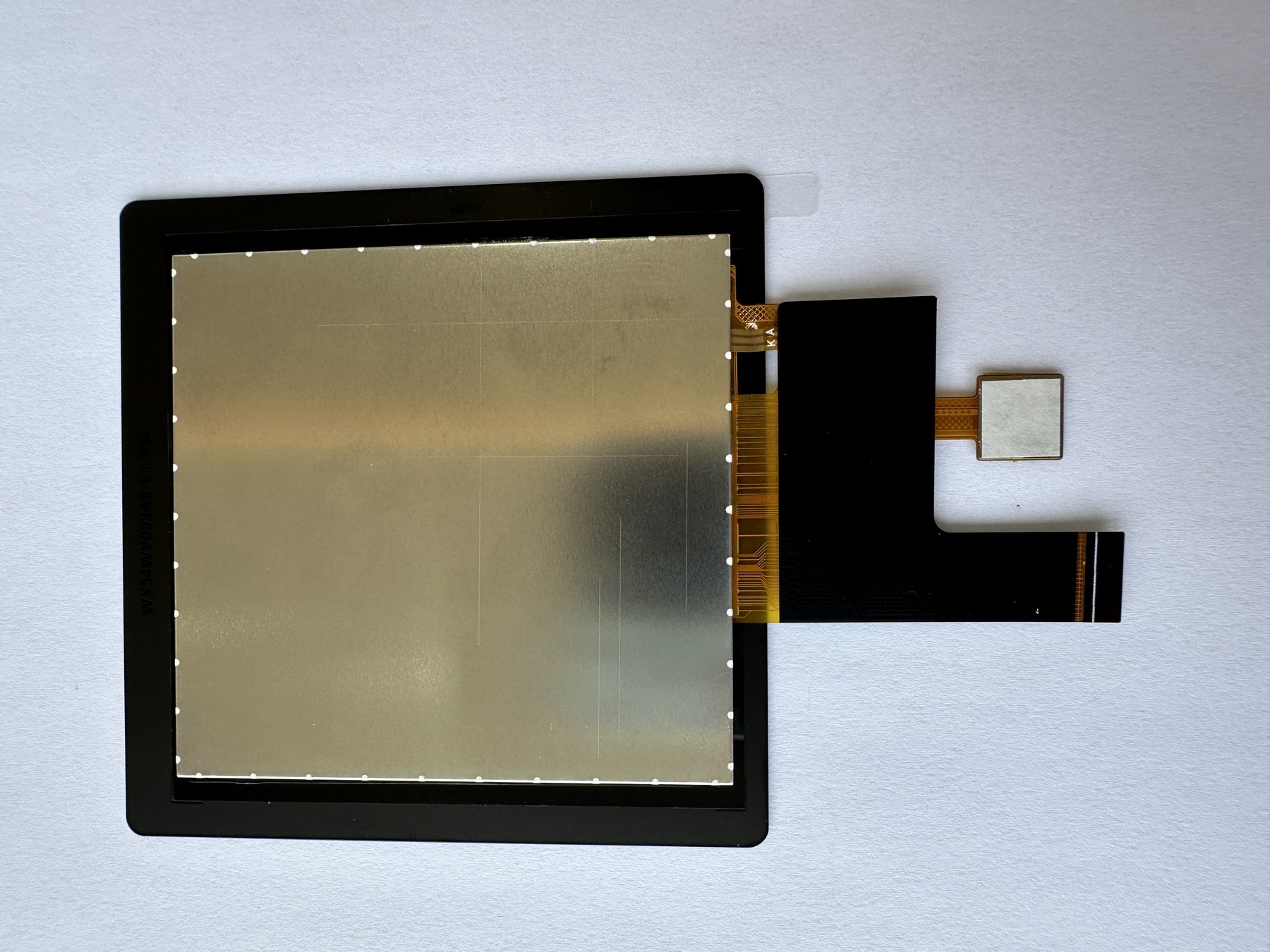

RT34WV003A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
