RT43WH029B

4.3" TFT LCD module with 480x272 resolution for standard supply or customized display assemblies.

Format 4.3" TFT LCD module

Form Wide rectangle

Resolution 480x272

Interface RGB 24BIT

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT43WH029B
Screen size: 4.3"
Display form: Wide rectangle
Resolution: 480x272
Display mode: Transmissive TFT
Interface: RGB 24BIT
Brightness: 300cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 105.40(H)×67.10(V)×2.90(T)mm
Active area: 95.04(H)×53.86(V)mm
Driver IC: ST7282A
Response time: 30ms
Contrast ratio: 1000
Backlight: 8LEDs
Pixel pitch: 480(RGB)×272
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 700mW

Product views

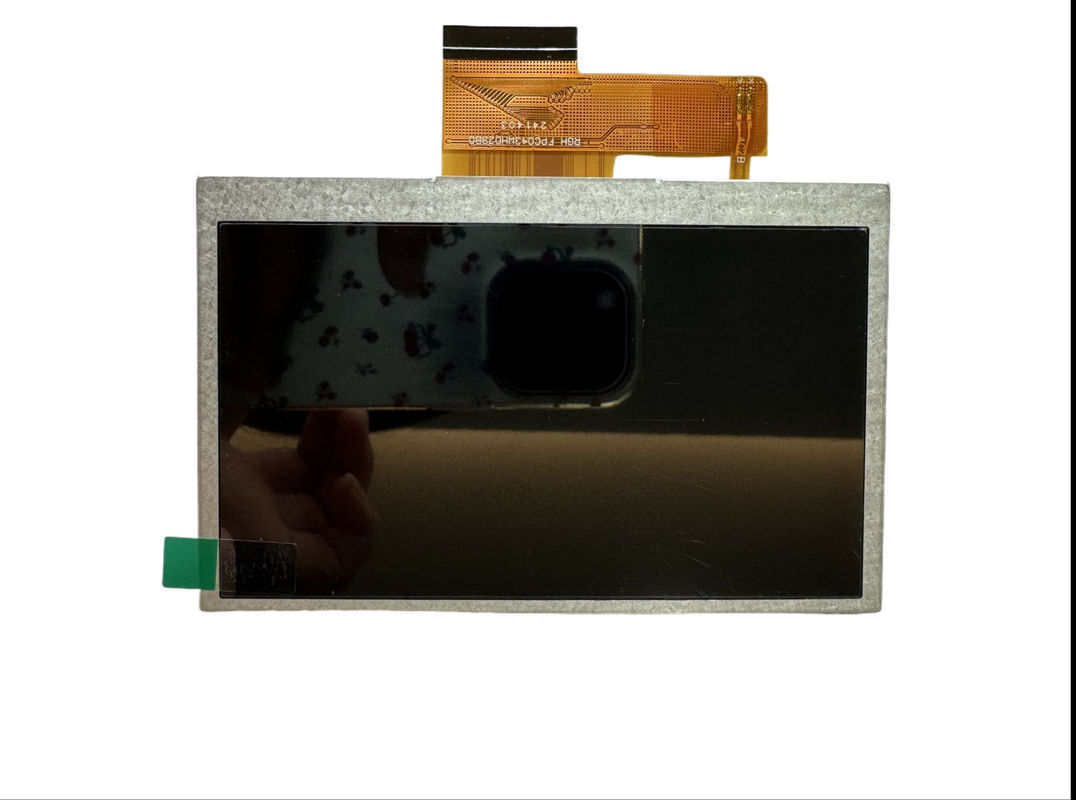

Front and back module views.

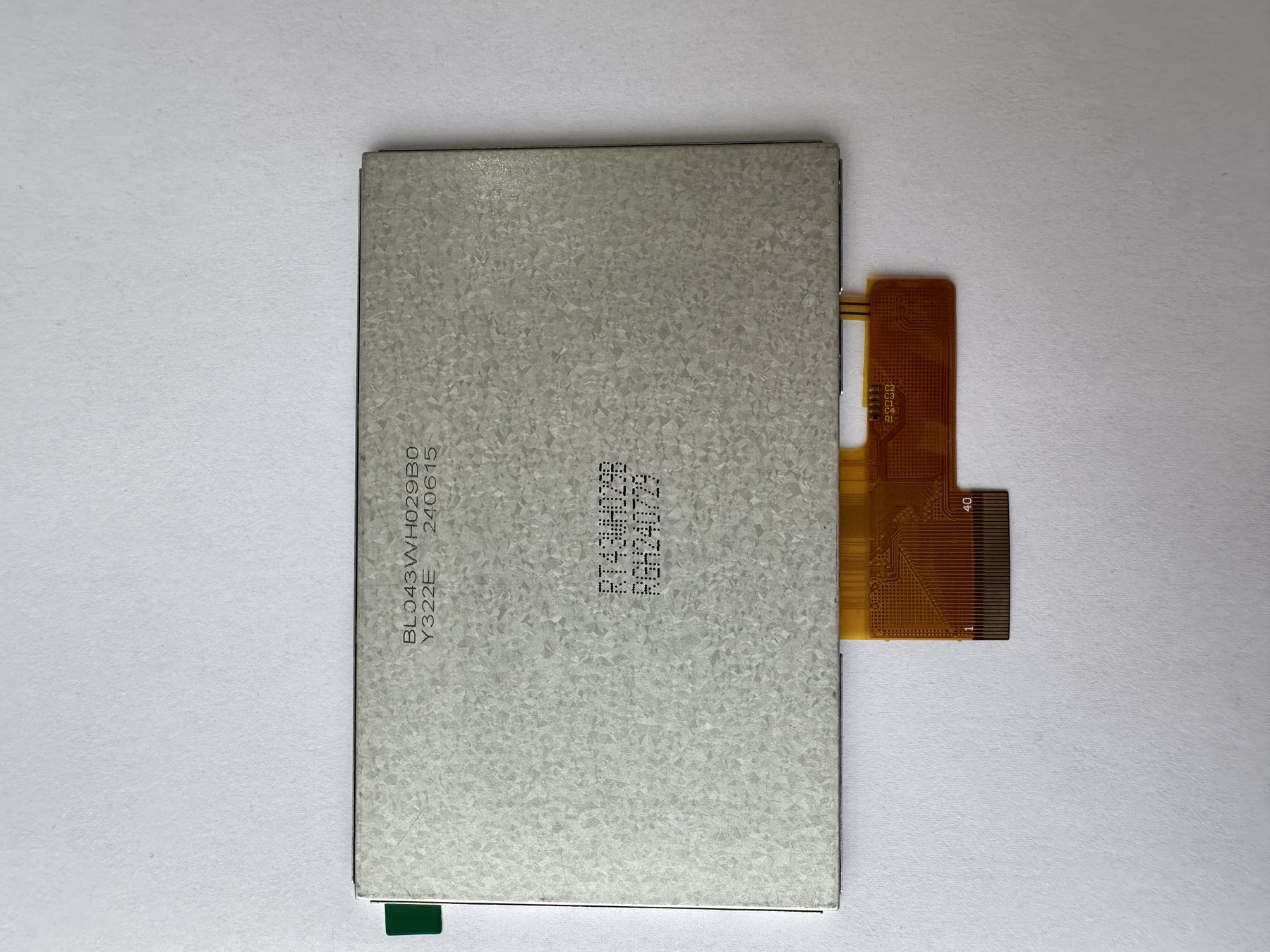

RT43WH029B Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
