E-paper displays

RSE0266N03-A0

2.66" E-paper with 152x296 resolution for standard supply or customized display assemblies.

Format 2.66" E-paper

Form E-paper

Resolution 152x296

Interface SPI

Touch No

Compare catalog

RSE0266N03-A0 display module

Core specification

Engineering snapshot.

Model: RSE0266N03-A0
Screen size: 2.66"
Display form: E-paper
Resolution: 152x296
Display mode: Reflective E-Paper
Interface: SPI
Touch: No
Temperature: 0℃~40℃
Viewing direction: ALL O'LCOCK
Outline dimension: 36.3(H)×71.82(V)×0.95(T)mm
Active area: 30.70(H)×60.09(V)
Driver IC: SSD1680
Contrast ratio: 15
Pixel pitch: 152×296
Pixel configuration: Rectangle
Weight: 5g
Pin count: 24pins
Logic voltage: 2.5V~3.7V

Product views

Front and back module views.

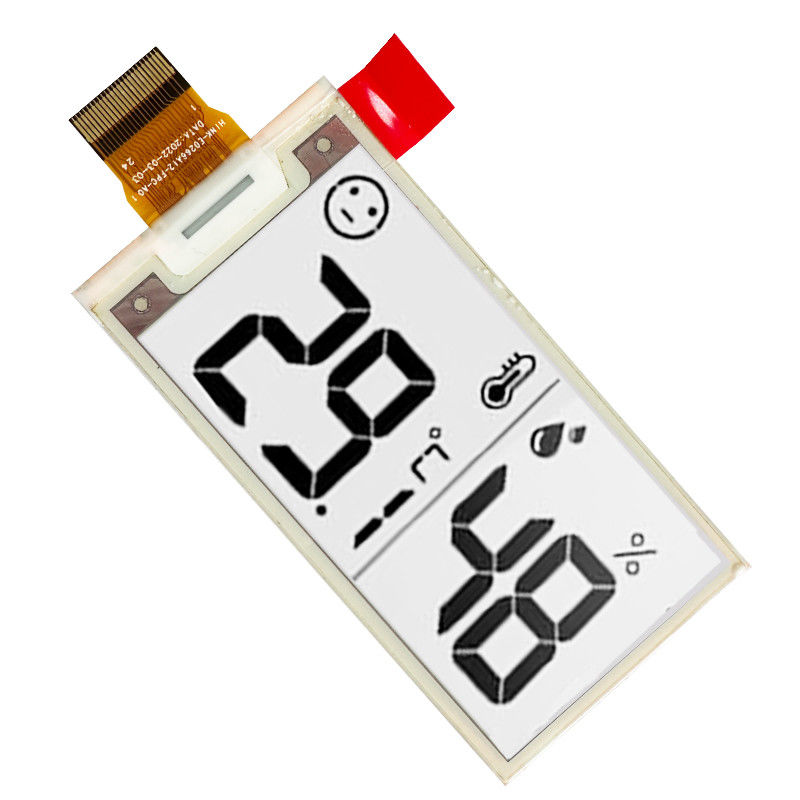

RSE0266N03-A0 Front view

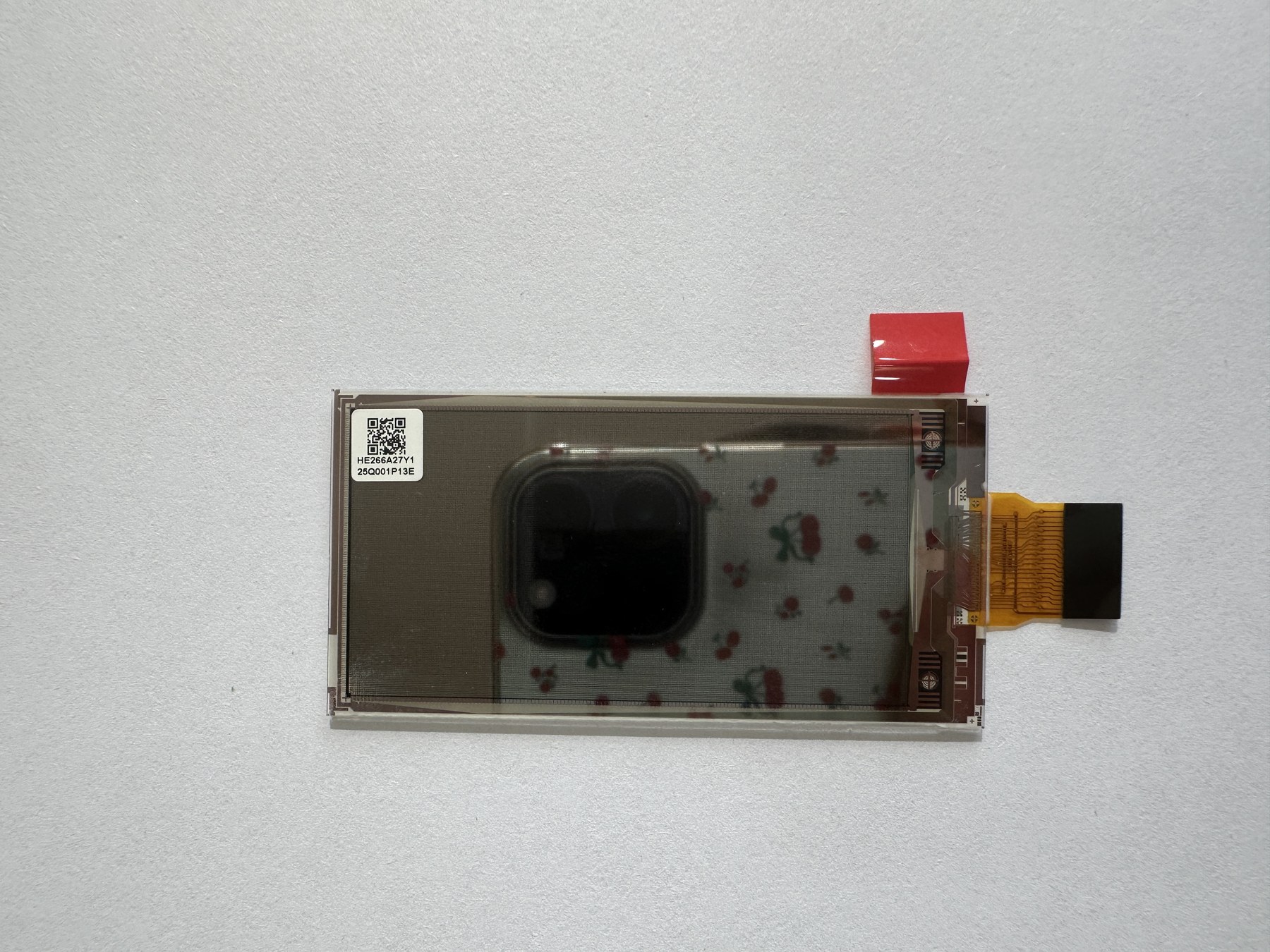

RSE0266N03-A0 Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
