SE0290N01A0

2.9" E-paper with 128x296 resolution for standard supply or customized display assemblies.

Format 2.9" E-paper

Form E-paper

Resolution 128x296

Interface SPI

Touch No

Compare catalog

SE0290N01A0 display module

Core specification

Engineering snapshot.

Model: SE0290N01A0
Screen size: 2.9"
Display form: E-paper
Resolution: 128x296
Display mode: Reflective EPD
Interface: SPI
Brightness: Reflective 30%~35%
Touch: No
Viewing direction: All o'clock
Outline dimension: 36.70(H)×79.00(V)×1.14(T)mm
Active area: 29.10(H) x 66.85(V) mm
Driver IC: Built-in
Contrast ratio: 8:1~10:1
Pixel pitch: 128*296
Pixel configuration: Rectangle
Display color: 2-bit
Pin count: 24 pins
Logic voltage: 2.4V~3.3V
Power: Ultra low

Product views

Front and back module views.

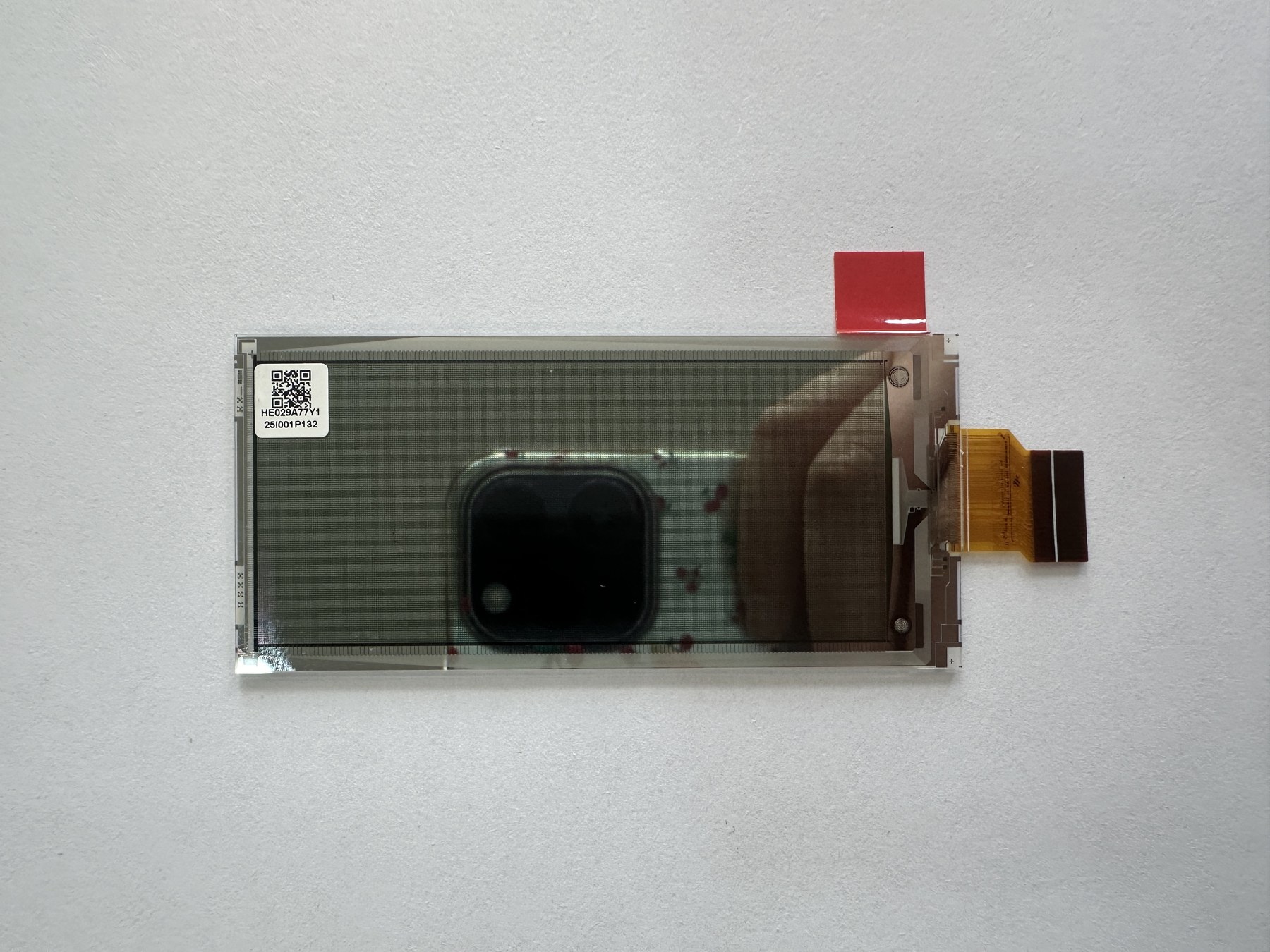

SE0290N01A0 Front view

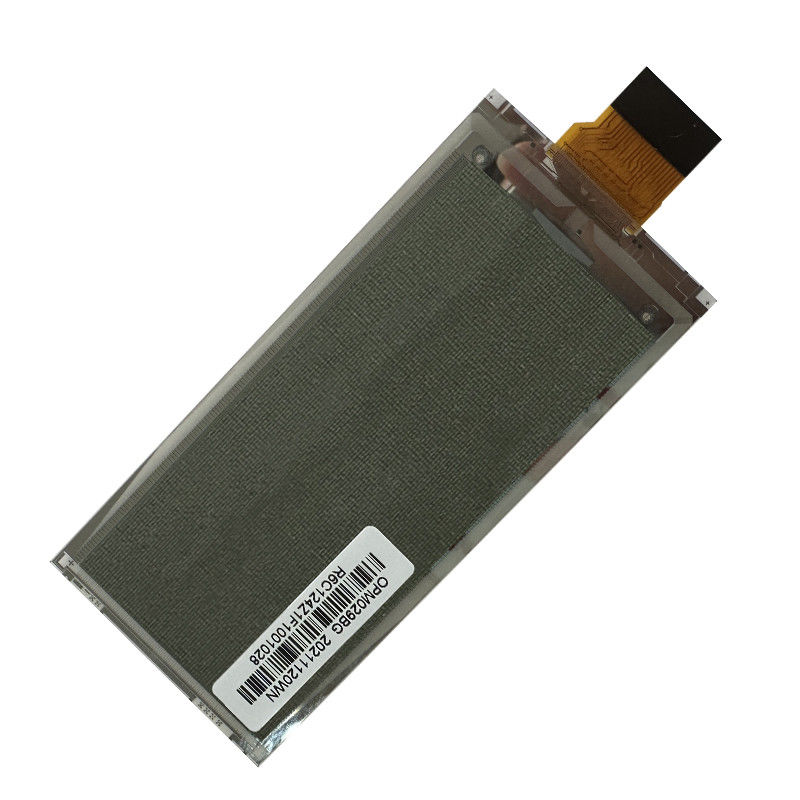

SE0290N01A0 Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
