E-paper displays

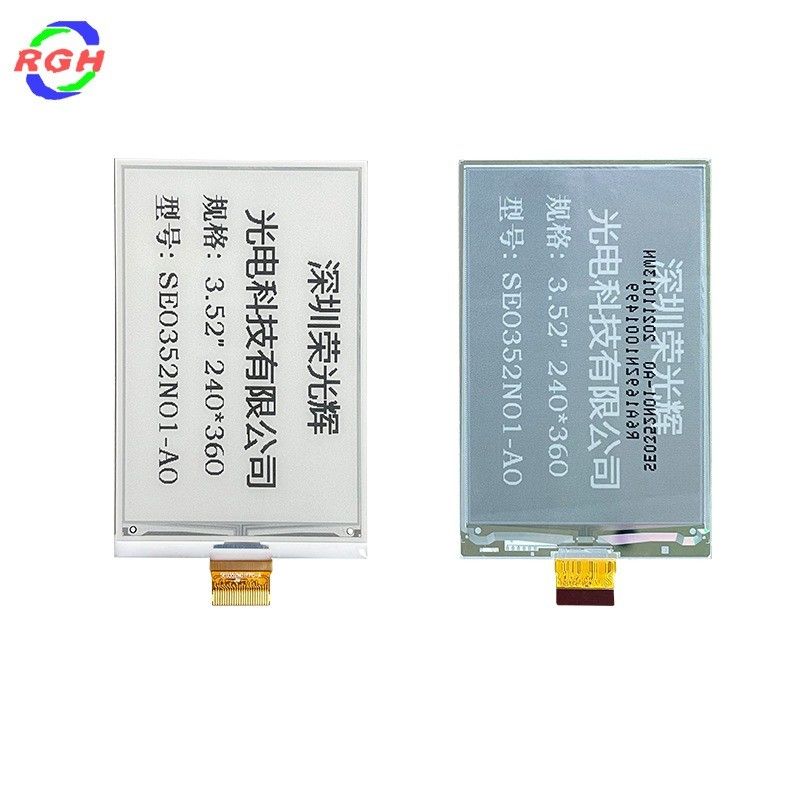

RSE0352N01

3.52" E-paper with 240x360 resolution for standard supply or customized display assemblies.

Format 3.52" E-paper

Form E-paper

Resolution 240x360

Interface SPI

Touch No

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RSE0352N01
Screen size: 3.52"
Display form: E-paper
Resolution: 240x360
Display mode: Pure Reflective
Interface: SPI
Brightness: White reflectance 30%~35%
Touch: No
Temperature: 0℃~50℃
Outline dimension: 54.41(L)×84.70(W)×1.14(H)mm
Active area: 49.67(L)×74.51(W)mm
Contrast ratio: 10
Pixel pitch: 240×360
Pixel configuration: Rectangle
Display color: 1-bit White/Black
Pin count: 24pins
Logic voltage: 2.4V~3.6V

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
