E-paper displays

RSE0370N01-A

3.7" E-paper with 240x416 resolution for standard supply or customized display assemblies.

Format 3.7" E-paper

Form E-paper

Resolution 240x416

Interface SPI

Touch NO

Compare catalog

RSE0370N01-A display module

Core specification

Engineering snapshot.

Model: RSE0370N01-A
Screen size: 3.7"
Display form: E-paper
Resolution: 240x416
Display mode: Reflective E-Paper
Interface: SPI
Brightness: White reflectance 30%~35%
Touch: NO
Temperature: 0℃~50℃
Outline dimension: 53(H)×92.99(V)×1.14(T)mm
Active area: 47.04×81.536mm
Driver IC: UC8253
Response time: 2800ms
Contrast ratio: 10
Pixel pitch: 240×416
Pixel configuration: Rectangle
Display color: 1-bit White/Black
Weight: 12g
Pin count: 24pins
Logic voltage: 2.4V~3.6V
Power: 15mW

Product views

Front and back module views.

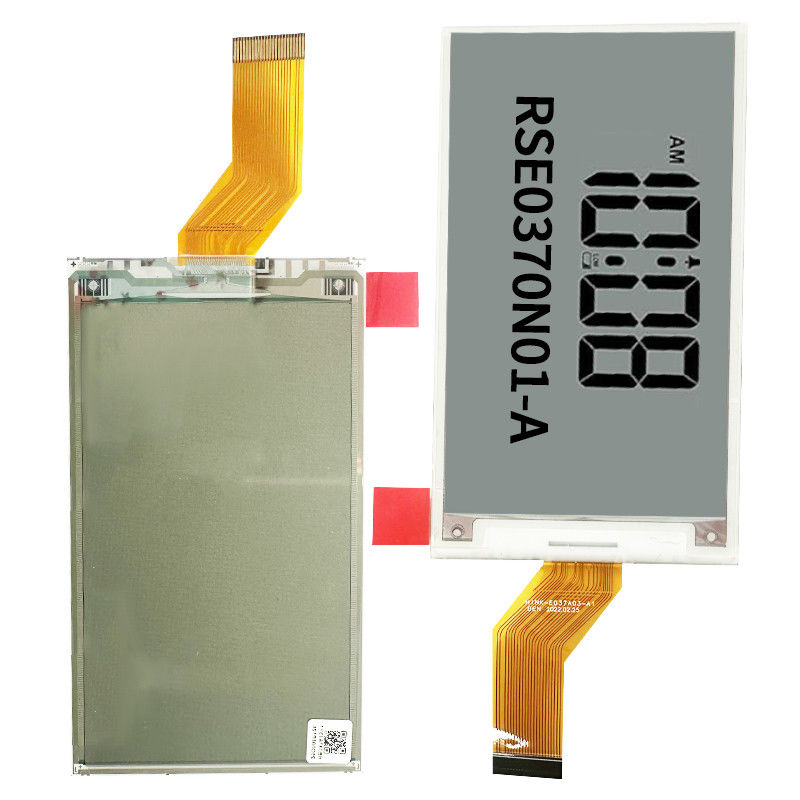

RSE0370N01-A Front view

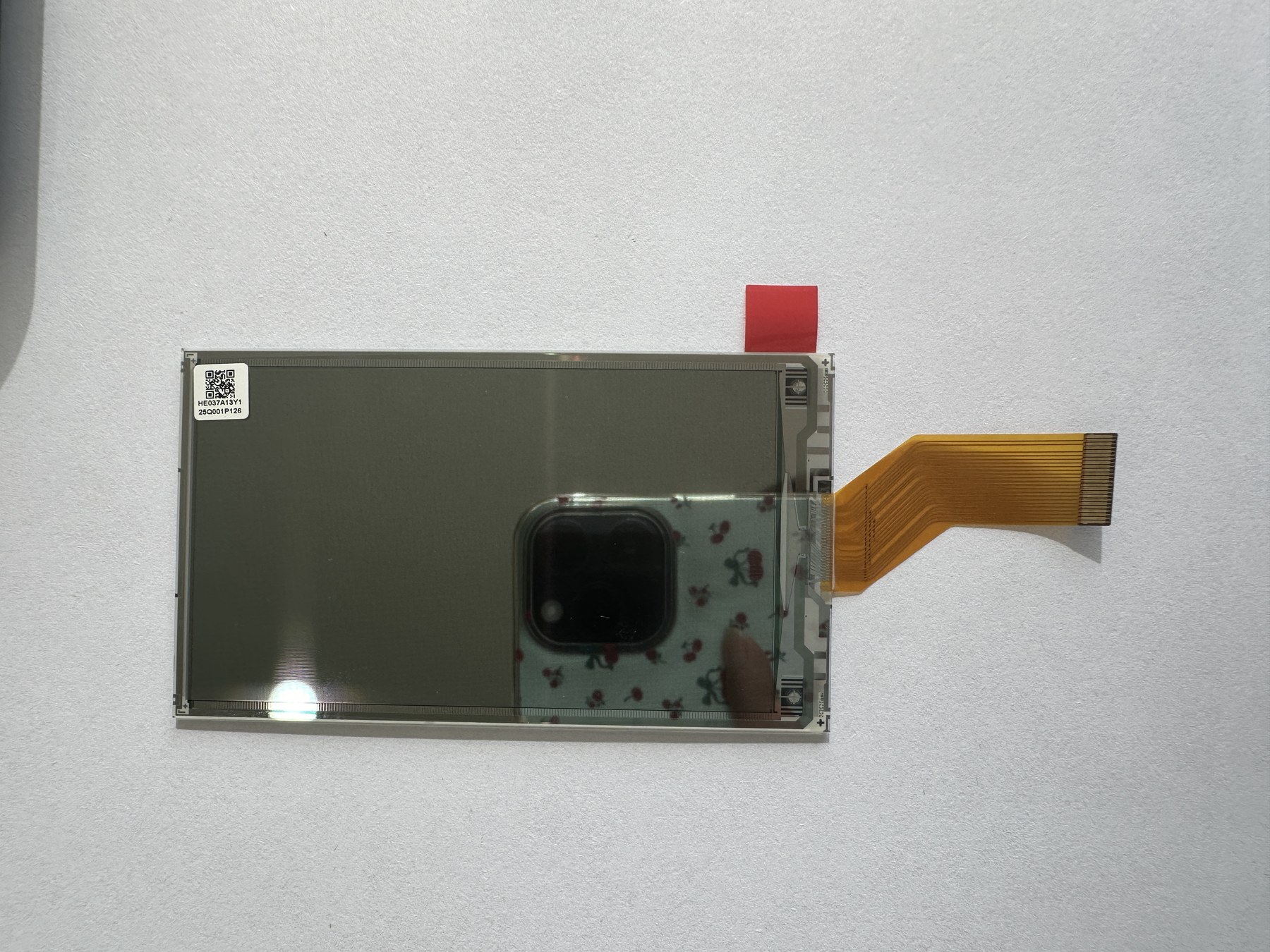

RSE0370N01-A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
