RT096003C

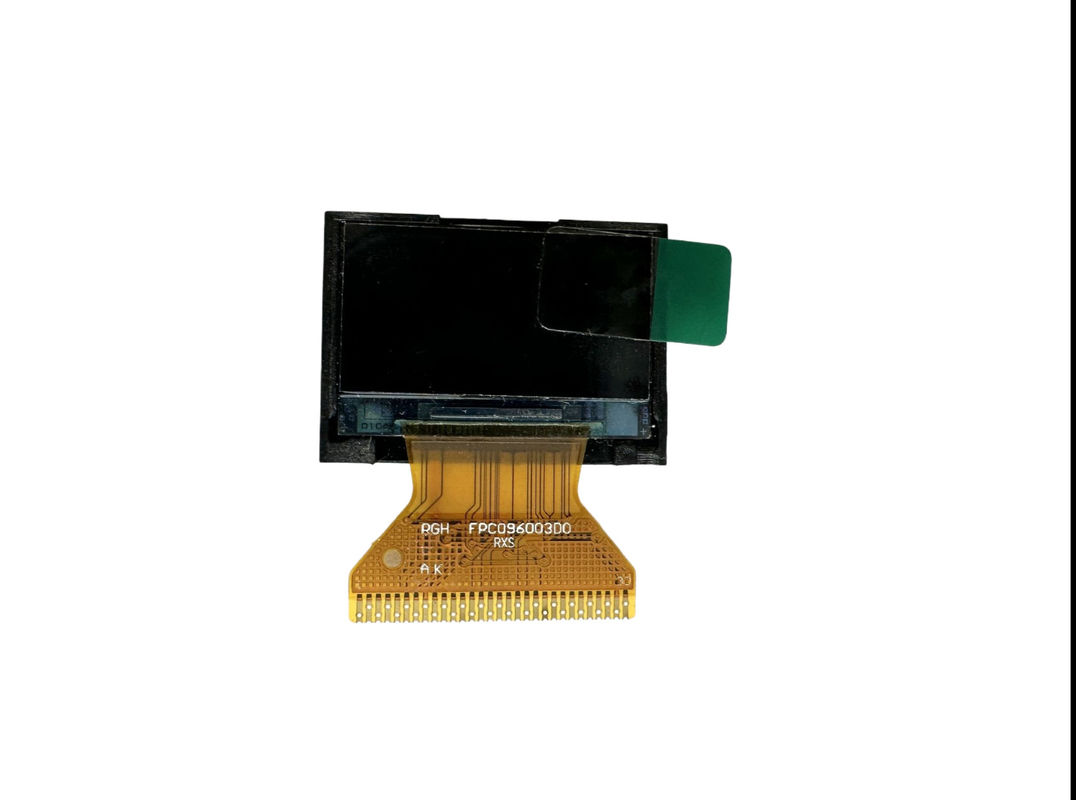

0.96" TFT LCD module with 128x64 resolution for standard supply or customized display assemblies.

Format 0.96" TFT LCD module

Form Wide rectangle

Resolution 128x64

Interface SPI

Touch No

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT096003C
Screen size: 0.96"
Display form: Wide rectangle
Resolution: 128x64
Display mode: Transmissive TFT
Interface: SPI
Brightness: 150 cd/m²
Touch: No
Temperature: -20°C to 70°C operating
Viewing direction: 12 o'clock
Outline dimension: 26.70 (W) X19.26(H) X1.5(T)
Active area: 21.74(W) X10.86 (H)
Driver IC: ST7735S
Response time: 35ms
Contrast ratio: 700
Backlight: LED
Pixel pitch: 128*64
Pixel configuration: Rectangle
Display color: 262K
Pin count: 30pins
Logic voltage: 2.5V-3.3V

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
