RT096017A

0.96" TFT LCD module with 128x64 resolution for standard supply or customized display assemblies.

Format 0.96" TFT LCD module

Form Wide rectangle

Resolution 128x64

Interface SPI

Touch NO

Compare catalog

RT096017A display module

Core specification

Engineering snapshot.

Model: RT096017A
Screen size: 0.96"
Display form: Wide rectangle
Resolution: 128x64
Display mode: Transmissive TFT
Interface: SPI
Brightness: 150 cd/m²
Touch: NO
Temperature: -20°C to 70°C operating
Viewing direction: 12 o'clock
Outline dimension: 26.70 (W) X19.260(H) X1.5(T)
Active area: 21.74(W) X10.86 (H)
Driver IC: ST7735S
Response time: 35 ms
Contrast ratio: 500
Backlight: LED
Pixel pitch: 128*64
Pixel configuration: Rectangle
Display color: 262K
Pin count: 14pins
Logic voltage: 2.5V-3.3V

Product views

Front and back module views.

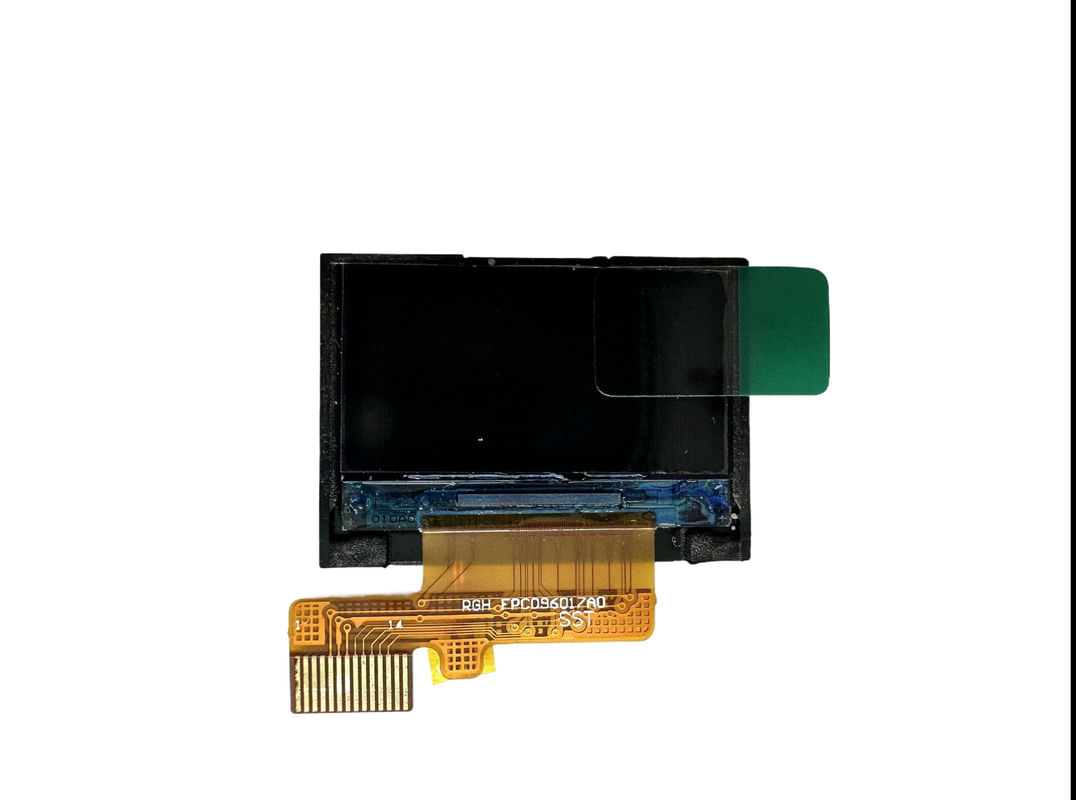

RT096017A Front view

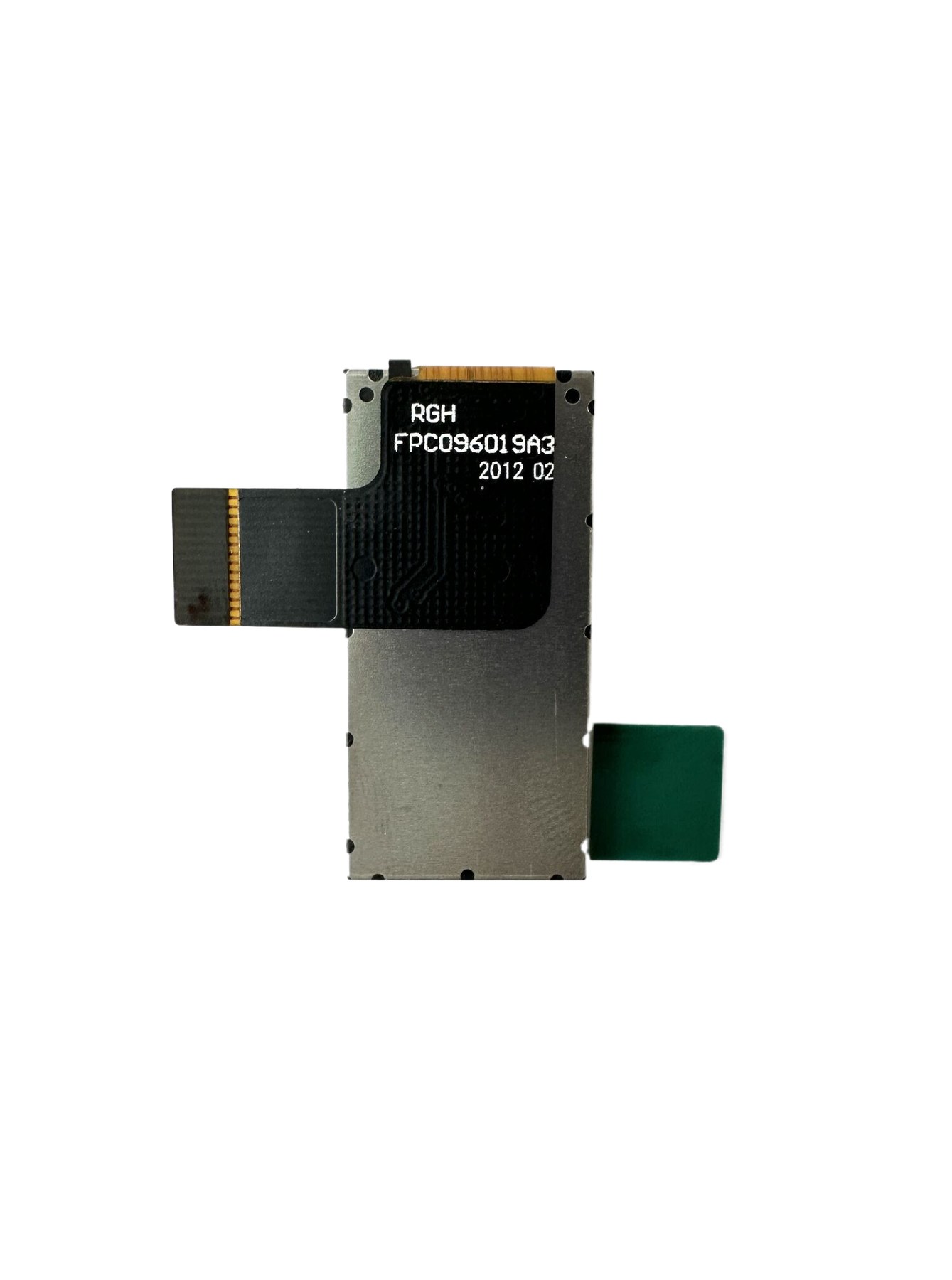

RT096017A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
