1.0-1.3 inch

RT109001A

1.09" TFT LCD module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.09" TFT LCD module

Form Round

Resolution 240x240

Interface SPI

Touch No

Compare catalog

RT109001A display module

Core specification

Engineering snapshot.

Model: RT109001A
Screen size: 1.09"
Display form: Round
Resolution: 240x240
Display mode: Transmissive TFT
Interface: SPI
Brightness: 420 cd/m²
Touch: No
Temperature: -20°C to 70°C operating
Viewing direction: All o'clock
Outline dimension: 30.59(H) X 32.98 (V) X1.56(T)
Active area: 27.79(H) X27.79(V)
Driver IC: GC9A01
Backlight: 2LEDS
Pixel pitch: 240*240
Pixel configuration: circle
Display color: 262K
Pin count: 24pins
Logic voltage: 2.5V-3.3V

Product views

Front and back module views.

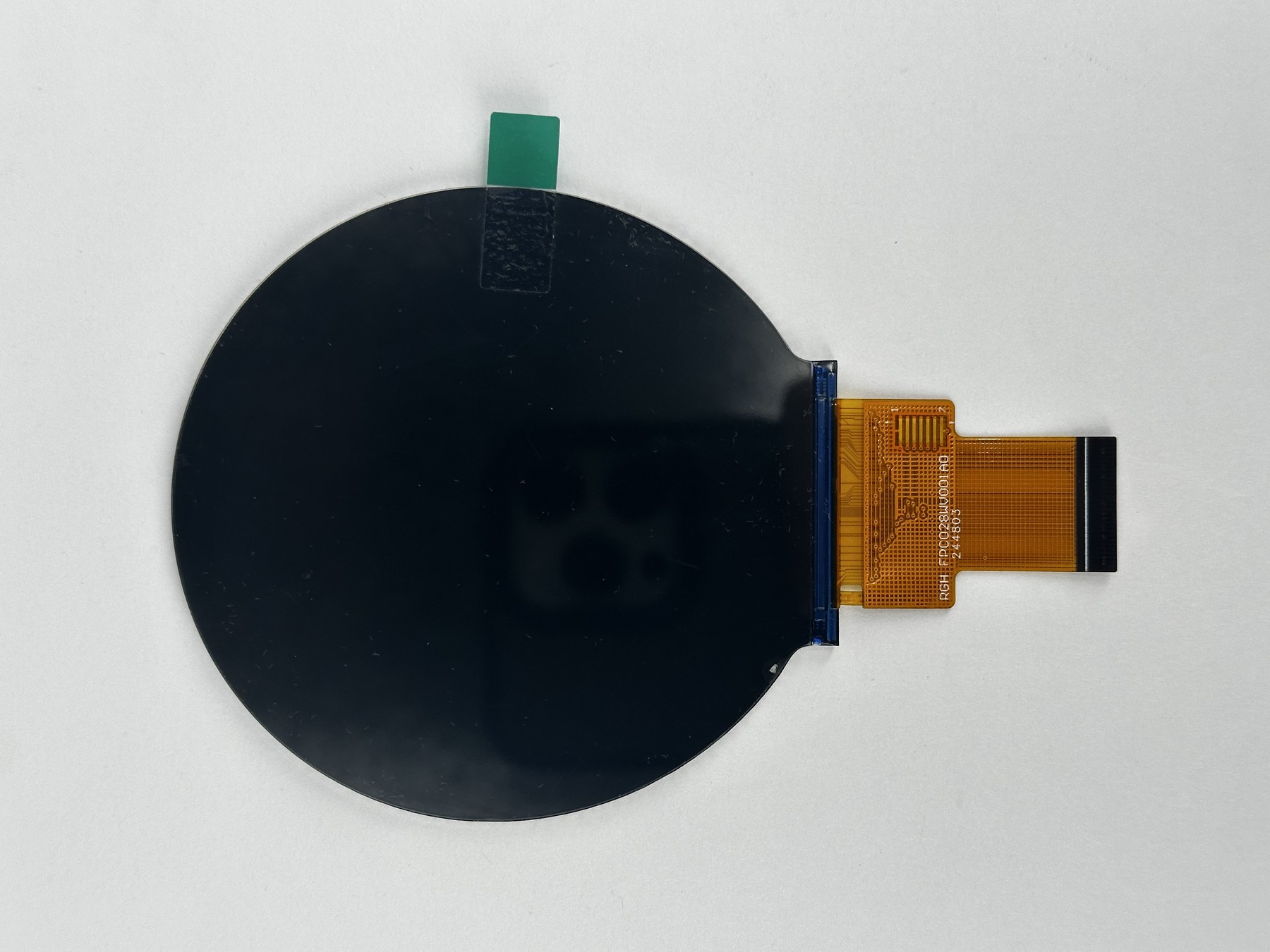

RT109001A Front view

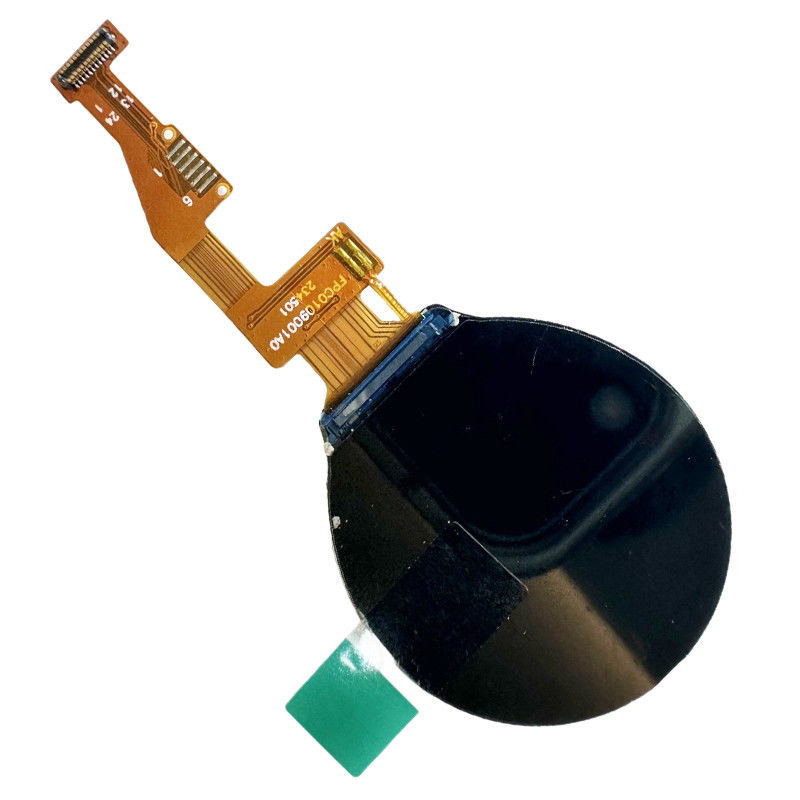

RT109001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
