RT109005A

1.09" TFT LCD module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.09" TFT LCD module

Form Round

Resolution 240x240

Interface MCU

Touch No

Compare catalog

RT109005A display module

Core specification

Engineering snapshot.

Model: RT109005A
Screen size: 1.09"
Display form: Round
Resolution: 240x240
Display mode: Transmissive TFT
Interface: MCU
Brightness: 350 cd/m²
Touch: No
Temperature: -20°C to 70°C operating
Viewing direction: All o'clock
Outline dimension: 30.59(H) X 32.98 (V) X1.56(T)
Active area: 27.79(H) X27.79(V)
Driver IC: GC9A01
Response time: 30ms
Contrast ratio: 1000
Backlight: 2LEDS
Pixel pitch: 240*240
Pixel configuration: circle
Display color: 262K
Pin count: 22pins
Logic voltage: 2.5V-3.3V
Power: 140 mW typical

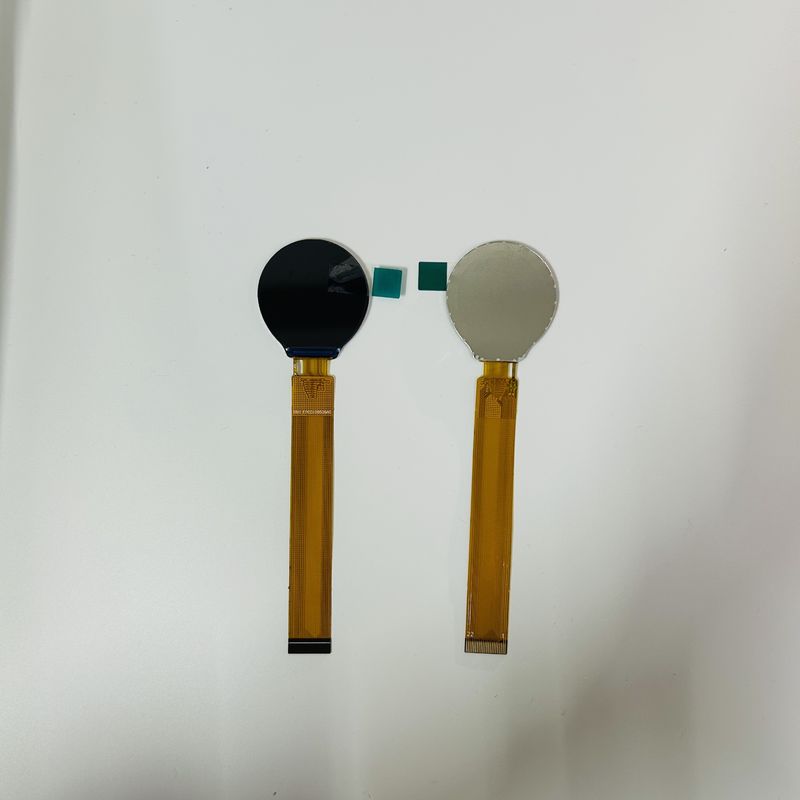

Product views

Front and back module views.

RT109005A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
