RT116003A

11.6" TFT LCD module with 440x1920 resolution for standard supply or customized display assemblies.

Format 11.6" TFT LCD module

Form Bar / stretched

Resolution 440x1920

Interface MIPI 4LANE

Compare catalog

RT116003A display module

Core specification

Engineering snapshot.

Model: RT116003A
Screen size: 11.6"
Display form: Bar / stretched
Resolution: 440x1920
Display mode: Transmissive TFT
Interface: MIPI 4LANE
Brightness: 500cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 64.98×266.39×4.6±0.2mm
Active area: 57.948(H)×252.864(V)mm
Driver IC: ICN9707
Backlight: 16LEDs
Pixel pitch: 440(RGB)×1920
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.8V~3.3V

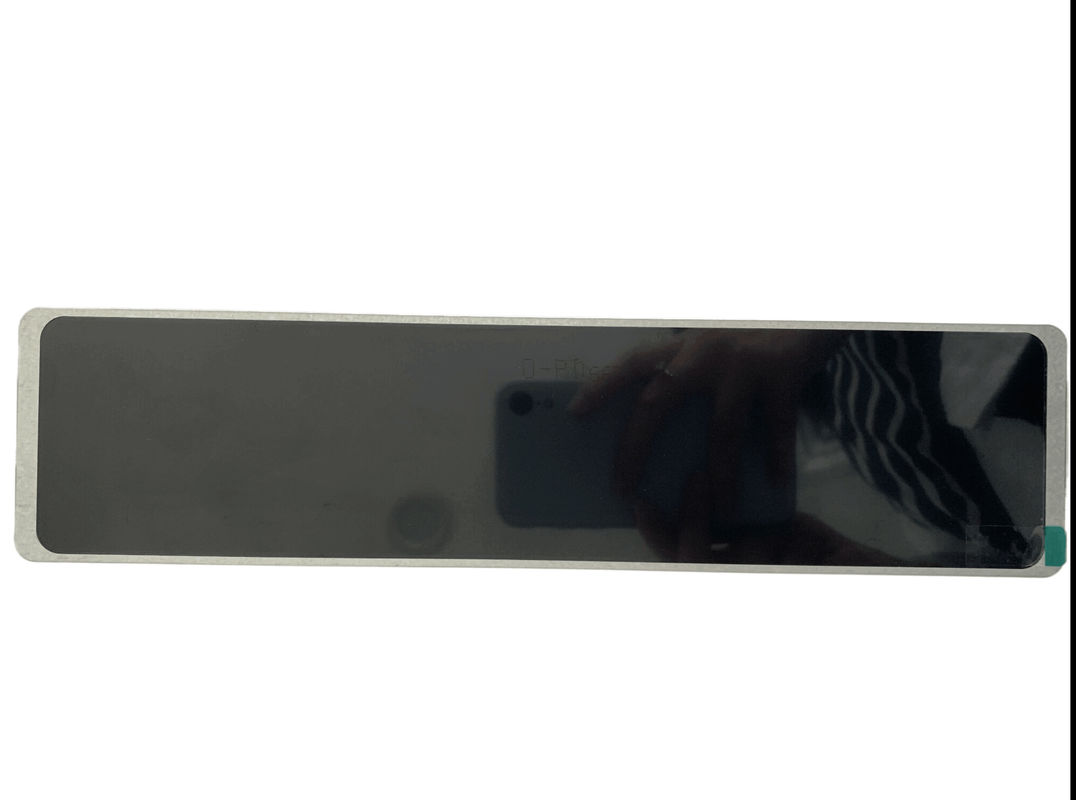

Product views

Front and back module views.

RT116003A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Set per model and production planMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
