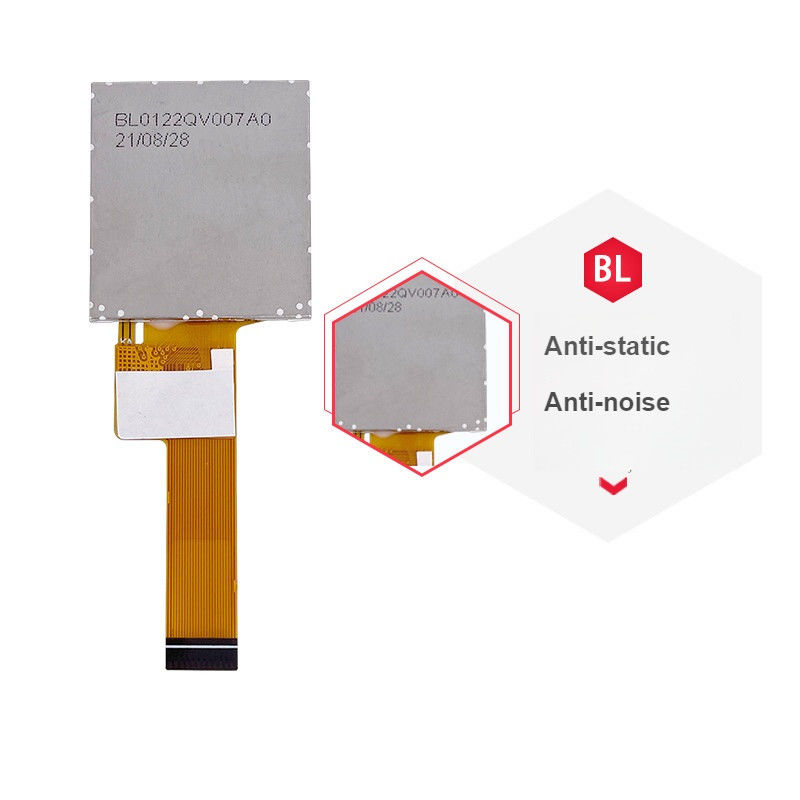

RT122QV007A 1.22" TFT LCD touch module

1.22" TFT LCD touch module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.22" TFT LCD touch module

Form Square

Resolution 240x240

Interface RGB,6-bit)

Touch No

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT122QV007A
Screen size: 1.22"
Display form: Square
Resolution: 240x240
Display mode: Transmissive TFT
Interface: RGB,6-bit)
Brightness: 350 cd/m²
Touch: No
Temperature: -20°C to 70°C operating; -30°C to 80°C storage
Viewing direction: All o'clock
Outline dimension: 24.76 (H) X27.66(V) X1.51(T)
Active area: 21.96(H) X21.96 (V)
Driver IC: ST7789V2
Response time: 35ms
Contrast ratio: 800
Backlight: 2LEDS
Pixel pitch: 240*240
Pixel configuration: Square
Display color: 262K
Pin count: 25pins
Logic voltage: 2.5V-3.3V
Power: 140mW

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
