RT14QV003A

1.4" TFT LCD module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.4" TFT LCD module

Form Square

Resolution 240x240

Interface MCU 8-bit

Touch No

Compare catalog

RT14QV003A display module

Core specification

Engineering snapshot.

Model: RT14QV003A
Screen size: 1.4"
Display form: Square
Resolution: 240x240
Display mode: Thin Film Transistor (TFT) LCD
Interface: MCU 8-bit
Brightness: 500 cd/m²
Touch: No
Temperature: -20°C to 70°C
Viewing direction: All o'clock
Outline dimension: 27.40(W)X30.60(H)X1.5(T)
Active area: 25.20 × 25.20 mm
Driver IC: ST7789V
Response time: 30 ms
Contrast ratio: 900
Backlight: LED
Pixel pitch: 240*240
Pixel configuration: Square
Display color: 262K
Pin count: 24pins
Logic voltage: 2.5~3.3 V

Product views

Front and back module views.

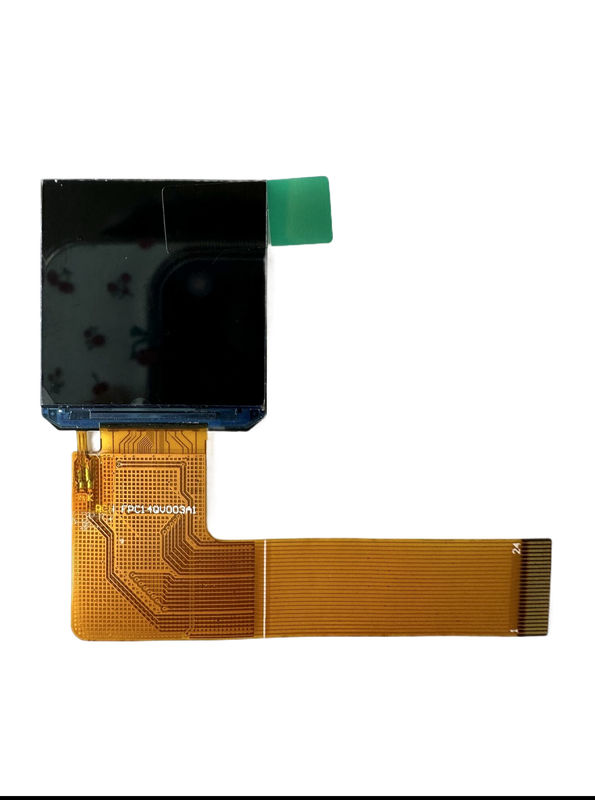

RT14QV003A Front view

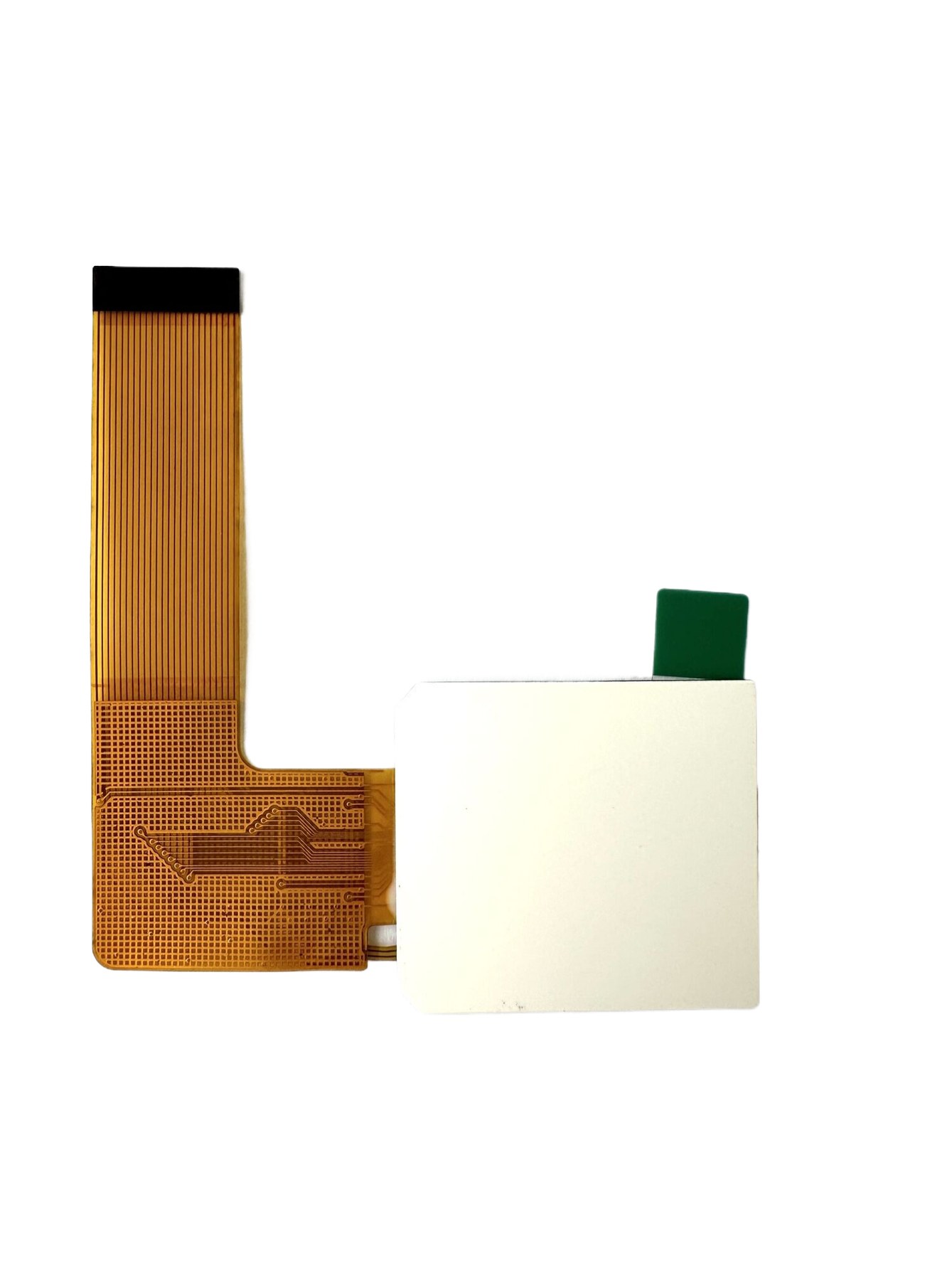

RT14QV003A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
