1.31-1.54 inch

RT14HV002C

1.4" TFT LCD module with 320x320 resolution for standard supply or customized display assemblies.

Format 1.4" TFT LCD module

Form Compact rectangle

Resolution 320x320

Interface MCU 8-bit

Touch No

Compare catalog

RT14HV002C display module

Core specification

Engineering snapshot.

Model: RT14HV002C
Screen size: 1.4"
Display form: Compact rectangle
Resolution: 320x320
Display mode: Transmissive TFT
Interface: MCU 8-bit
Brightness: 750 cd/m²
Touch: No
Temperature: -20°C to 70°C
Viewing direction: All o'clock
Outline dimension: 27.50 × 30.64 × 1.51 mm
Active area: 24.96(H) X24.96 (V) mm
Driver IC: ST7365
Response time: 30 ms
Contrast ratio: 900
Backlight: LED
Pixel pitch: 320(RGB) × 320
Pixel configuration: Square
Display color: 262K
Pin count: 22 pins
Logic voltage: 2.5~3.3 V
Power: 210 mW

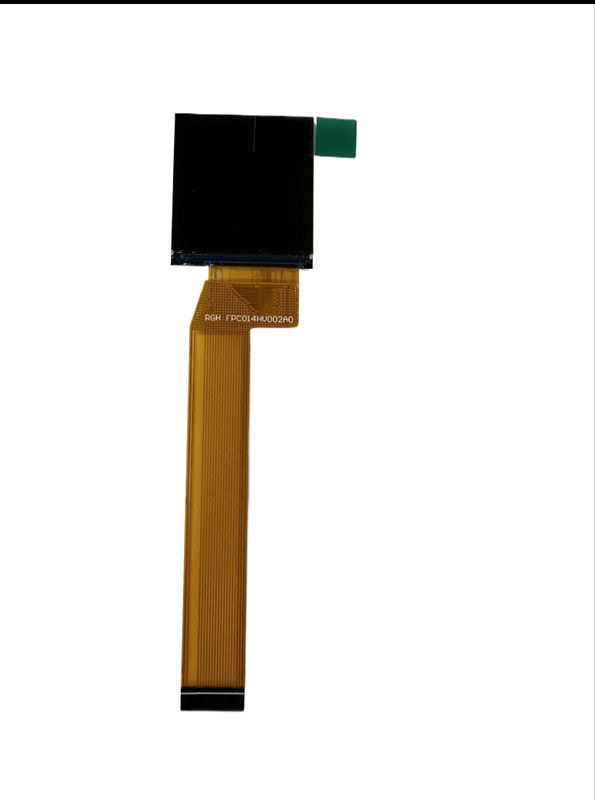

Product views

Front and back module views.

RT14HV002C Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
