RT154047B

1.54" TFT LCD module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.54" TFT LCD module

Form Compact rectangle

Resolution 240x240

Interface RGB 6BIT

Touch No

Compare catalog

RT154047B display module

Core specification

Engineering snapshot.

Model: RT154047B
Screen size: 1.54"
Display form: Compact rectangle
Resolution: 240x240
Display mode: Transmissive TFT
Interface: RGB 6BIT
Brightness: 700 cd/㎡
Touch: No
Temperature: -10℃ ~ 60℃
Viewing direction: All o'clock
Outline dimension: 31.52(H) × 33.72(V) × 1.95(T) mm
Active area: 27.72(W) × 27.72(H) mm
Driver IC: ST7789T9‑G4‑1
Response time: 30 ms
Contrast ratio: 900
Backlight: LED
Pixel pitch: 240*240
Pixel configuration: square
Display color: 262K
Pin count: 20 pins
Logic voltage: 2.5–3.3V
Power: 210 mW

Product views

Front and back module views.

RT154047B Front view

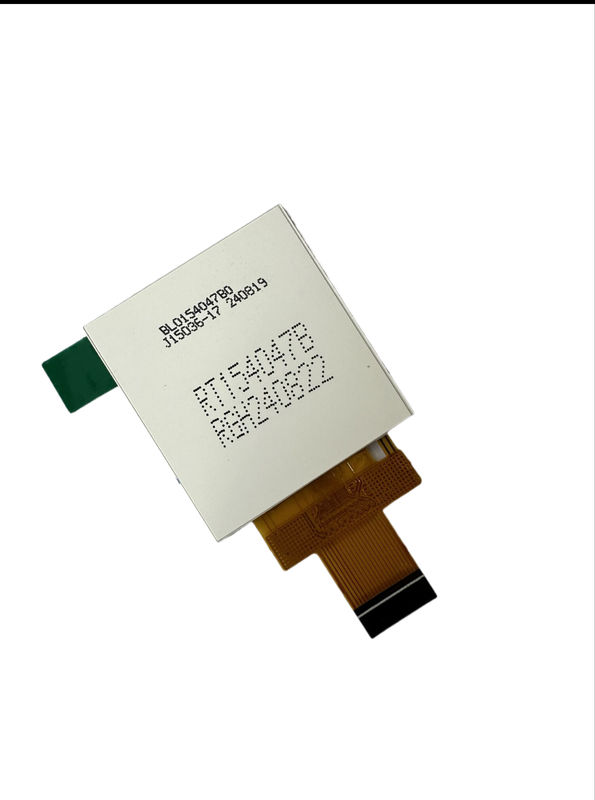

RT154047B Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
