RT18QQ009A

1.8" TFT LCD module with 128x160 resolution for standard supply or customized display assemblies.

Format 1.8" TFT LCD module

Form Portrait rectangle

Resolution 128x160

Interface MCU 8Bit

Touch No

Compare catalog

RT18QQ009A display module

Core specification

Engineering snapshot.

Model: RT18QQ009A
Screen size: 1.8"
Display form: Portrait rectangle
Resolution: 128x160
Display mode: Transmissive TFT
Interface: MCU 8Bit
Brightness: 300 cd/㎡
Touch: No
Temperature: -20 C to 70C operating
Viewing direction: 12:00 o’clock
Outline dimension: 34.00(W) × 45.80(H) × 2.45(T) mm
Active area: 28.032(W) × 35.04(H) mm
Driver IC: ST7735S
Response time: 35 ms
Contrast ratio: 500
Backlight: LED
Pixel pitch: 128*160
Pixel configuration: Rectangle
Display color: 262K
Pin count: 28 pins
Logic voltage: 2.5~3.3V

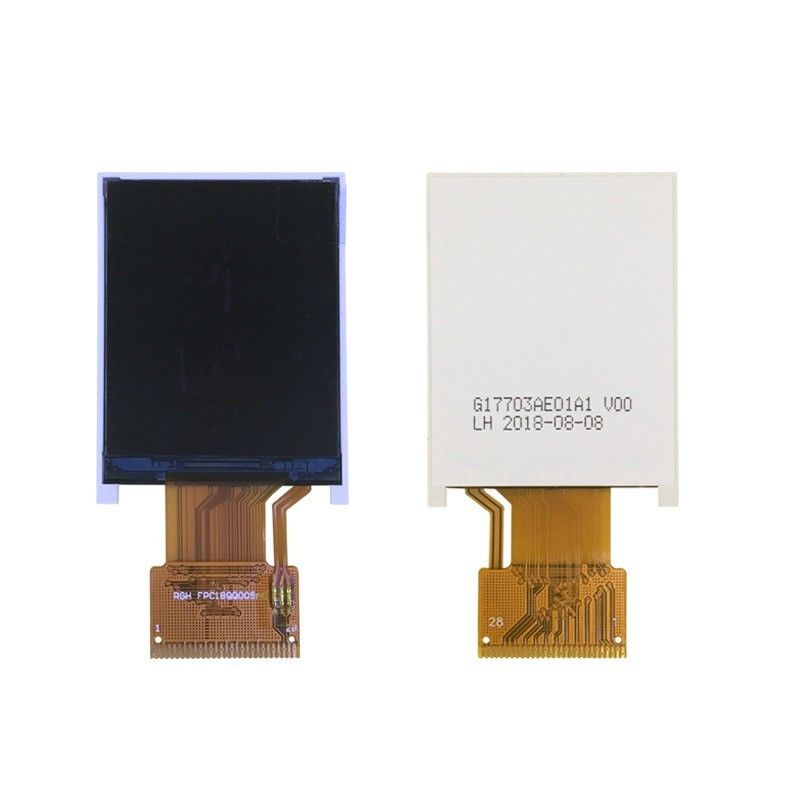

Product views

Front and back module views.

RT18QQ009A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
