RT20LQ055E

2" TFT LCD module with 320x240 resolution for standard supply or customized display assemblies.

Format 2" TFT LCD module

Form Landscape rectangle

Resolution 320x240

Interface RGB

Touch No touch; touch panel available on request

Compare catalog

RT20LQ055E display module

Core specification

Engineering snapshot.

Model: RT20LQ055E
Screen size: 2"
Display form: Landscape rectangle
Resolution: 320x240
Display mode: IPS TFT LCD
Interface: RGB
Brightness: 480 cd/m²
Touch: No touch; touch panel available on request
Temperature: -20 C to 70 C operating; -30 C to P5280 C storage
Viewing direction: 12 o'clock
Outline dimension: 46.10(W) x 40.96(H) x 2.53(T) mm
Active area: 40.80(W) x 30.60(H) mm
Driver IC: ILI9342C
Response time: 35 ms
Contrast ratio: 500
Backlight: 3LEDS
Pixel pitch: 320*240
Pixel configuration: Rectangle
Display color: 262K
Pin count: 40 pins
Logic voltage: 2.5V-3.3V

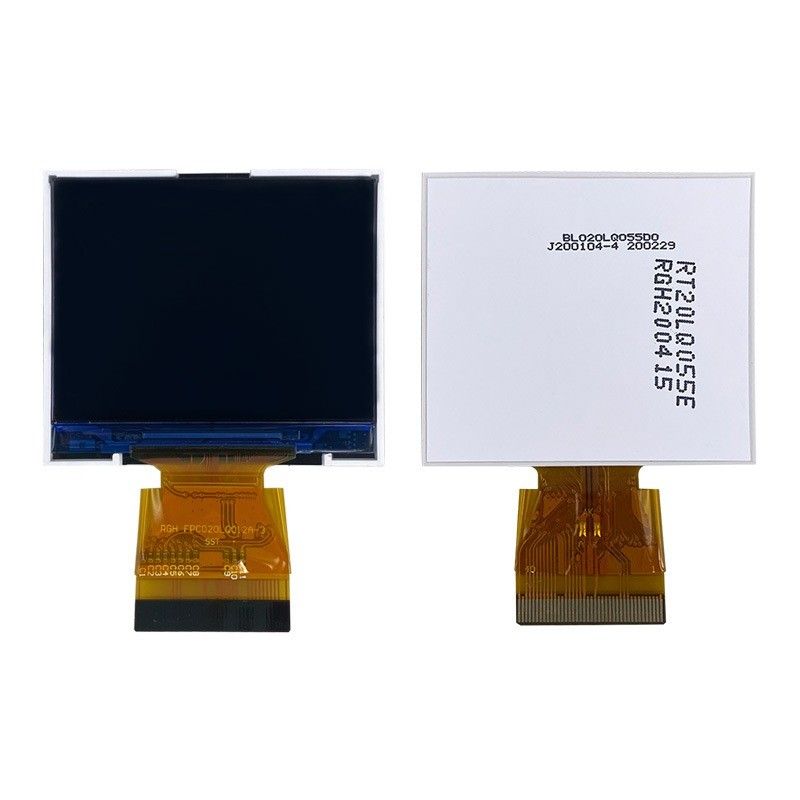

Product views

Front and back module views.

RT20LQ055E Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
