1.6-2.0 inch

RT20LQ117A

2" TFT LCD module with 320x240 resolution for standard supply or customized display assemblies.

Format 2" TFT LCD module

Form Landscape rectangle

Resolution 320x240

Interface RGB + SPI

Touch No

Compare catalog

RT20LQ117A display module

Core specification

Engineering snapshot.

Model: RT20LQ117A
Screen size: 2"
Display form: Landscape rectangle
Resolution: 320x240
Display mode: Transmissive TFT
Interface: RGB + SPI
Brightness: 190 cd/㎡
Touch: No
Temperature: -20℃ ~ 70℃
Viewing direction: WIDE VIEWING
Outline dimension: 46.0(W) × 41.30(H) × 2.53(T) mm
Active area: 40.80(W) × 30.60(H) mm
Driver IC: ILI9342C
Response time: 30 ms
Contrast ratio: 500
Backlight: 3LEDS
Pixel pitch: 320*240
Pixel configuration: Rectangle
Display color: 262K
Pin count: 45pins
Logic voltage: 2.5~3.3V

Product views

Front and back module views.

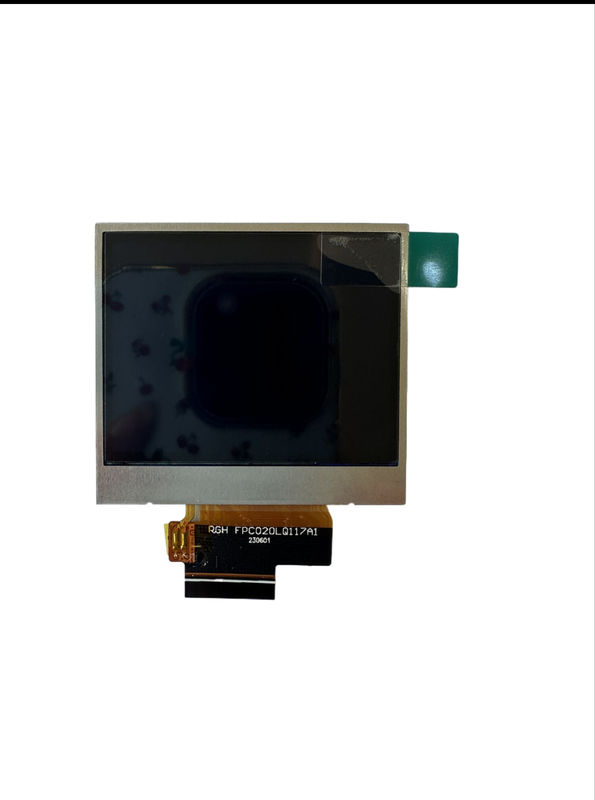

RT20LQ117A Front view

RT20LQ117A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
