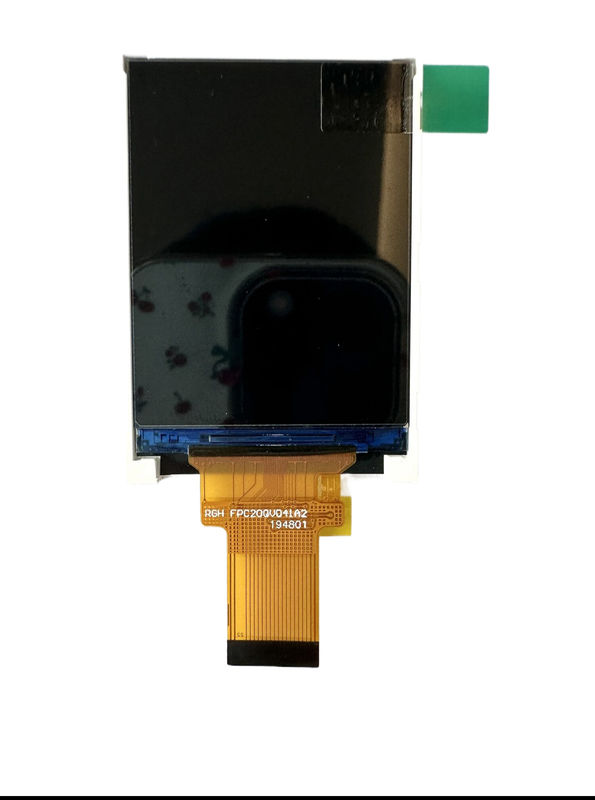

RT20QV041B 2" TFT LCD module

Core specification

Engineering snapshot.

Model

RT20QV041B

Screen size

2"

Display form

Portrait rectangle

Resolution

240x320

Display mode

Transmissive TFT

Interface

RGB + SPI

Brightness

480 cd/m²

Touch

No

Temperature

-20℃ ~ 70℃

Viewing direction

All o'clock

Outline dimension

36.05(H)X51.80(W)X2.5(T)

Active area

30.60(W) × 40.80(H) mm

Driver IC

ST7789V

Contrast ratio

700

Backlight

3LEDS

Pixel pitch

240*320

Pixel configuration

Rectangle

Display color

262K

Pin count

22 pins

Logic voltage

2.5~3.0V
