1.6-2.0 inch

RT20QV129B

2" TFT LCD module with 240x320 resolution for standard supply or customized display assemblies.

Format 2" TFT LCD module

Form Portrait rectangle

Resolution 240x320

Interface MCU

Touch No

Compare catalog

RT20QV129B display module

Core specification

Engineering snapshot.

Model: RT20QV129B
Screen size: 2"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: Transmissive TFT
Interface: MCU
Brightness: 380 cd/m²
Touch: No
Temperature: -20℃ ~ 70℃
Viewing direction: ALL o’clock
Outline dimension: 34.60(H) × 47.80(V) × 2.05(T) mm
Active area: 30.60(H) × 40.80(V) mm
Driver IC: ST7789V3
Response time: 30 ms
Contrast ratio: 800
Backlight: LED
Pixel pitch: 240(RGB) × 320
Pixel configuration: Rectangle
Display color: 262K
Pin count: 18 pins
Logic voltage: 2.5~3.3V

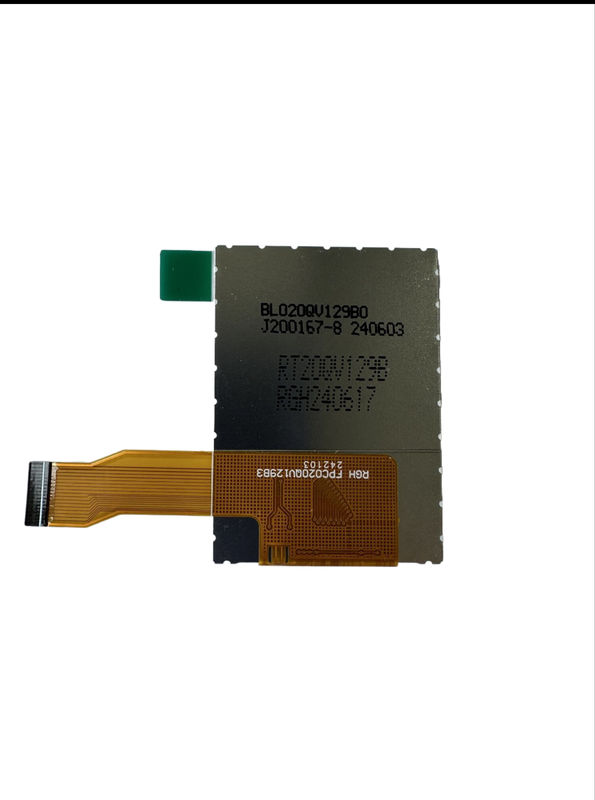

Product views

Front and back module views.

RT20QV129B Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
