1.6-2.0 inch

RT20QV888A

2" TFT LCD module with 240x320 resolution for standard supply or customized display assemblies.

Format 2" TFT LCD module

Form Portrait rectangle

Resolution 240x320

Interface MCU 16BIT

Touch No

Compare catalog

RT20QV888A display module

Core specification

Engineering snapshot.

Model: RT20QV888A
Screen size: 2"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: a-Si TFT
Interface: MCU 16BIT
Brightness: 160cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: 8:00o'clock
Outline dimension: 36.72(H)×52.74(V)×2.40(T)mm
Active area: 30.60(H)×40.80(V)mm
Driver IC: ST7789V2
Response time: 15ms
Contrast ratio: 130
Backlight: LED
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 263K
Pin count: 30pins
Logic voltage: 2.4v-3.3v
Power: 210mW

Product views

Front and back module views.

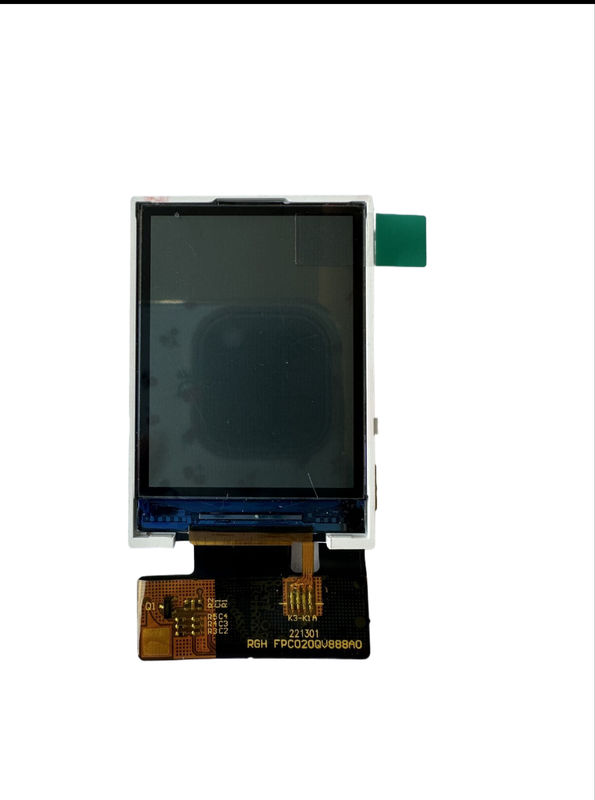

RT20QV888A Front view

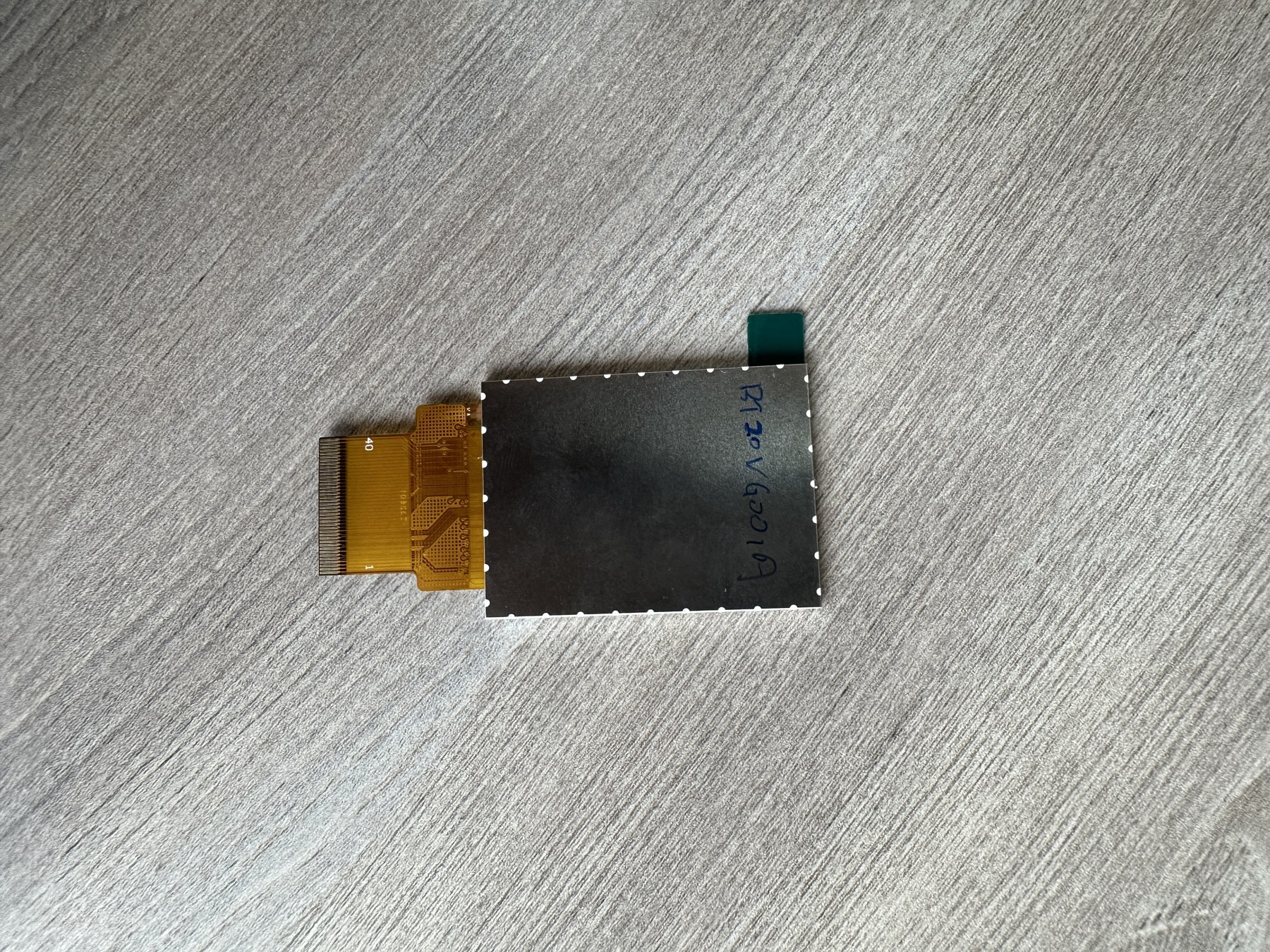

RT20QV888A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
