RT36HD001A

3.6" TFT LCD module with 360x360 resolution for standard supply or customized display assemblies.

Format 3.6" TFT LCD module

Form Round

Resolution 360x360

Interface RGB

Touch NO

Compare catalog

RT36HD001A display module

Core specification

Engineering snapshot.

Model: RT36HD001A
Screen size: 3.6"
Display form: Round
Resolution: 360x360
Display mode: Transmissive TFT
Interface: RGB
Brightness: 1000cd/㎡
Touch: NO
Temperature: -30℃~80℃
Outline dimension: 98.88(H)×94.12(V)×7.70(T)mm
Active area: 89.76(H)×83.49(V)mm
Driver IC: ST72566
Response time: 30ms
Contrast ratio: 1200
Backlight: 15LEDs
Pixel pitch: 544(RGB)×506
Pixel configuration: circle
Display color: 262K color
Pin count: 40pins
Logic voltage: 3.0V~3.6V
Power: 1400mW

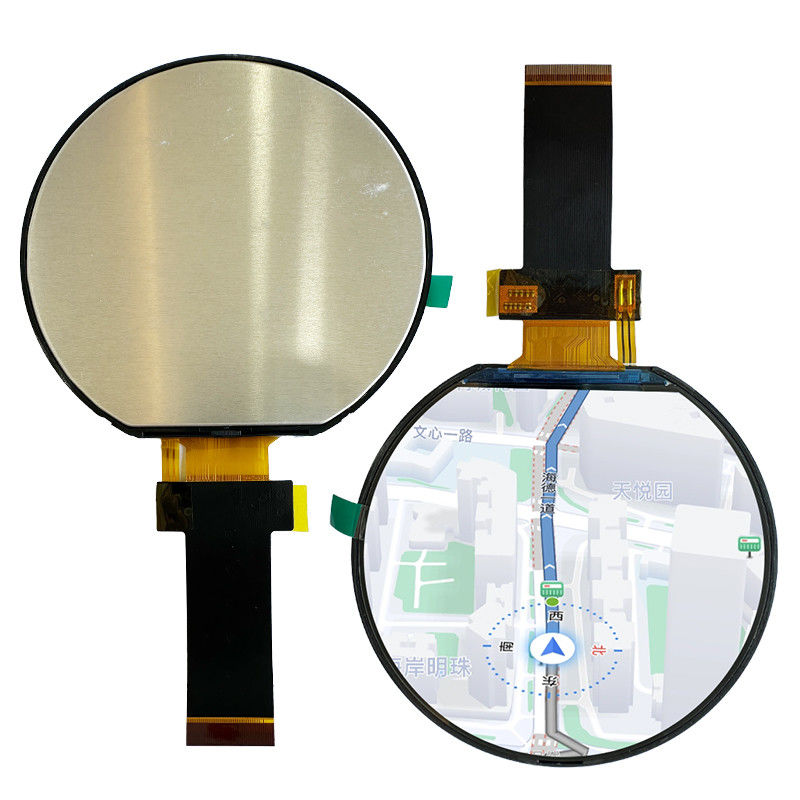

Product views

Front and back module views.

RT36HD001A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
