RT18WV003A

1.8" TFT LCD module with 360x360 resolution for standard supply or customized display assemblies.

Format 1.8" TFT LCD module

Form Round

Resolution 360x360

Interface QSPI

Touch No

Compare catalog

RT18WV003A display module

Core specification

Engineering snapshot.

Model: RT18WV003A
Screen size: 1.8"
Display form: Round
Resolution: 360x360
Display mode: Transmissive TFT
Interface: QSPI
Brightness: 300 cd/㎡
Touch: No
Temperature: -20℃ ~ 70℃
Viewing direction: All o'clock
Outline dimension: 48.08(H)X49.95(V)X1.96(T) mm
Active area: 45.68(H) × 45.68(V) mm
Driver IC: ST77916
Response time: 25 ms
Contrast ratio: 1200
Backlight: LED
Pixel pitch: 360*360
Pixel configuration: Square
Display color: 262K
Pin count: 10pins
Logic voltage: 2.65~3.3V
Power: 210 mW

Product views

Front and back module views.

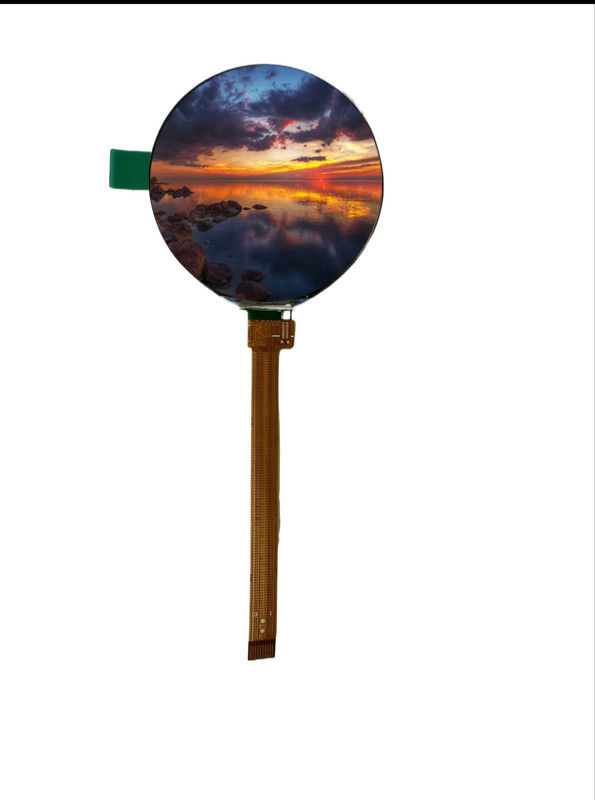

RT18WV003A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
