RT45FHD001A

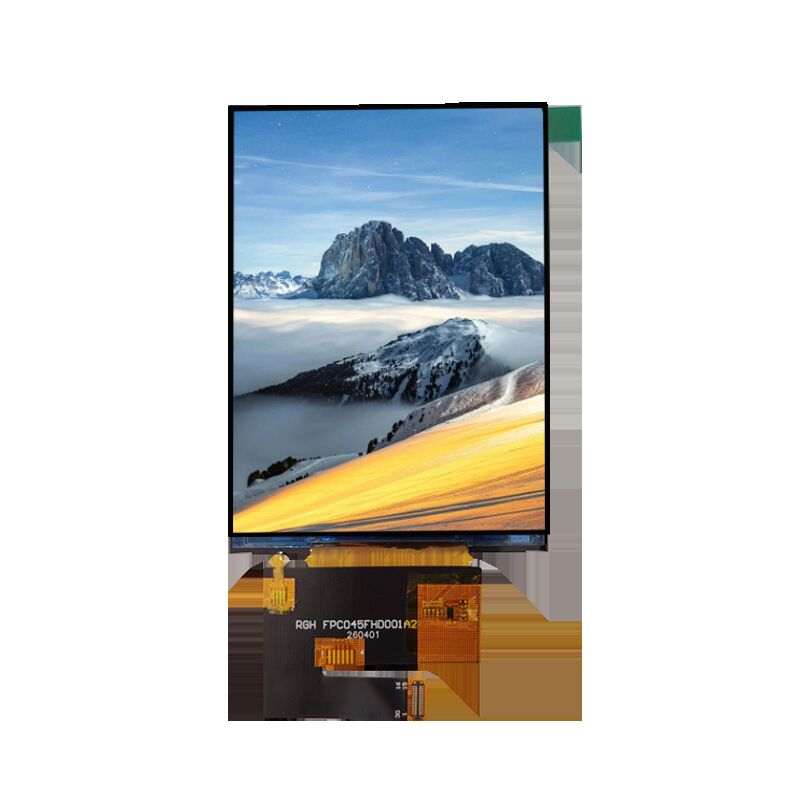

4.5" TFT LCD module with 1080x1440 resolution for standard supply or customized display assemblies.

Format 4.5" TFT LCD module

Form Portrait rectangle

Resolution 1080x1440

Interface MIPI

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT45FHD001A
Screen size: 4.5"
Display form: Portrait rectangle
Resolution: 1080x1440
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 670cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 72.04(H)×99.28(V)×2.75(T)mm
Active area: 68.04(H)×90.72(V)mm
Driver IC: ST7105
Response time: 35ms
Contrast ratio: 1000
Backlight: 14LEDs
Pixel pitch: 1080(RGB)×1440
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 4.5V~6.2V
Power: 980mW

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
