5.1-7.0 inch

RT70FHD003A

7" TFT LCD module with 1200x1920 resolution for standard supply or customized display assemblies.

Format 7" TFT LCD module

Form Portrait rectangle

Resolution 1200x1920

Interface MIPI

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT70FHD003A
Screen size: 7"
Display form: Portrait rectangle
Resolution: 1200x1920
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 1000cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 111.0(H)×166.0(V)×3.29(T)mm
Active area: 94.5(H)×151.2(V)mm
Driver IC: HX8279
Response time: 30ms
Contrast ratio: 1200
Backlight: 56LEDs
Pixel pitch: 1200(RGB)×1920
Pixel configuration: Rectangle
Display color: 1.07B
Pin count: 40pins
Logic voltage: 1.7V~2.0V

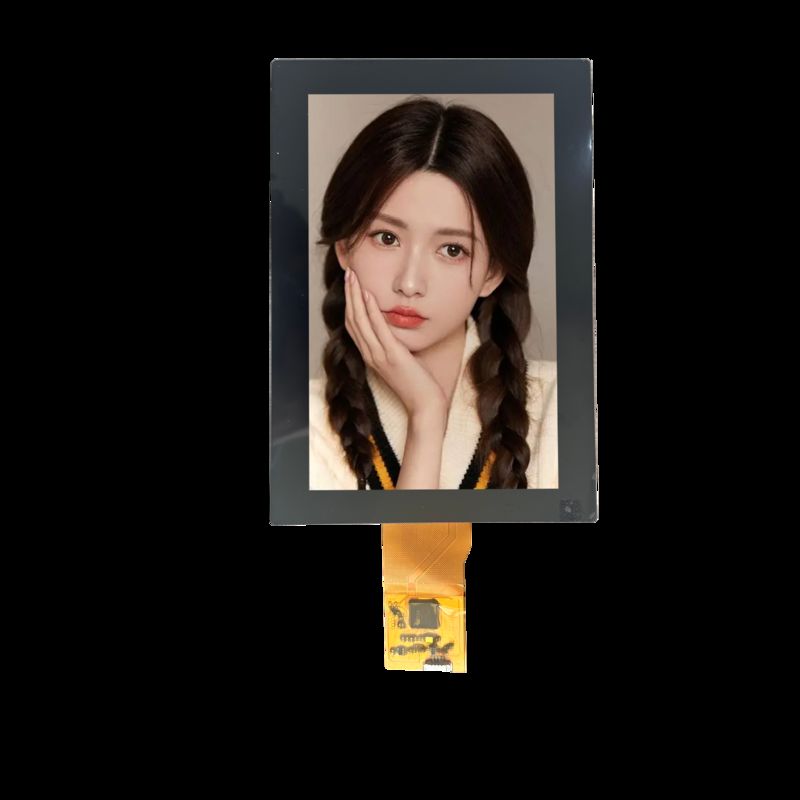

Product views

Front and back module views.

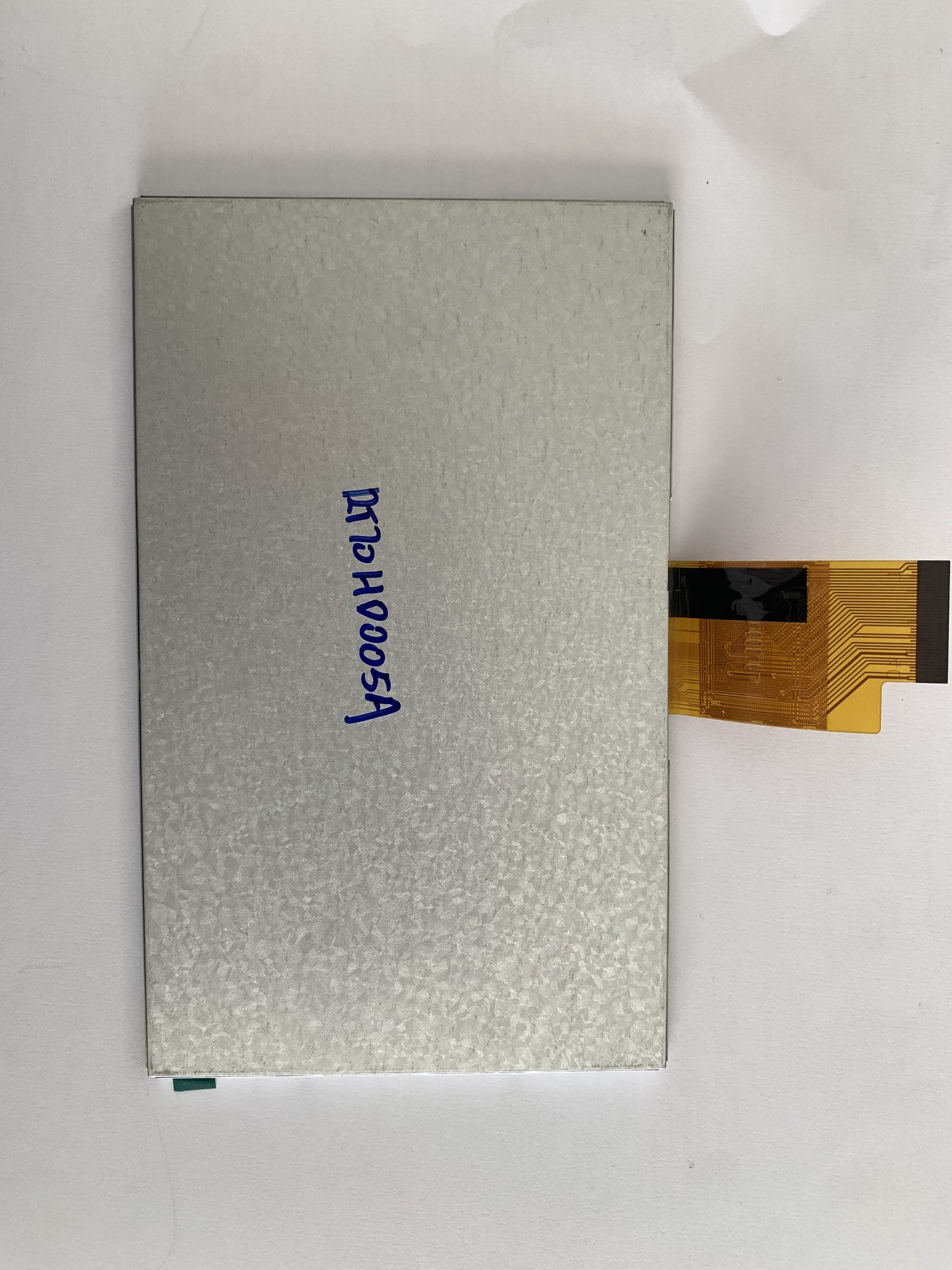

RT70FHD003A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
