3.6-5.0 inch

RT50HD010A

5" TFT LCD module with 720x1280 resolution for standard supply or customized display assemblies.

Format 5" TFT LCD module

Form Wide rectangle

Resolution 720x1280

Interface MIPI

Compare catalog

RT50HD010A display module

Core specification

Engineering snapshot.

Model: RT50HD010A
Screen size: 5"
Display form: Wide rectangle
Resolution: 720x1280
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 320cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 67.16(W)×120.60(H)×1.75(T)mm
Active area: 62.10(W)×110.40(H)mm
Driver IC: ST7703
Response time: 30ms
Contrast ratio: 1000
Backlight: 12LEDS
Pixel pitch: 720(RGB)×1280
Display color: 262K color
Pin count: 39pins
Logic voltage: 2.5V~3.3V

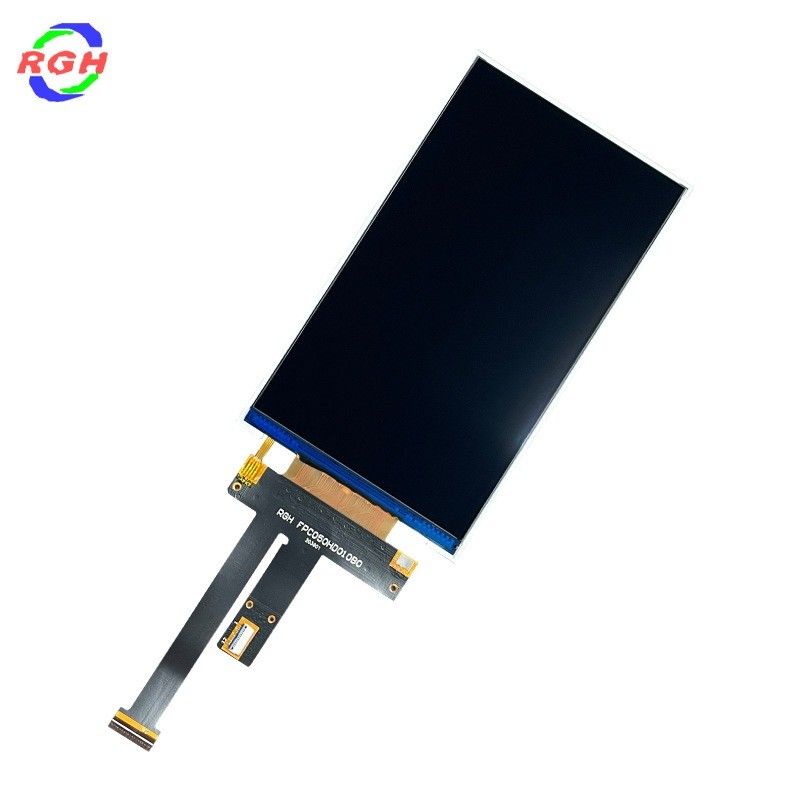

Product views

Front and back module views.

RT50HD010A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
