3.6-5.0 inch

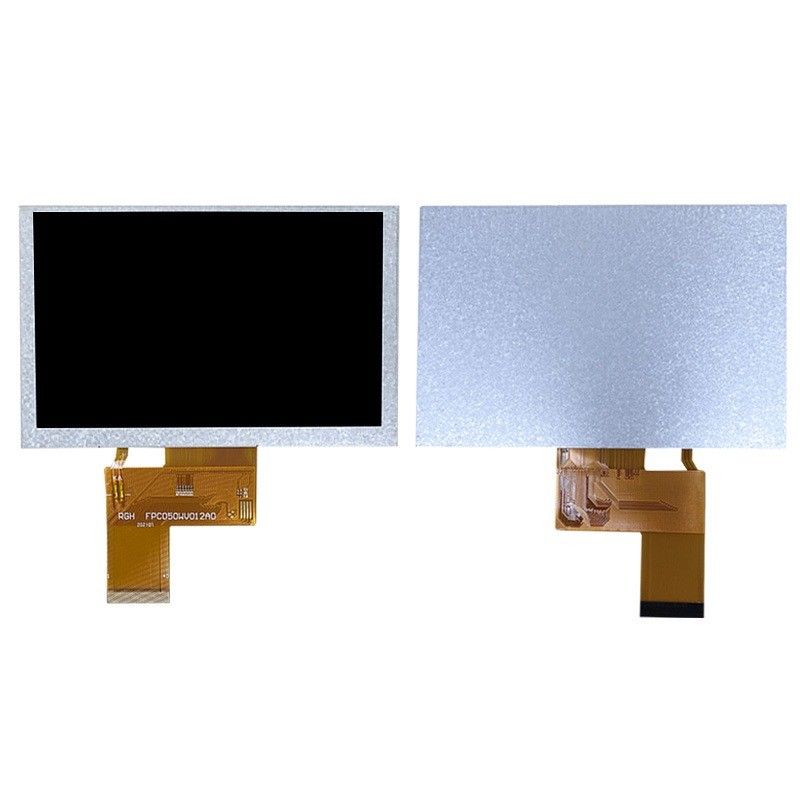

RT50WV012A

5" TFT LCD module with 800x480 resolution for standard supply or customized display assemblies.

Format 5" TFT LCD module

Form Wide rectangle

Resolution 800x480

Interface RGB 24BIT

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT50WV012A
Screen size: 5"
Display form: Wide rectangle
Resolution: 800x480
Display mode: Transmissive TFT
Interface: RGB 24BIT
Brightness: 650cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 120.70(W)×75.80(H)×2.8(T)mm
Active area: 108.00(W)×64.80(H)mm
Driver IC: ST7262
Response time: 30ms
Contrast ratio: 1500
Backlight: 12LEDS
Pixel pitch: 800(RGB)×480
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
