3.6-5.0 inch

RTO392001A

3.92" AMOLED module with 1080x1240 resolution for standard supply or customized display assemblies.

Format 3.92" AMOLED module

Form Portrait rectangle

Resolution 1080x1240

Interface MIPI 4LANE

Touch NO

Compare catalog

RTO392001A display module

Core specification

Engineering snapshot.

Model: RTO392001A
Screen size: 3.92"
Display form: Portrait rectangle
Resolution: 1080x1240
Display mode: AMOLED
Interface: MIPI 4LANE
Brightness: 500cd/㎡
Touch: NO
Temperature: -30℃~85℃
Viewing direction: All o'clock
Outline dimension: 93.1×69.3×1.65mm
Active area: 65.448(W)×75.144(H)mm
Driver IC: CH13726A
Touch IC: FT3519
Pixel pitch: 1080×1240
Pixel configuration: Rectangle
Display color: 16.7M

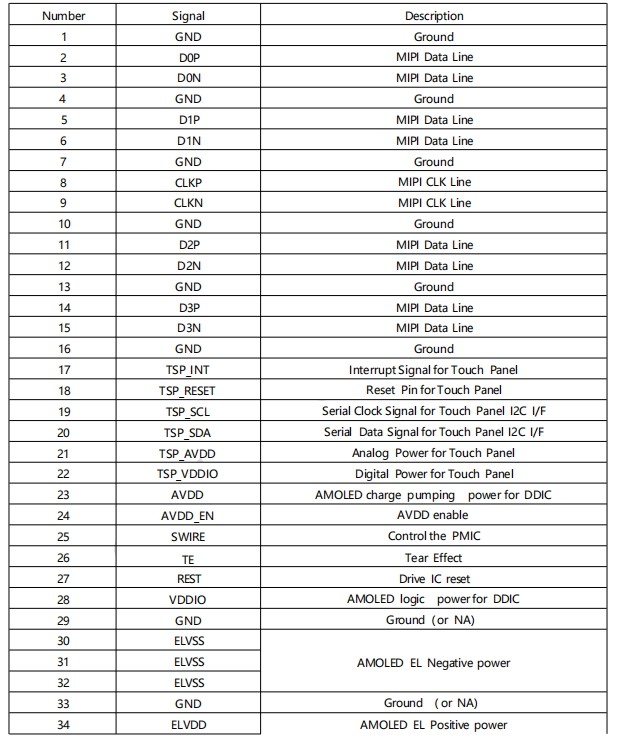

Pin count: 38pins
Logic voltage: 2.5v~3.6V

Product views

Front and back module views.

RTO392001A Front view

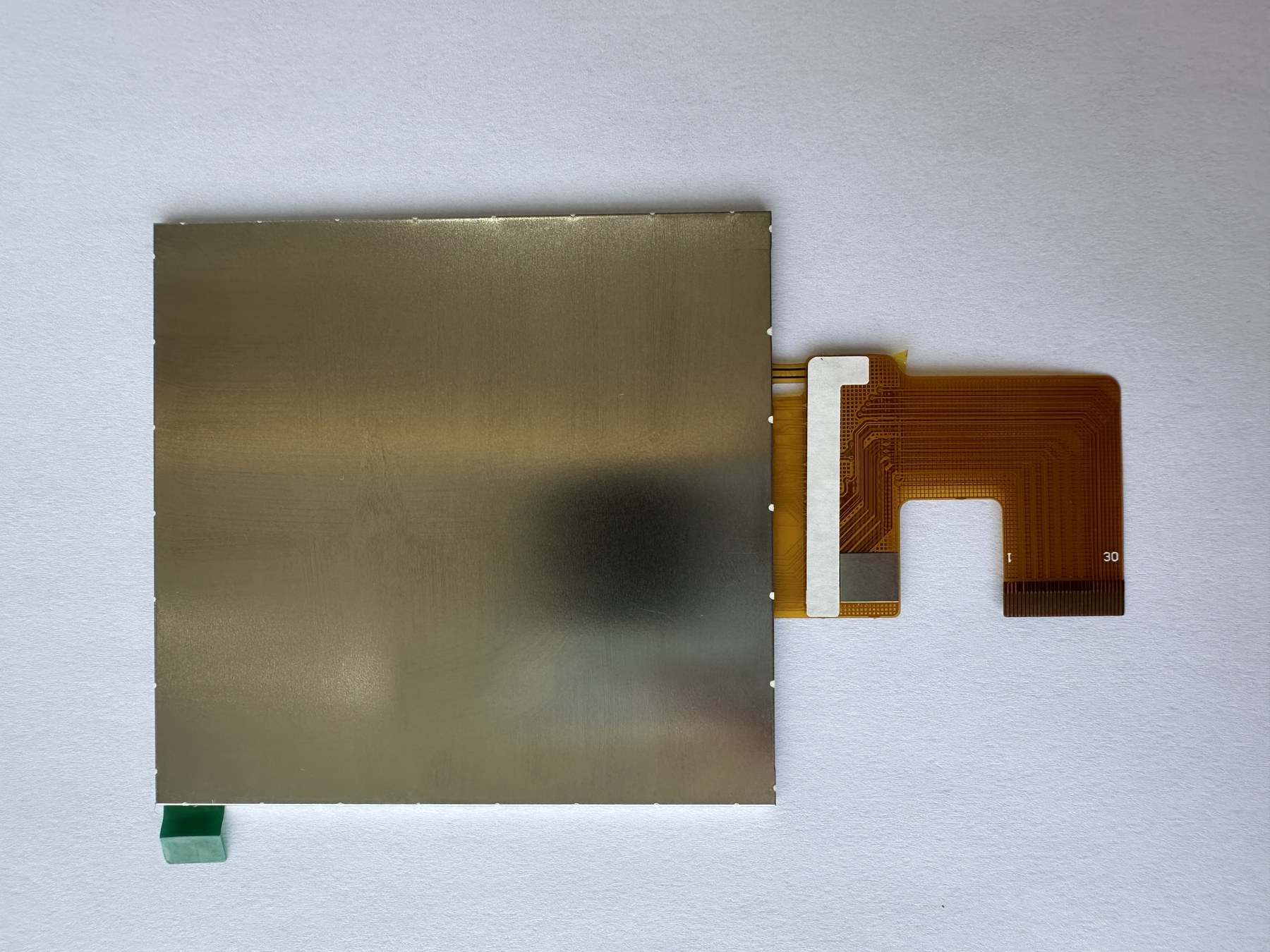

RTO392001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
