E-paper displays

SE0213N01-A0

2.13" E-paper with 122x250 resolution for standard supply or customized display assemblies.

Format 2.13" E-paper

Form E-paper

Resolution 122x250

Interface SPI

Compare catalog

SE0213N01-A0 display module

Core specification

Engineering snapshot.

Model: SE0213N01-A0
Screen size: 2.13"
Display form: E-paper
Resolution: 122x250
Display mode: reflective TFT
Interface: SPI
Temperature: 0℃~50℃
Viewing direction: All o'clock
Outline dimension: 29.20(H)×59.20(V)×1.14(T)mm
Active area: 23.70(H)×48.55(V)mm
Pixel pitch: 122(H)×250(V)
Pixel configuration: Rectangle
Display color: 1-bit black/white
Weight: 4.1g
Pin count: 24pins
Logic voltage: 2.4V~3.6V
Power: 12mW

Product views

Front and back module views.

SE0213N01-A0 Front view

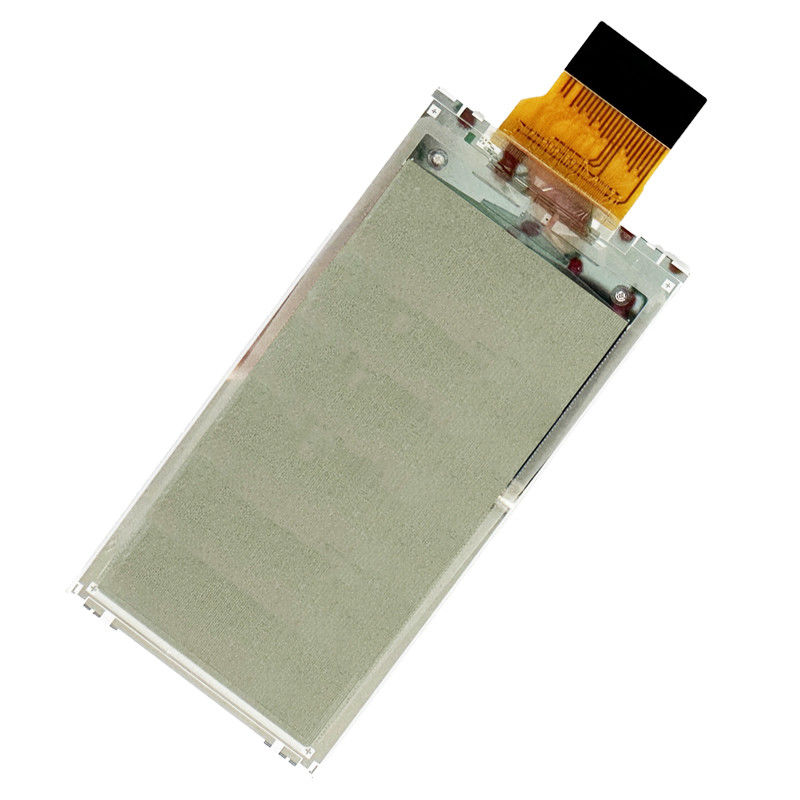

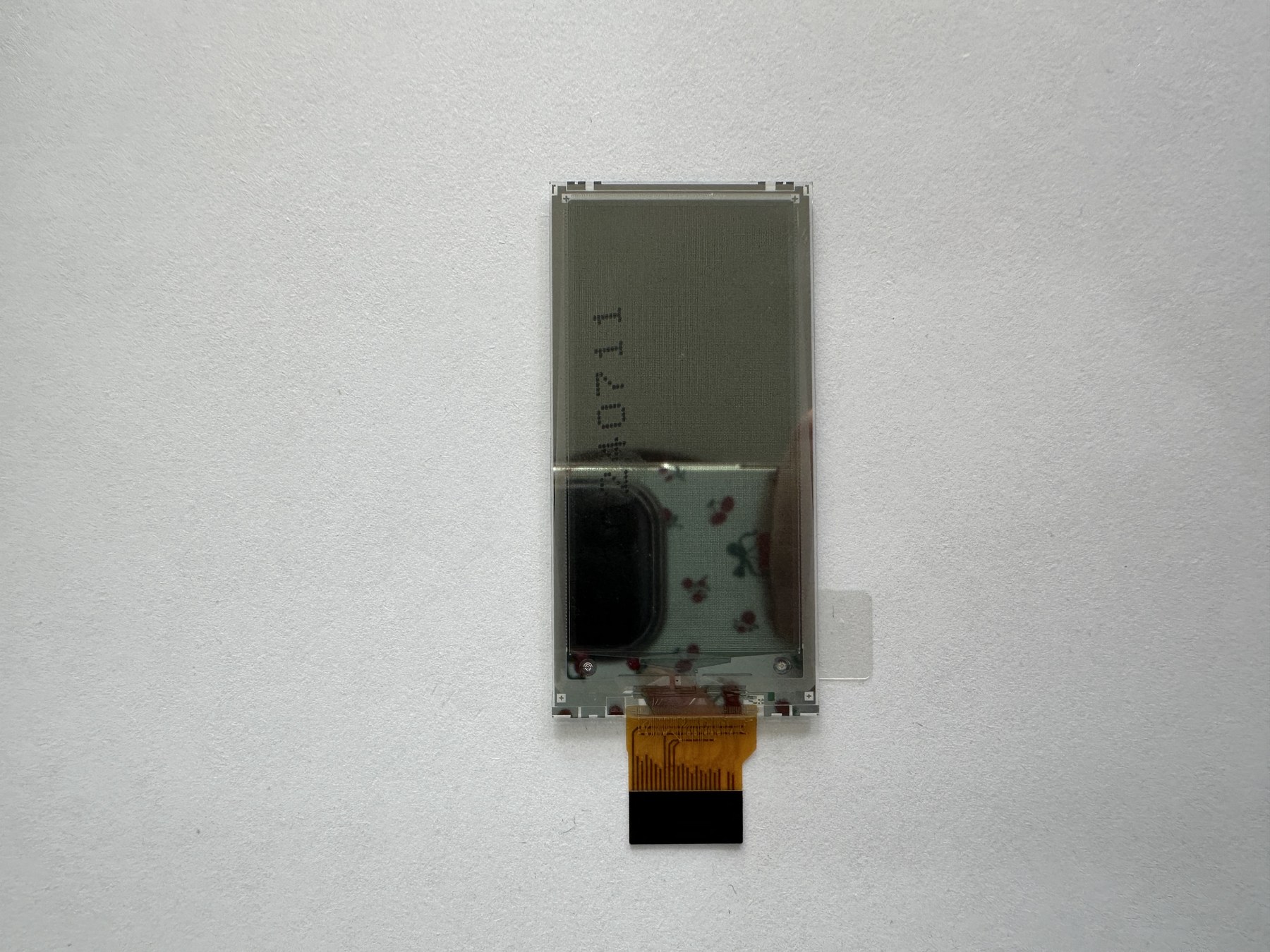

SE0213N01-A0 Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
