E-paper displays

RSE0420A01-A

4.2" E-paper with 400x300 resolution for standard supply or customized display assemblies.

Format 4.2" E-paper

Form E-paper

Resolution 400x300

Interface SPI

Touch No

Compare catalog

RSE0420A01-A display module

Core specification

Engineering snapshot.

Model: RSE0420A01-A
Screen size: 4.2"
Display form: E-paper
Resolution: 400x300
Display mode: Pure Reflective
Interface: SPI
Touch: No
Temperature: 0℃~50℃
Viewing direction: All o'clock
Outline dimension: 91(H)×77(V)×1.34(D)mm
Active area: 84.80×63.60mm
Response time: 2800ms
Contrast ratio: 10
Pixel pitch: 400(H)×300(V) Pixels
Pixel configuration: Square
Display color: White/Black
Weight: 18g
Pin count: 24pins
Logic voltage: 2.4V~3.6V
Power: 45mW

Product views

Front and back module views.

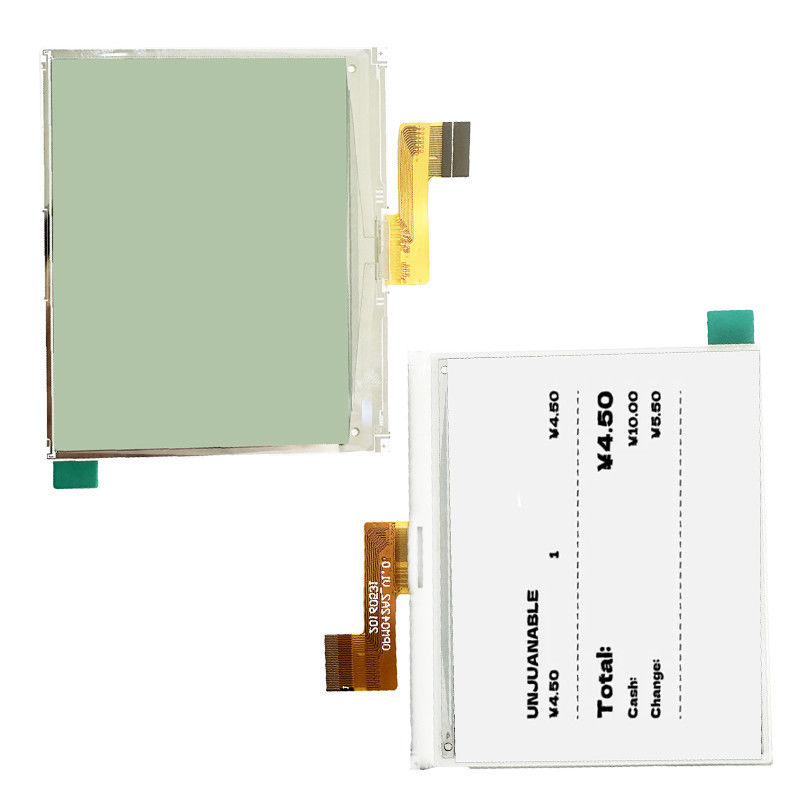

RSE0420A01-A Front view

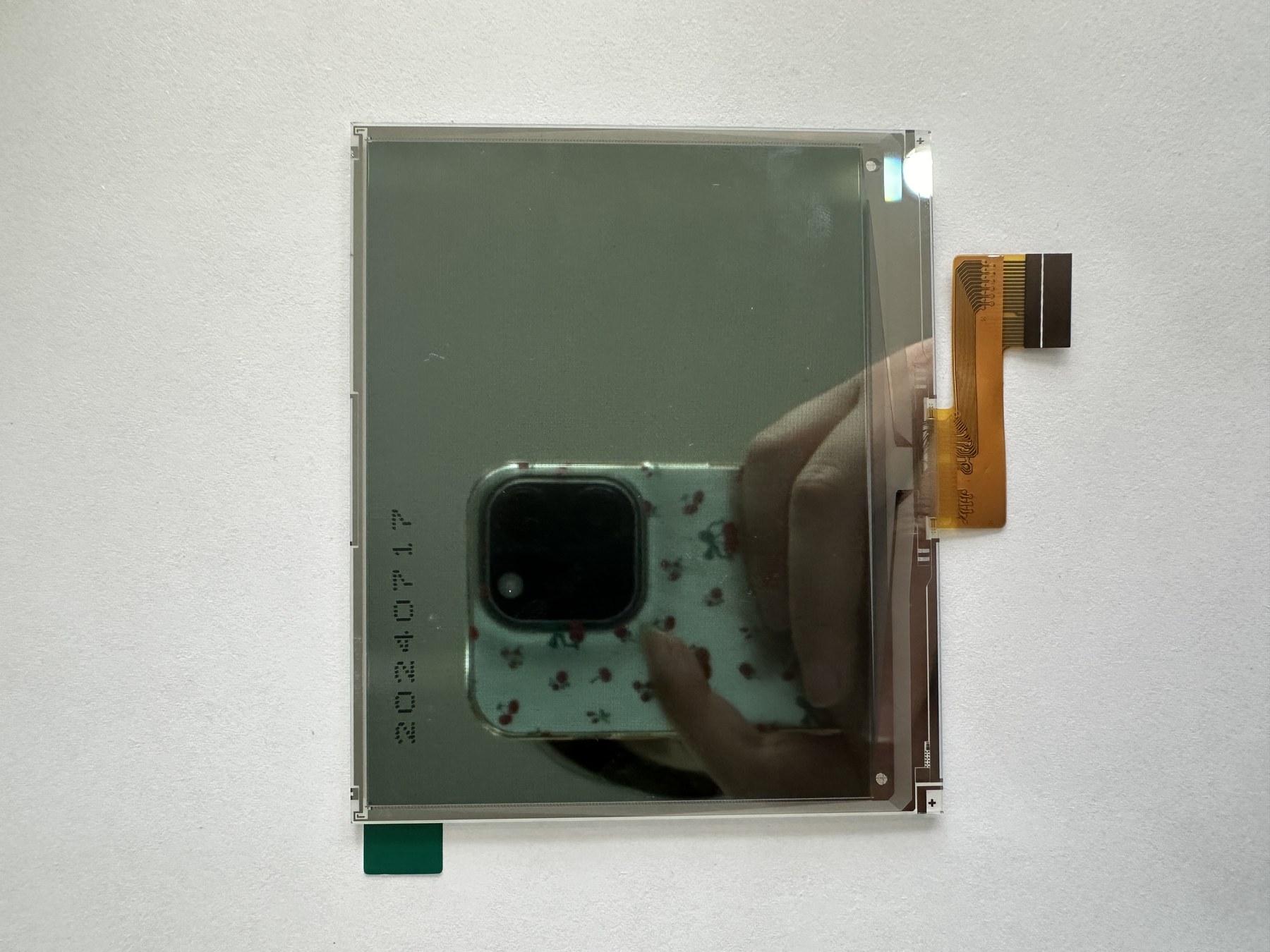

RSE0420A01-A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
