E-paper displays

RSE0420N02-A0

4.2" E-paper with 400x300 resolution for standard supply or customized display assemblies.

Format 4.2" E-paper

Form E-paper

Resolution 400x300

Interface SPI

Touch No

Compare catalog

RSE0420N02-A0 display module

Core specification

Engineering snapshot.

Model: RSE0420N02-A0
Screen size: 4.2"
Display form: E-paper
Resolution: 400x300
Display mode: Pure Reflective
Interface: SPI
Brightness: White reflectance 30%~35%
Touch: No
Temperature: 0℃~40℃
Viewing direction: All o'clock
Outline dimension: 91.00(H)×77.00(V)×1.15(D)mm
Active area: 84.8(H)×63.6(V)mm
Driver IC: SSD1683
Contrast ratio: 15
Pixel pitch: 400(H)×300(V)
Pixel configuration: Square
Display color: White/Black
Weight: 15±0.5g
Pin count: 24pins
Logic voltage: 2.5V~3.7V

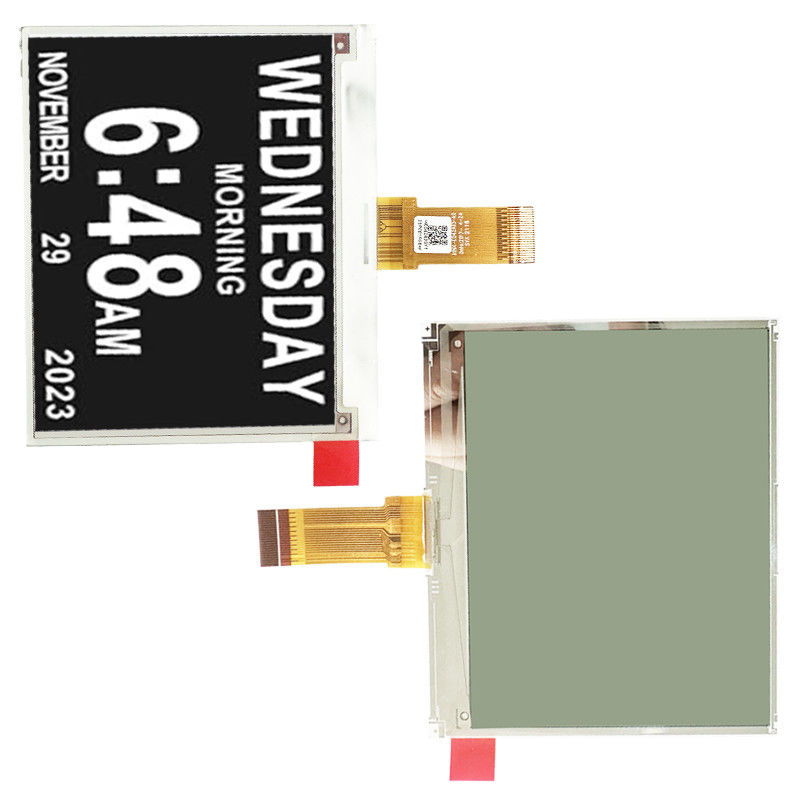

Product views

Front and back module views.

RSE0420N02-A0 Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
