Sub-1 inch

RT096019I

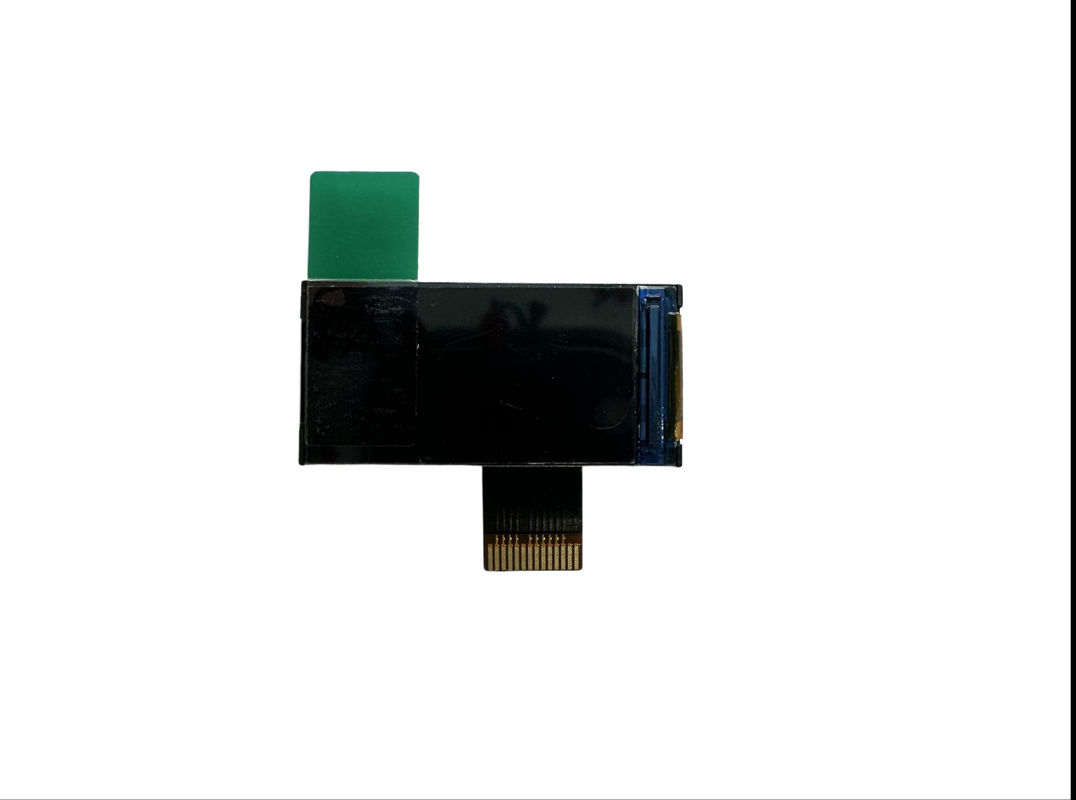

0.96" TFT LCD module with 80x160 resolution for standard supply or customized display assemblies.

Format 0.96" TFT LCD module

Form Wide rectangle

Resolution 80x160

Interface SPI

Touch NO

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT096019I
Screen size: 0.96"
Display form: Wide rectangle
Resolution: 80x160
Display mode: Transmissive TFT
Interface: SPI
Brightness: 550 cd/m²
Touch: NO
Temperature: -20°C to 70°C operating
Viewing direction: All o'clock
Outline dimension: 13.50 (W) X27.95(H) X2.0(T)
Active area: 10.80(W) X21.70 (H)
Driver IC: ST7735S
Response time: 35 ms
Contrast ratio: 500
Backlight: LED
Pixel pitch: 80*160
Pixel configuration: Rectangle
Display color: 262K
Pin count: 14pins
Logic voltage: 2.5V-4.8V
Power: 70 mW typical

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
