1.31-1.54 inch

RT145QV001A

1.45" TFT LCD module with 240x320 resolution for standard supply or customized display assemblies.

Format 1.45" TFT LCD module

Form Portrait rectangle

Resolution 240x320

Interface MCU 8-bit

Touch No

Compare catalog

RT145QV001A display module

Core specification

Engineering snapshot.

Model: RT145QV001A
Screen size: 1.45"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: Transmissive TFT
Interface: MCU 8-bit
Brightness: 320 cd/m²
Touch: No
Temperature: -20°C to 70°C
Viewing direction: 6 o'clock
Outline dimension: 25.90 × 35.97 × 1.45 mm
Active area: 22.10 × 29.47 mm
Driver IC: ST7789V
Response time: 35 ms
Contrast ratio: 500
Backlight: LED
Pixel pitch: 240(RGB) × 320
Pixel configuration: Rectangle
Display color: 262K
Pin count: 22 pins
Logic voltage: 2.5~3.3 V

Product views

Front and back module views.

RT145QV001A Front view

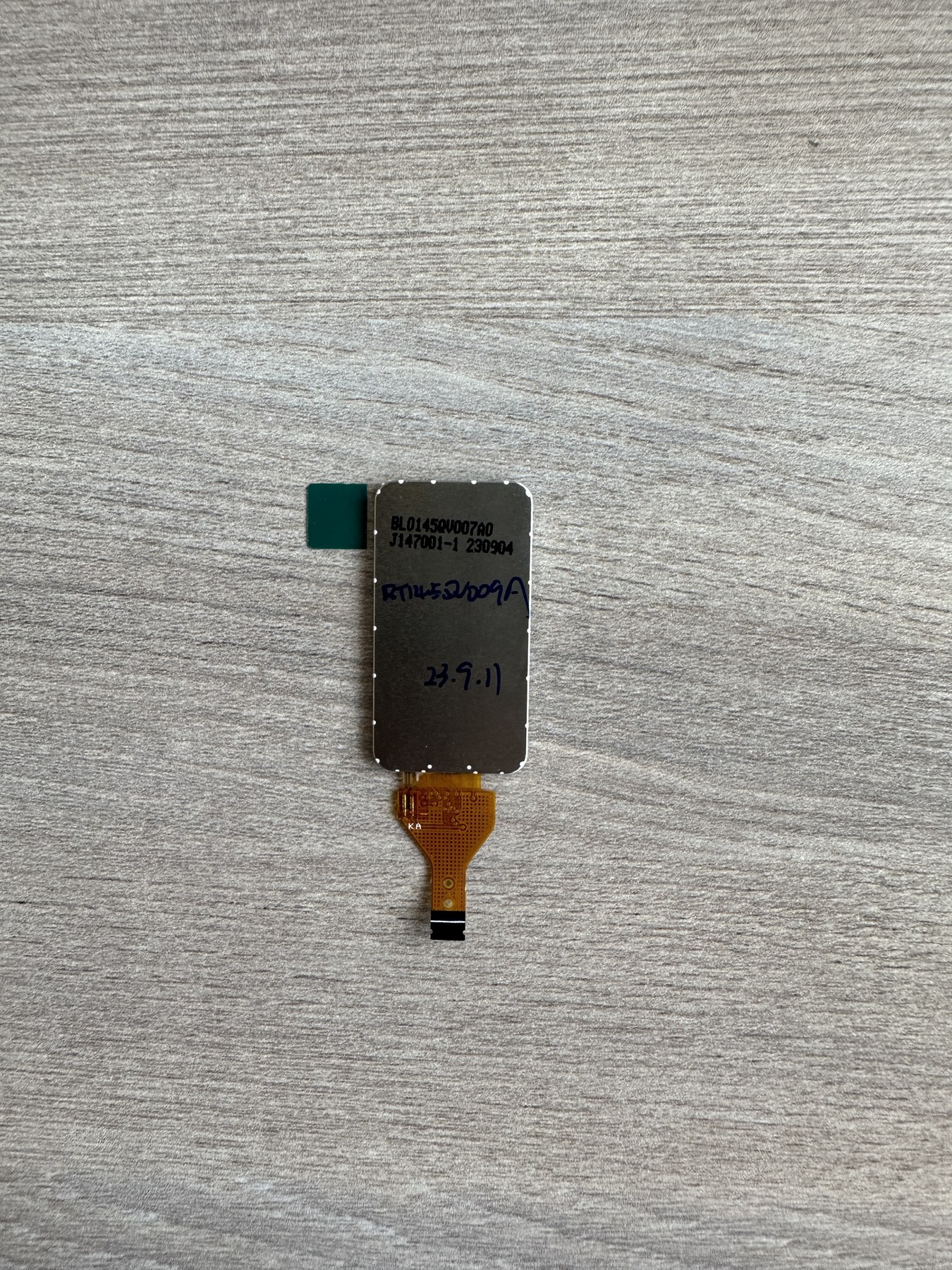

RT145QV001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
