RT154029B

1.54" TFT LCD module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.54" TFT LCD module

Form Square

Resolution 240x240

Interface SPI

Touch No

Compare catalog

RT154029B display module

Core specification

Engineering snapshot.

Model: RT154029B
Screen size: 1.54"
Display form: Square
Resolution: 240x240
Display mode: Transmissive TFT
Interface: SPI
Brightness: 500 cd/㎡
Touch: No
Temperature: -20 C to 70 C operating
Viewing direction: All o'clock
Outline dimension: 31.52 (W) X33.72 (H) X1.95(T)
Active area: 27.72(W) X27.72 (H)
Driver IC: ST7789V3
Response time: 30 ms
Contrast ratio: 900
Backlight: LED
Pixel pitch: 240*240
Pixel configuration: square
Display color: 262K
Pin count: 12 pins
Logic voltage: 2.5–3.3V

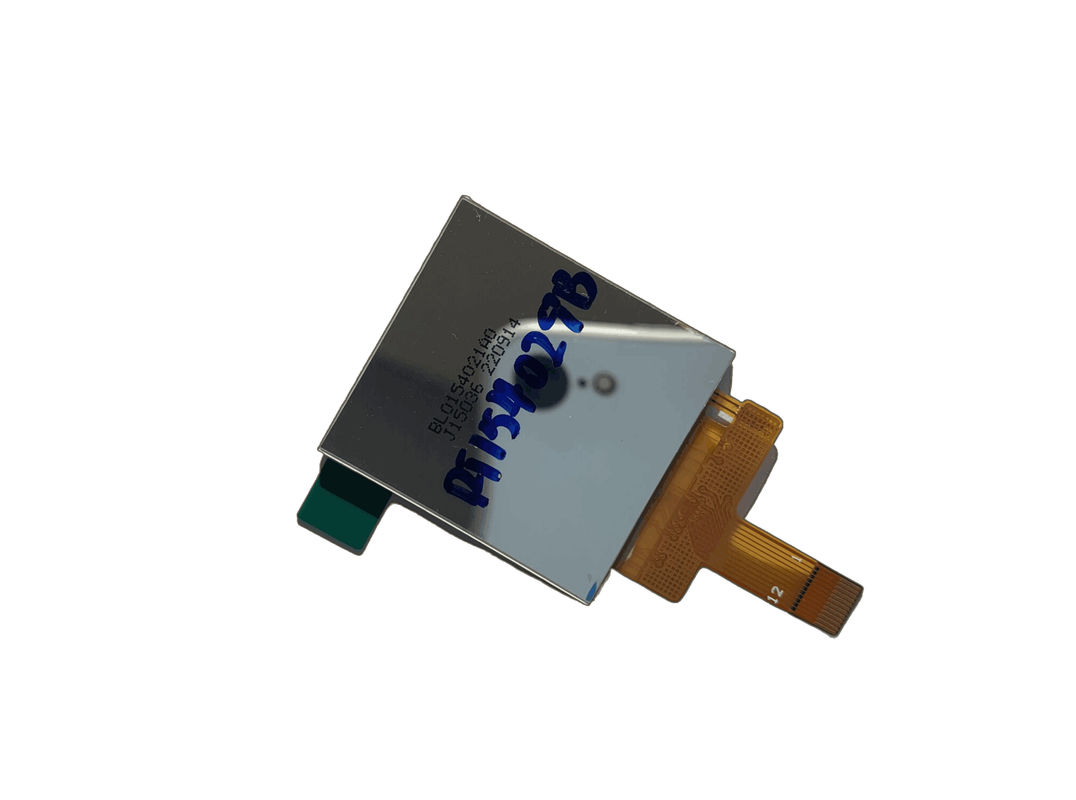

Product views

Front and back module views.

RT154029B Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
