3.6-5.0 inch

RT40HD005C

3.95" TFT LCD module with 720x720 resolution for standard supply or customized display assemblies.

Format 3.95" TFT LCD module

Form Square

Resolution 720x720

Interface MIPI

Touch No

Compare catalog

RT40HD005C display module

Core specification

Engineering snapshot.

Model: RT40HD005C
Screen size: 3.95"
Display form: Square
Resolution: 720x720
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 680cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: ALL O'LCOK
Outline dimension: 74.83(H)×78.98(V)×2.11(T)mm
Active area: 71.93(H)×71.93(V)mm
Driver IC: ST7703-V1-G5-D
Response time: 30ms
Contrast ratio: 1200
Backlight: 10LEDs
Pixel pitch: 720(RGB)×720
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.3V
Power: 700mW

Product views

Front and back module views.

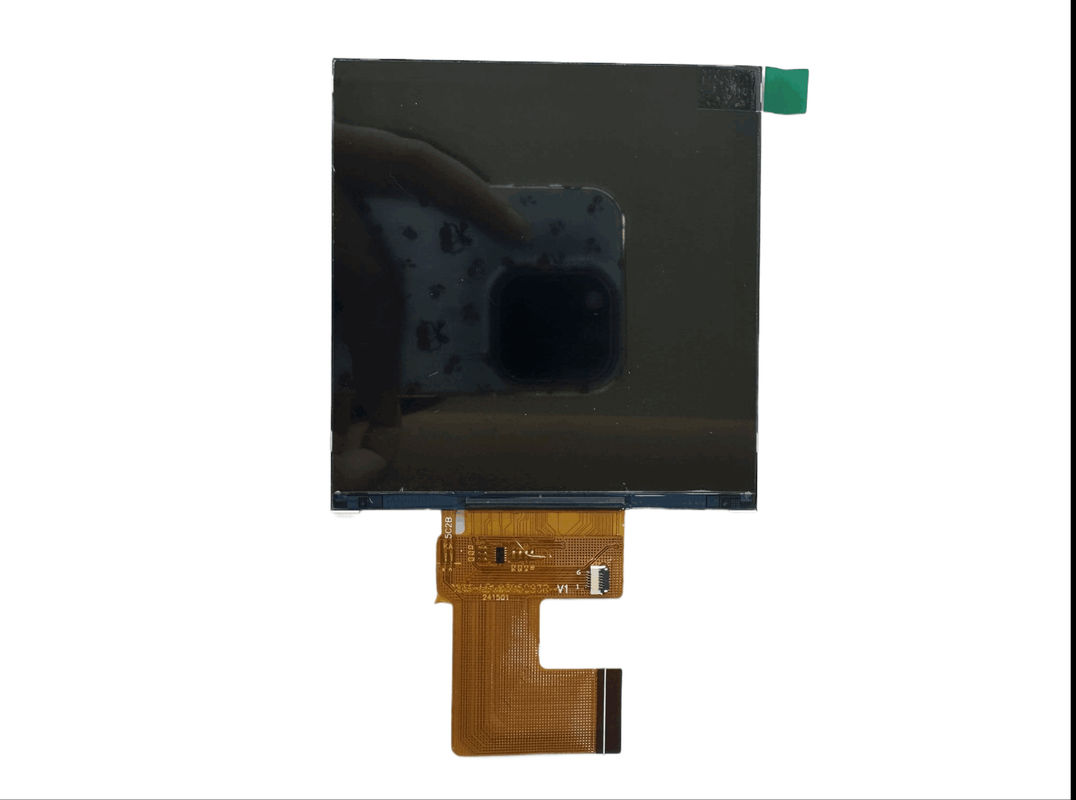

RT40HD005C Front view

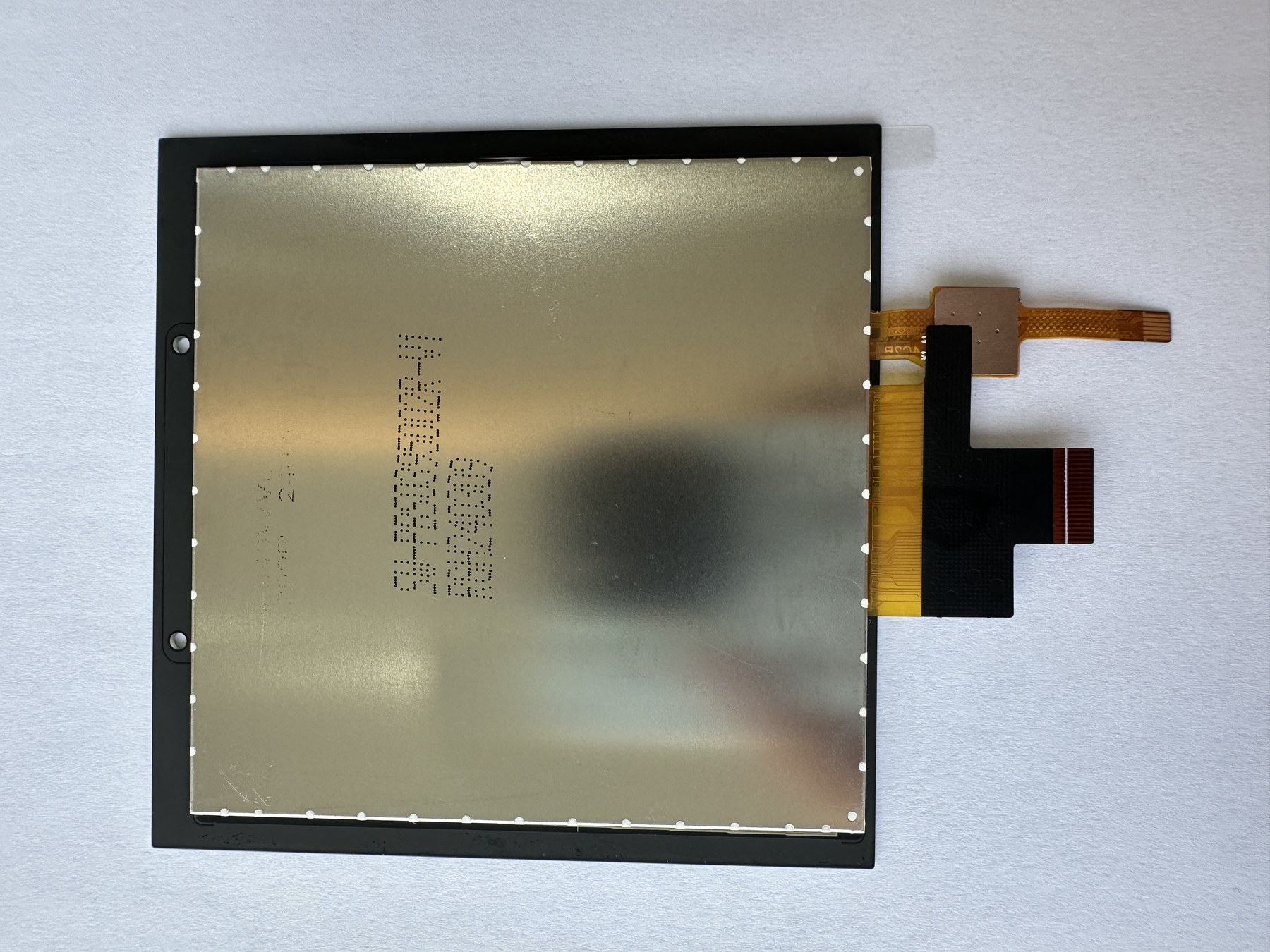

RT40HD005C Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
