RT16WV001A

1.6" TFT LCD module with 400x400 resolution for standard supply or customized display assemblies.

Format 1.6" TFT LCD module

Form Round

Resolution 400x400

Interface MIPI

Touch No

Compare catalog

RT16WV001A display module

Core specification

Engineering snapshot.

Model: RT16WV001A
Screen size: 1.6"
Display form: Round
Resolution: 400x400
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 360 cd/㎡
Touch: No
Temperature: -20 C to 70 C operating
Viewing direction: All o'clock
Outline dimension: 42.14(H) × 44.34(V) × 1.9(T) mm
Active area: 39.84(H) × 39.84(V) mm
Driver IC: ST77903
Response time: 30 ms
Contrast ratio: 1200
Backlight: LED
Pixel pitch: 400(RGB) × 400
Pixel configuration: circle
Display color: 262K
Pin count: 20 pins
Logic voltage: 2.5~3.3V
Power: 210 mW

Product views

Front and back module views.

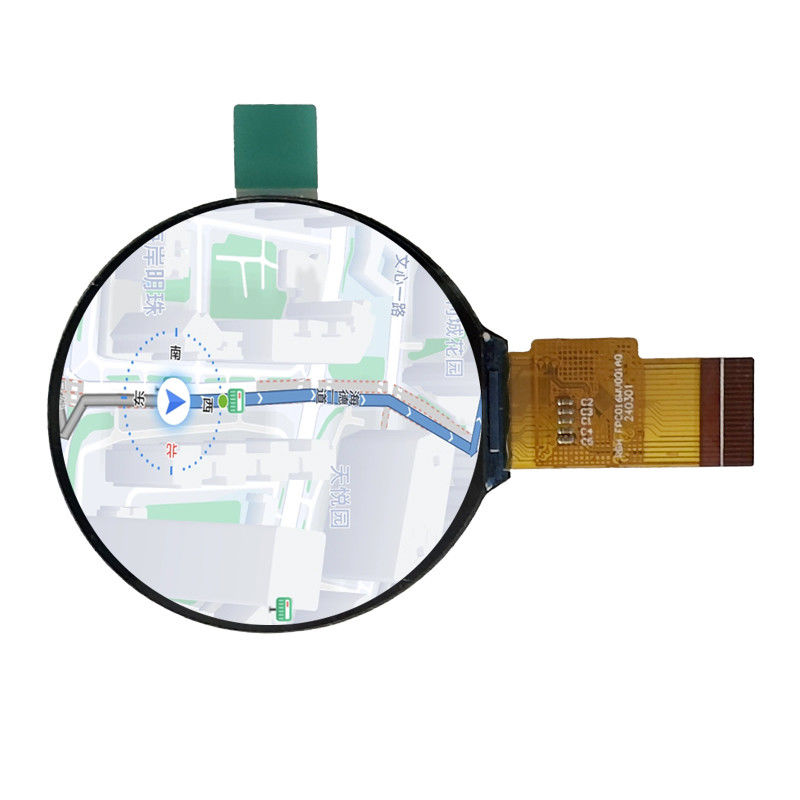

RT16WV001A Front view

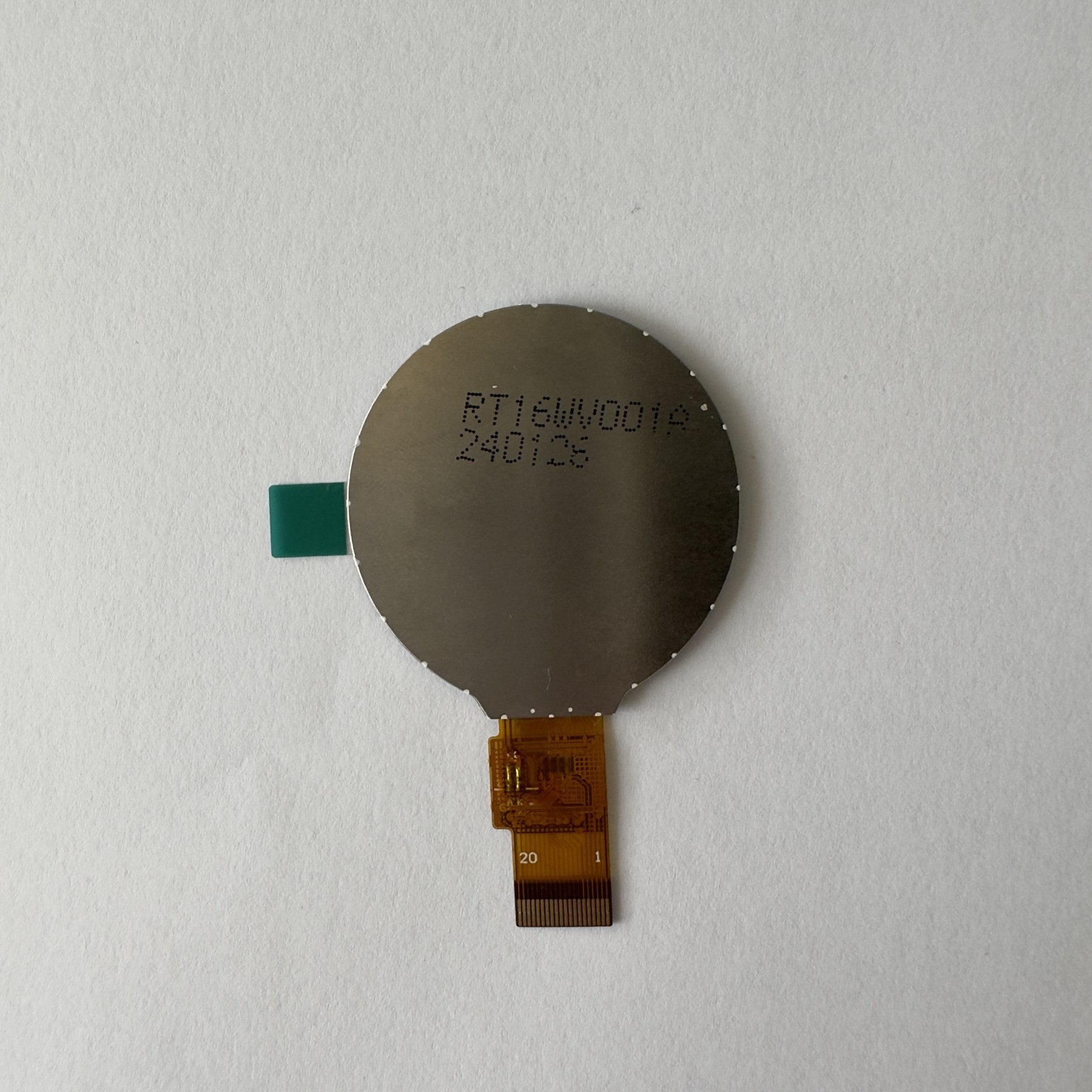

RT16WV001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
