1.6-2.0 inch

RT20VG001A

2" TFT LCD module with 480x640 resolution for standard supply or customized display assemblies.

Format 2" TFT LCD module

Form Portrait rectangle

Resolution 480x640

Interface RGB 16BIT/MIPI 2L

Touch No

Compare catalog

RT20VG001A display module

Core specification

Engineering snapshot.

Model: RT20VG001A
Screen size: 2"
Display form: Portrait rectangle
Resolution: 480x640
Display mode: Transmissive TFT
Interface: RGB 16BIT/MIPI 2L
Brightness: 700cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 34.60(H)×47.80(V)×2.1(T)mm
Active area: 30.60(H)×40.80(V)mm
Viewing area: 31.60(H)×41.80(V)mm
Driver IC: ST7701S
Response time: 30ms
Contrast ratio: 1200
Backlight: LED
Pixel pitch: 480(RGB)×640
Pixel configuration: Rectangle
Display color: 262K
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 280mW

Product views

Front and back module views.

RT20VG001A Front view

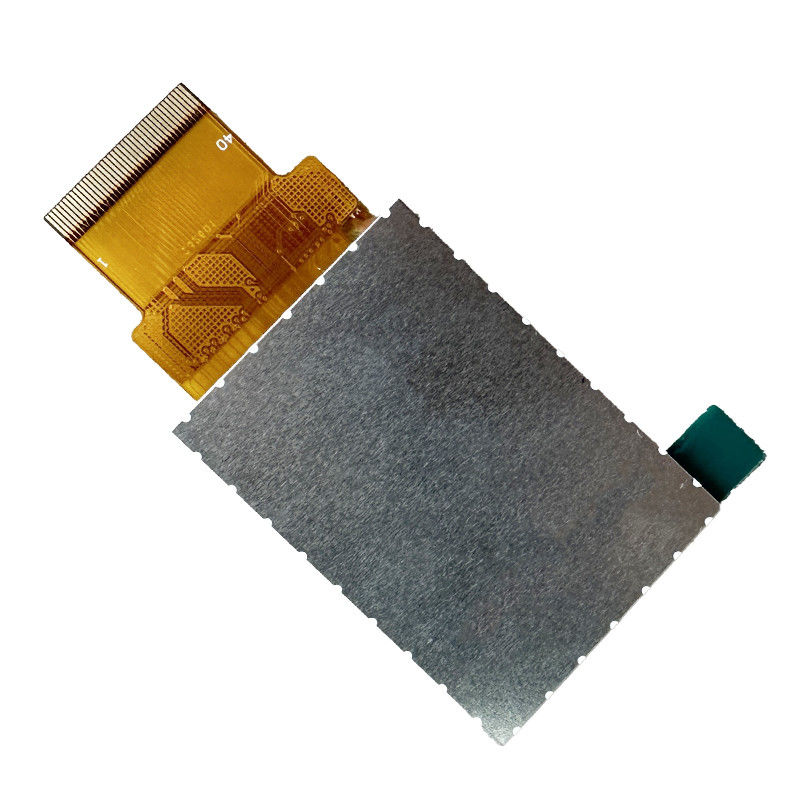

RT20VG001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
