2.8-3.5 inch

RT28VG007E

2.8" TFT LCD module with 480x640 resolution for standard supply or customized display assemblies.

Format 2.8" TFT LCD module

Form Portrait rectangle

Resolution 480x640

Interface RGB/MIPI

Touch No

Compare catalog

RT28VG007E display module

Core specification

Engineering snapshot.

Model: RT28VG007E
Screen size: 2.8"
Display form: Portrait rectangle
Resolution: 480x640
Display mode: Transmissive TFT
Interface: RGB/MIPI
Brightness: 400cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 46.90(W)×66.45(H)×2.35(T)mm
Active area: 43.20(W) X57.60 (H)
Driver IC: GC9503V
Response time: 35ms
Contrast ratio: 1000
Backlight: 6LEDS
Pixel pitch: 480(RGB)×640
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

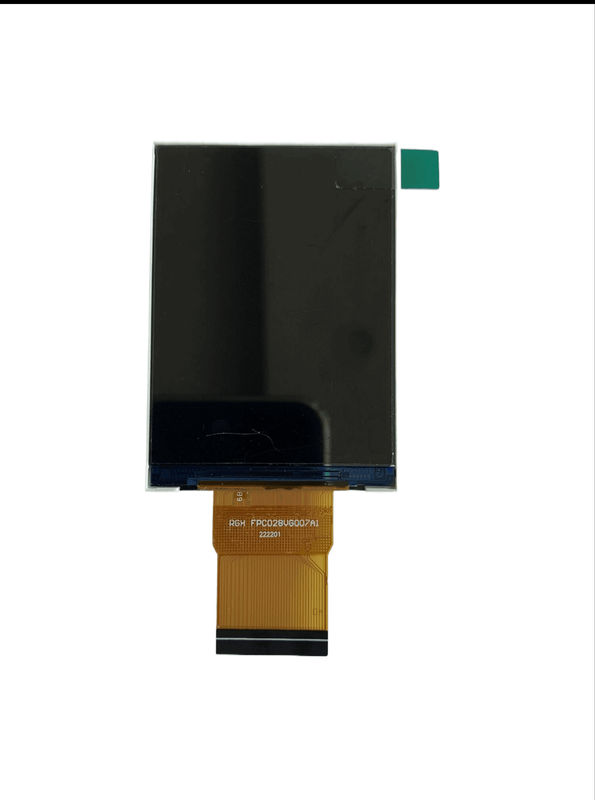

RT28VG007E Front view

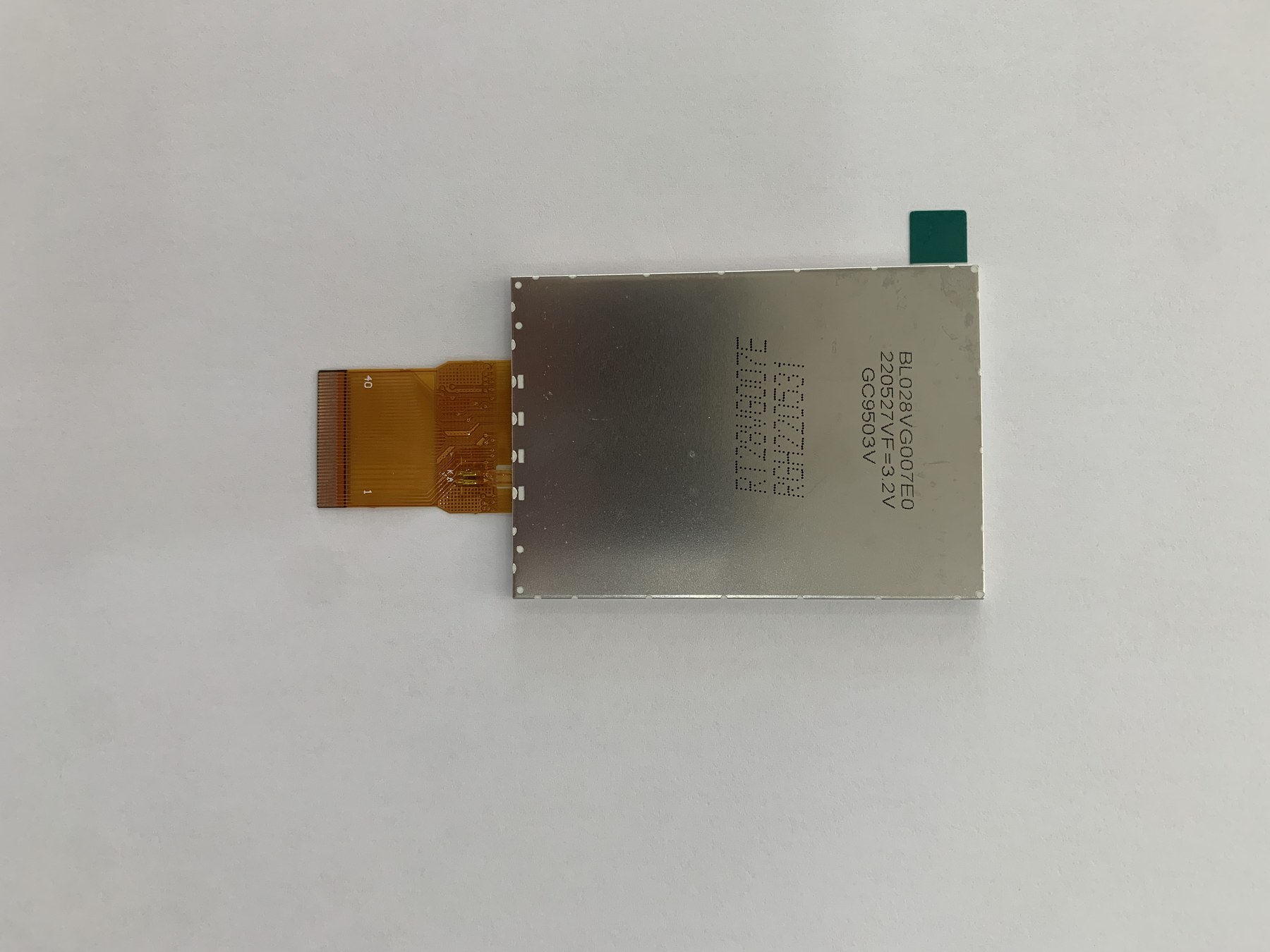

RT28VG007E Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
