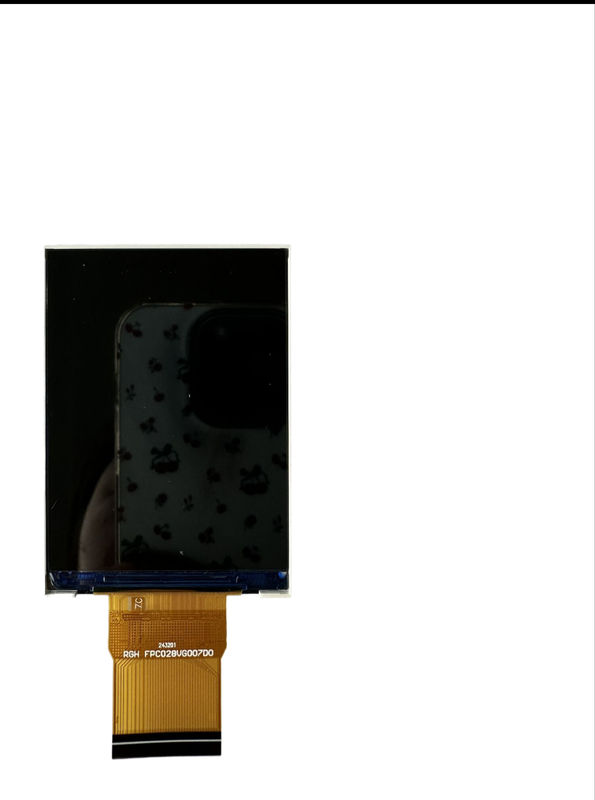

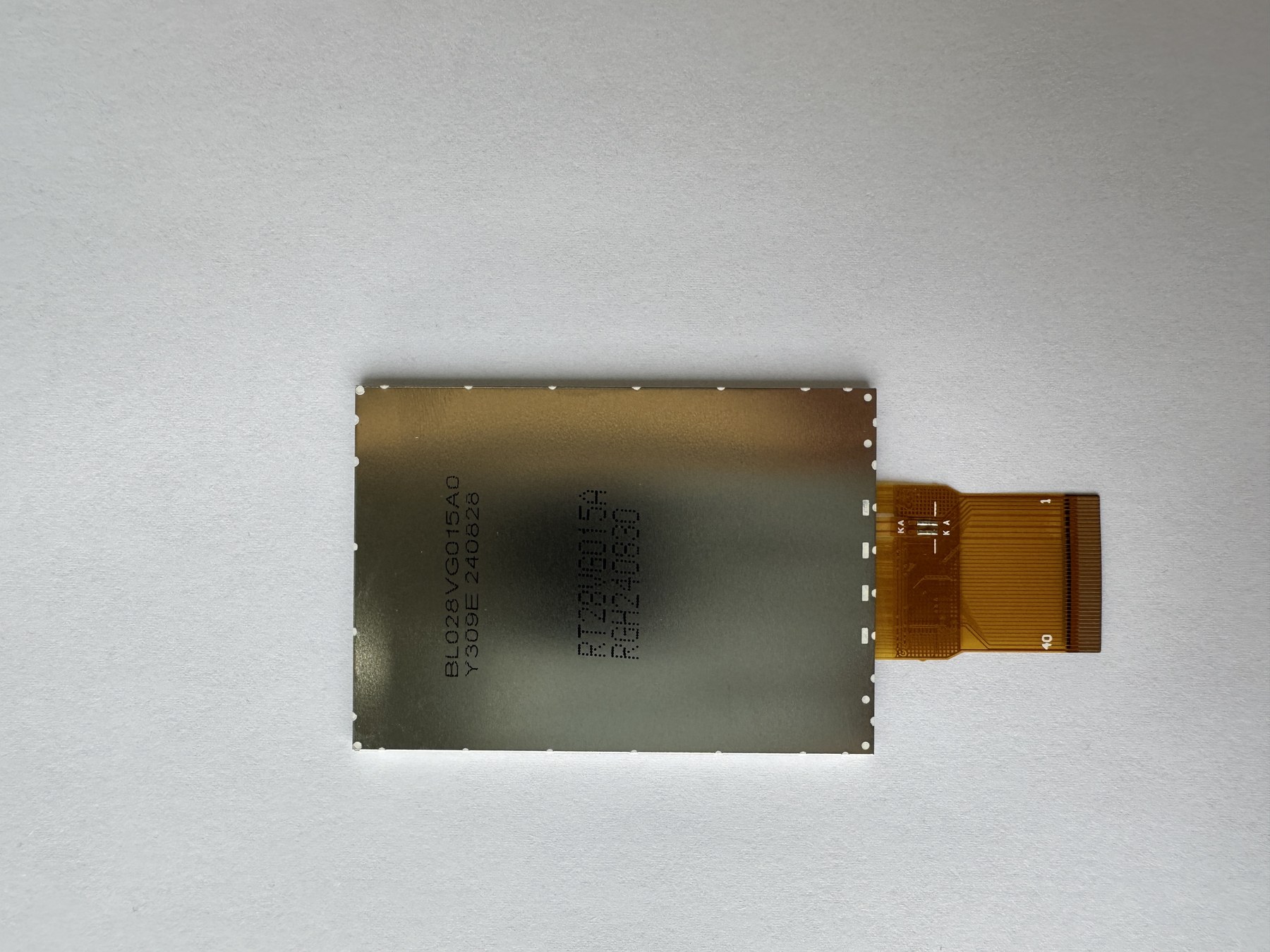

RT28VG015A 2.8" TFT LCD module

Core specification

Engineering snapshot.

Model

RT28VG015A

Screen size

2.8"

Display form

Portrait rectangle

Resolution

480x640

Display mode

Transmissive TFT

Interface

RGB/MIPI

Brightness

500cd/㎡

Touch

No

Temperature

-20℃~70℃

Viewing direction

All o'clock

Outline dimension

46.90(H)×66.55(V)×2.35(T)mm

Active area

43.20(H)×57.60(V)mm

Driver IC

ST7701S

Response time

35ms

Contrast ratio

1000

Backlight

7LEDs

Pixel pitch

480(RGB)×640

Pixel configuration

Rectangle

Display color

262K color

Pin count

40pins

Logic voltage

2.5V~3.3V
