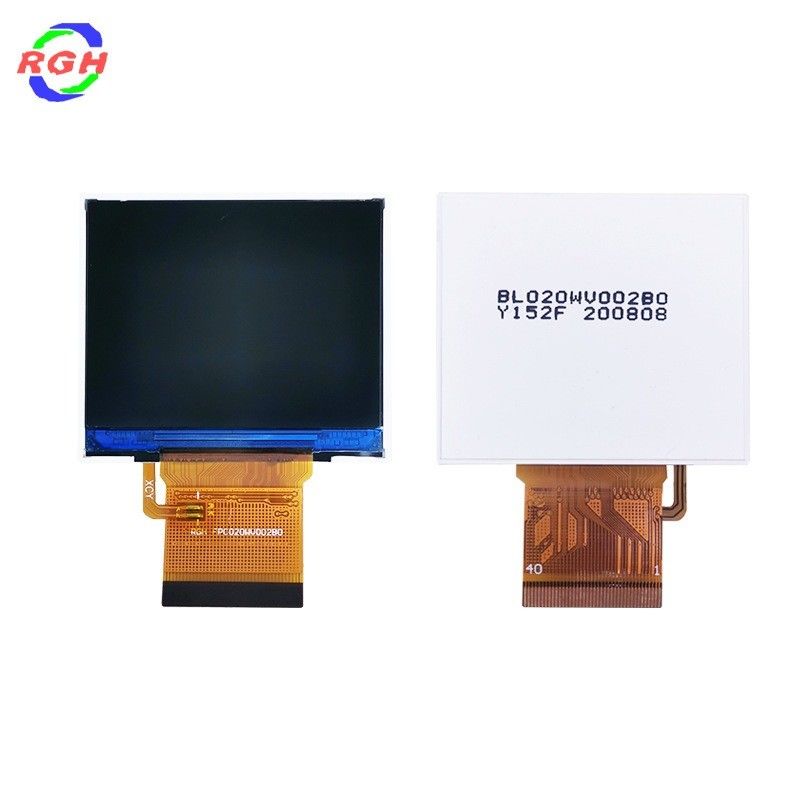

RT20WV002B 2" TFT LCD module

Core specification

Engineering snapshot.

Model

RT20WV002B

Screen size

2"

Display form

Landscape rectangle

Resolution

480x360

Display mode

Transmissive TFT

Interface

RGB 16BIT/MIPI 2L

Brightness

600cd/㎡

Touch

No

Temperature

-20℃~70℃

Viewing direction

ALL o’clock

Outline dimension

46.00(W)×40.80(H)×2.50(T)mm

Active area

40.824(W)×30.618(H)mm

Viewing area

41.80(W)×31.60(H)mm

Driver IC

ST7701S

Response time

35ms

Contrast ratio

500

Backlight

LED

Pixel pitch

480(RGB)×360

Pixel configuration

Rectangle

Display color

262K color

Pin count

40pins

Logic voltage

2.5V~3.3V
