RT20WV002D

2" TFT LCD module with 480x360 resolution for standard supply or customized display assemblies.

Format 2" TFT LCD module

Form Landscape rectangle

Resolution 480x360

Interface RGB 16BIT/MIPI 2L

Touch No

Compare catalog

RT20WV002D display module

Core specification

Engineering snapshot.

Model: RT20WV002D
Screen size: 2"
Display form: Landscape rectangle
Resolution: 480x360
Display mode: Transmissive TFT
Interface: RGB 16BIT/MIPI 2L
Brightness: 620cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: ALL o’clock
Outline dimension: 46.00(H)×40.80(V)×2.0(T)mm
Active area: 40.82(H)×30.62(V)mm
Viewing area: 41.82(H)×31.62(V)mm
Driver IC: ST7701SN-G5-1
Response time: 35ms
Contrast ratio: 1000
Backlight: LED
Pixel pitch: 480(RGB)×36
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 280mW

Product views

Front and back module views.

RT20WV002D Front view

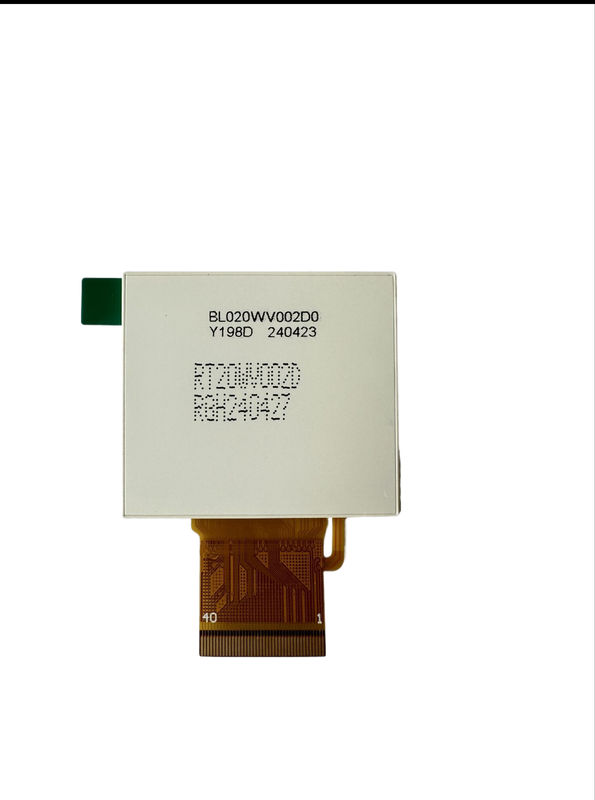

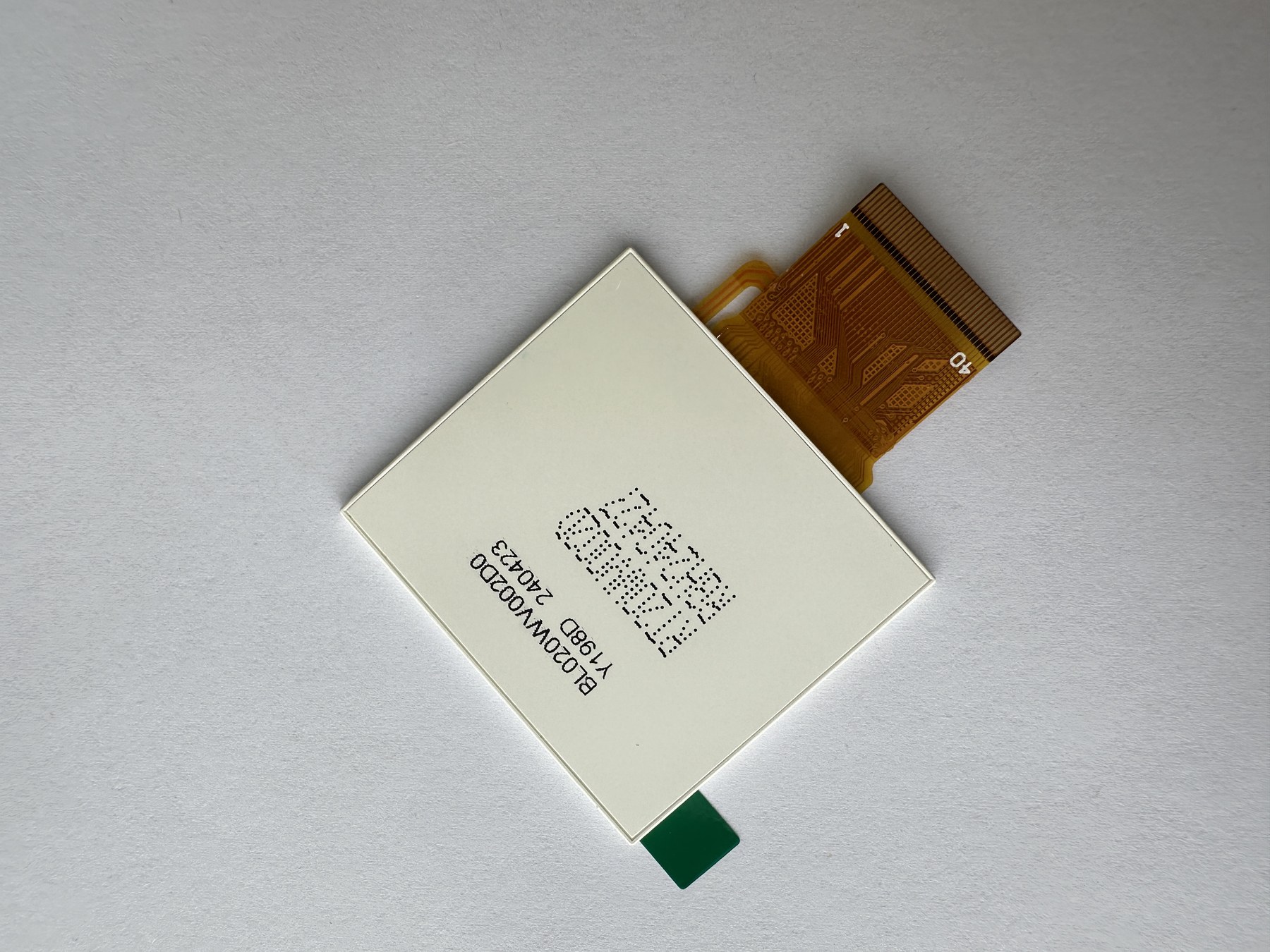

RT20WV002D Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
