2.1-2.7 inch

RT23WV005A

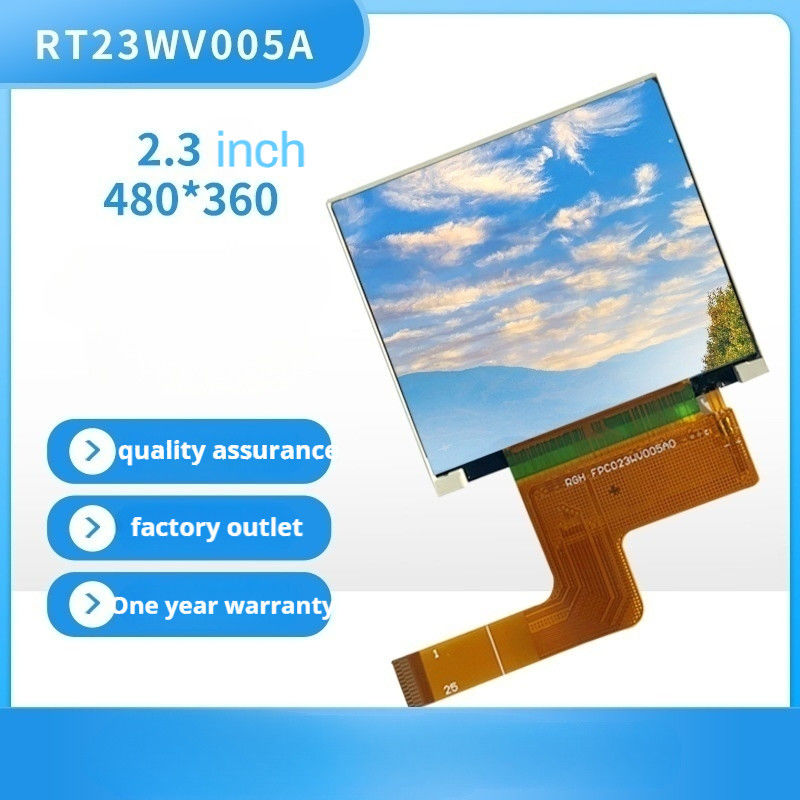

2.3" TFT LCD module with 480x360 resolution for standard supply or customized display assemblies.

Format 2.3" TFT LCD module

Form Landscape rectangle

Resolution 480x360

Interface MIPI

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT23WV005A
Screen size: 2.3"
Display form: Landscape rectangle
Resolution: 480x360
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 450cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 50.90(W)×45.80(H)×2.3(T)mm
Active area: 46.80(W)×35.10(H)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 1000
Backlight: 4LEDS
Pixel pitch: 480(RGB)×360
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 25pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

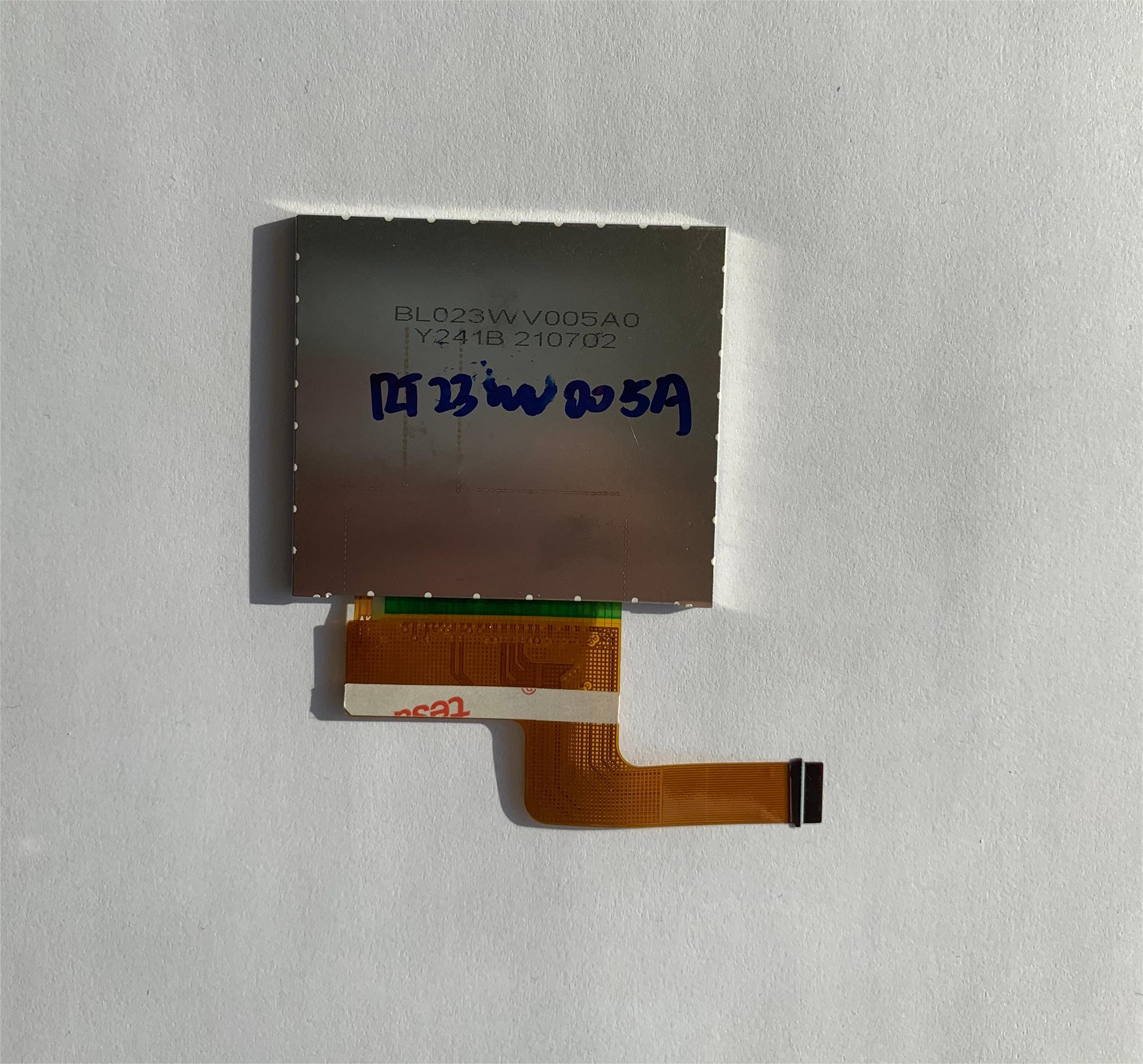

RT23WV005A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
