2.1-2.7 inch

RT24QV133A

2.4" TFT LCD module with 1920x1080 resolution for standard supply or customized display assemblies.

Format 2.4" TFT LCD module

Form Wide rectangle

Resolution 1920x1080

Interface MCU 16BIT

Compare catalog

RT24QV133A display module

Core specification

Engineering snapshot.

Model: RT24QV133A
Screen size: 2.4"
Display form: Wide rectangle
Resolution: 1920x1080
Display mode: Transreflective TFT
Interface: MCU 16BIT
Brightness: 210cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 42.72(H)×60.16(W)×2.55(T)mm
Active area: 36.72(W)×48.96(H)mm
Driver IC: ST7789V
Response time: 25ms
Contrast ratio: 300
Backlight: 4LEDS
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 45pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

RT24QV133A Front view

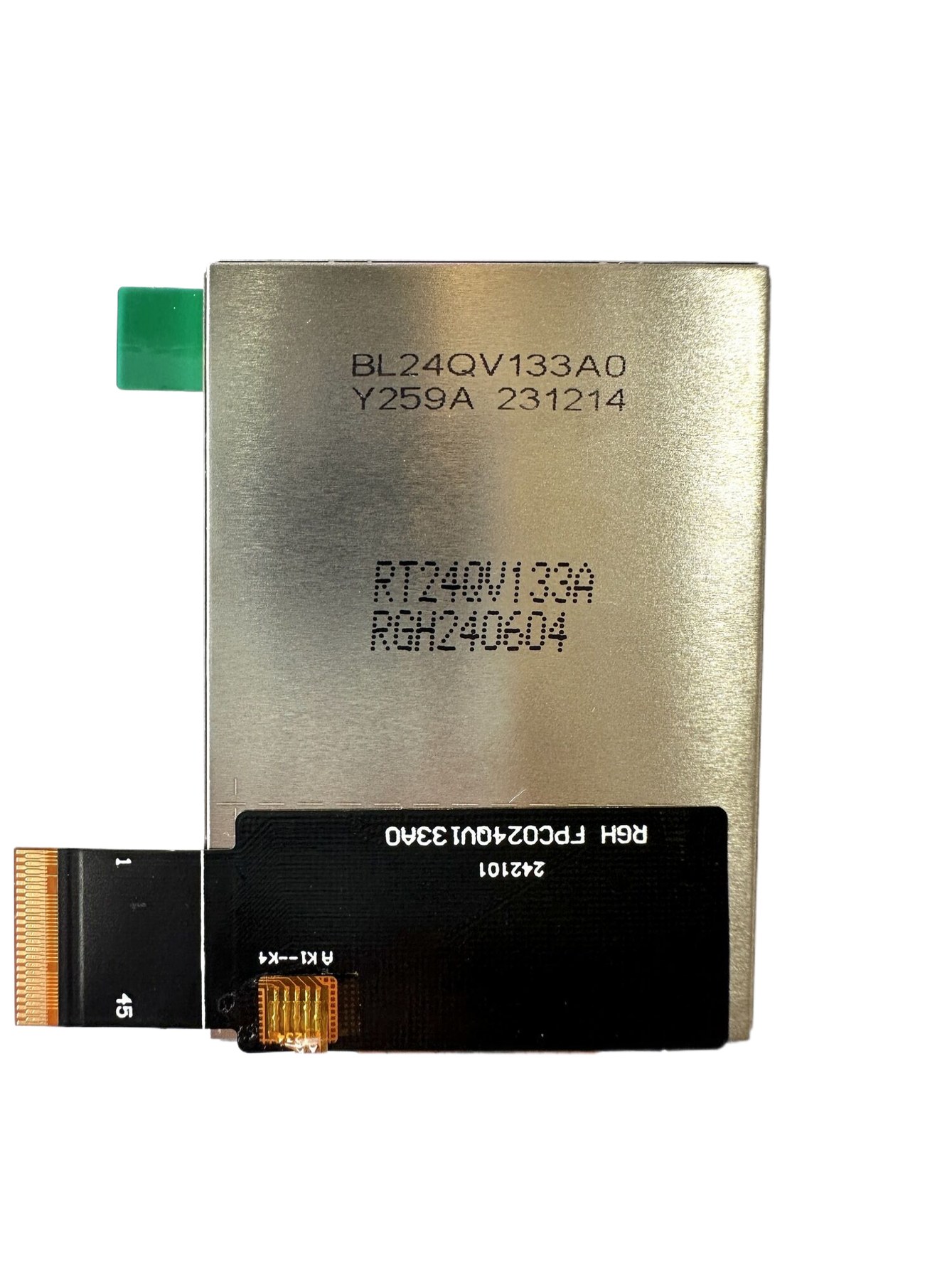

RT24QV133A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
