2.1-2.7 inch

RT27HD002A

2.7" TFT LCD module with 1280x720 resolution for standard supply or customized display assemblies.

Format 2.7" TFT LCD module

Form Wide rectangle

Resolution 1280x720

Interface LVDS

Touch No

Compare catalog

RT27HD002A display module

Core specification

Engineering snapshot.

Model: RT27HD002A
Screen size: 2.7"
Display form: Wide rectangle
Resolution: 1280x720
Display mode: Transmissive TFT
Interface: LVDS
Brightness: 810cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 63.30(H)×40.00(V)×2.05(T)mm
Active area: 59.52(H)×33.48(V)mm
Driver IC: SC5014DA-G6
Response time: 45ms
Contrast ratio: 1500
Backlight: 5LEDs
Pixel pitch: 1280(RGB)×720
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 3.0V~3.6V
Power: 350mW

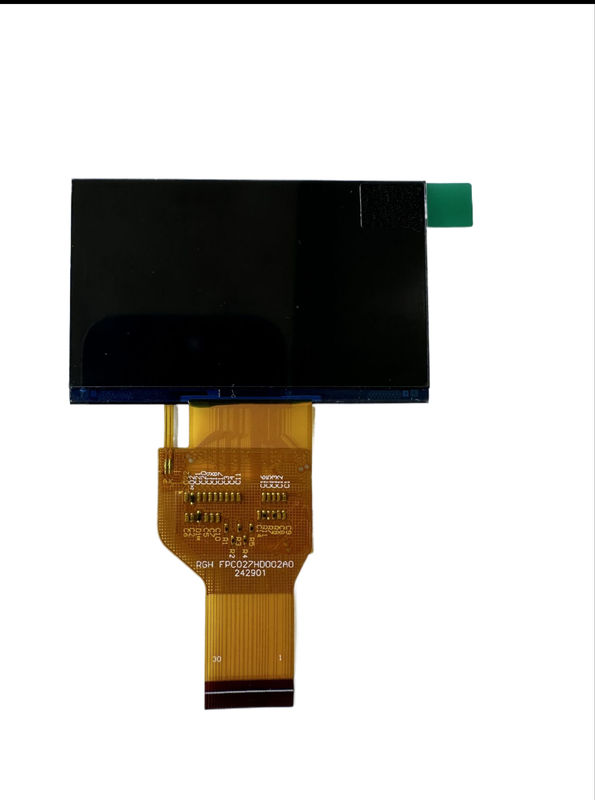

Product views

Front and back module views.

RT27HD002A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
