RT22WV005A

2.2" TFT LCD module with 480x800 resolution for standard supply or customized display assemblies.

Format 2.2" TFT LCD module

Form Wide rectangle

Resolution 480x800

Interface MIPI

Compare catalog

RT22WV005A display module

Core specification

Engineering snapshot.

Model: RT22WV005A
Screen size: 2.2"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 1100cd/㎡
Temperature: -10℃~60℃
Viewing direction: All o'clock
Outline dimension: 32.20(H)×54.10(V)×2.10(T)mm
Active area: 28.80(H)×48.00(V)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 1000
Backlight: 4LEDS
Pixel pitch: 480(RGB)×800
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 31pins
Logic voltage: 2.5V~3.6V
Power: 280mW

Product views

Front and back module views.

RT22WV005A Front view

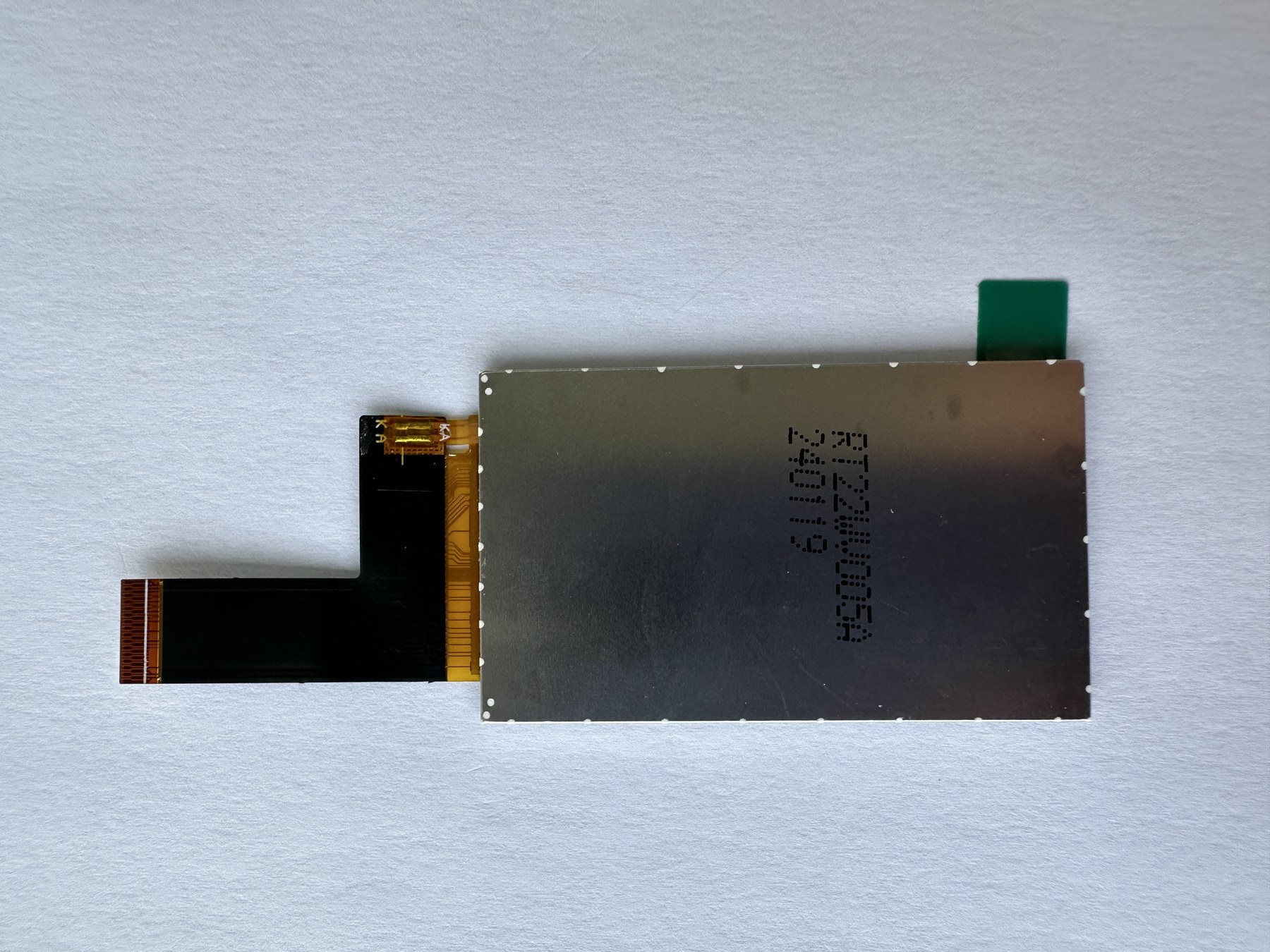

RT22WV005A Back view
